Product Description
2.0m3/h 15ppm Oily Water Separator
Product Introduction:

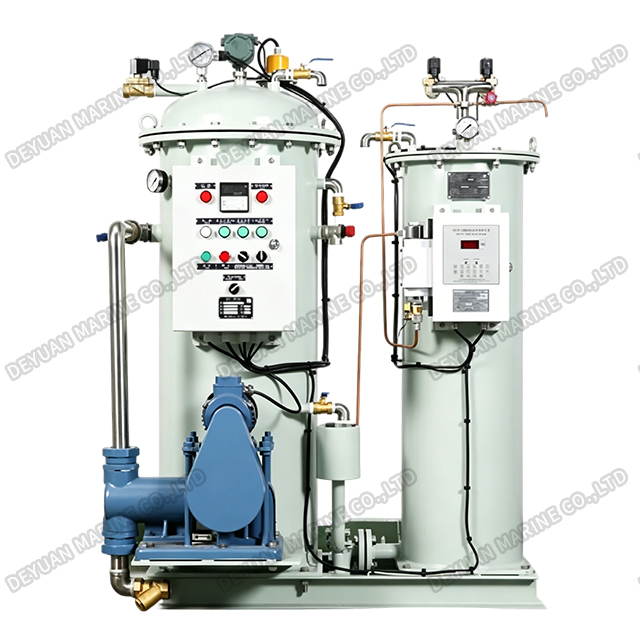

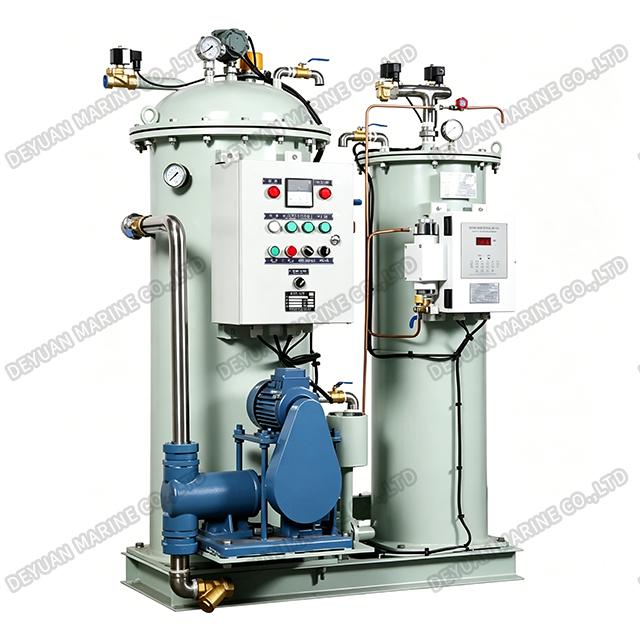

The Integrated DY-2.0 Type 15ppm Bilge Water Separator is the flagship high-capacity solution in the DY series, engineered to deliver a robust nominal throughput of 2.0 m³/h while incorporating a true all-in-one integrated design that redefines installation convenience and operational efficiency. Developed in strict accordance with IMO MEPC.107(49) – the Revised Guidelines and Specifications for Pollution Prevention Equipment for Machinery Space Bilges of Ships – this model is purpose-built for the world's largest and most demanding vessels, including ultra-large container ships (ULCS), very large crude carriers (VLCCs), ultra-large crude carriers (ULCCs), mega-cruise ships, and major naval auxiliary vessels, where high-volume bilge water generation and limited engine-room space demand both capacity and compactness.
Selection Guide for Bilge Water Separator:
| Model | Capacity | Maximum Vessel Gross Tonnage |
| DY-2.0 | 2.0m³/h | 40000GT |
Technical Specifications:
| Capacity | (m³/h) | 2.0 |
| Voltage | Customizable | AC220V/380V/415V/440V |
| Pressure | Normal (MPa) | 0.07 |
| Design (MPa) | 0.3 | |
| Matching Pump | Model | DZ-2000 |
| Power (kW) | 0.75 | |
| Electric Heater | Power (kW) | 2.0 |
| Bilge Water Alarm Device | Configuration | XOC-01 |
| Control Mode | Configuration | Auto/Manual |
| Oil Discharge Method | Configuration | Auto/Manual |
| Overall Dimensions | H (mm) | 1530 |
| A (mm) | 1180 | |
| B (mm) | 880 | |
| Installation Dimensions | C (mm) | 1000 |
| D (mm) | 450 | |
| Weight | (kg) | 450 |

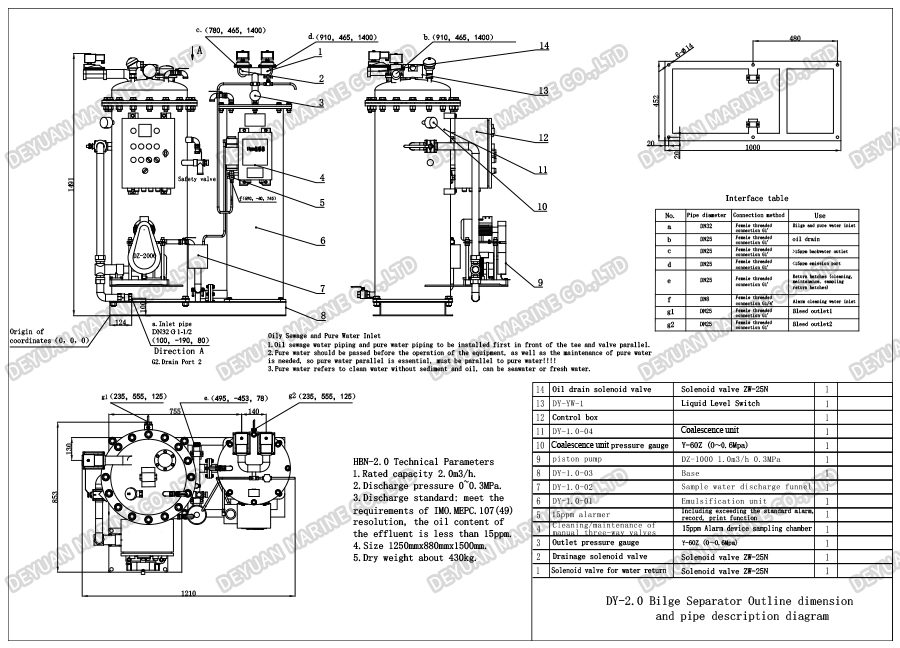

Outline Drawing:

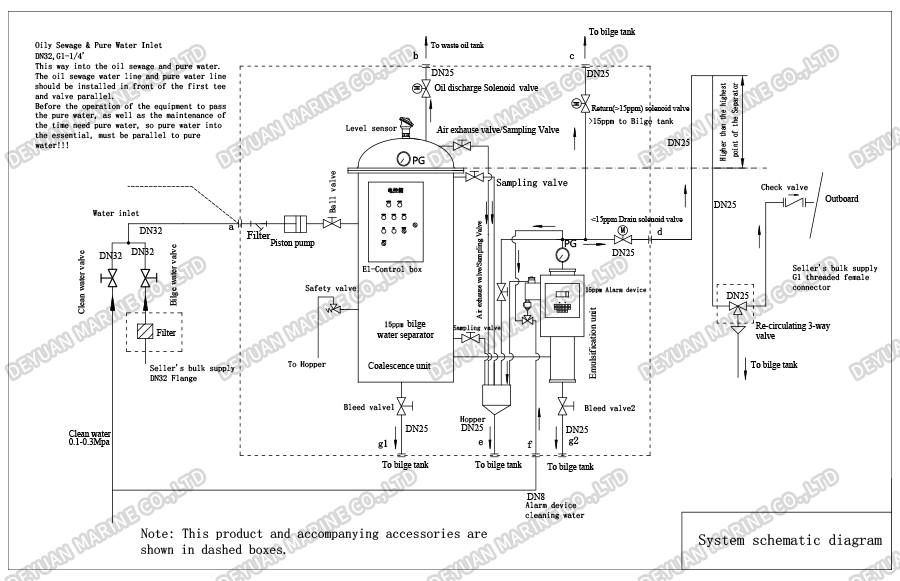

System Schematic Diagram:
Space-Saving, Lightweight, and Installation-Ready:
The integrated skid-mounted design of the DY-2.0 offers exceptional logistics and installation advantages:
1.Compact footprint – significantly smaller than equivalent-capacity systems with separate components, making it suitable for engine rooms with tight space constraints.
2.Lightweight construction – using high-strength composites and corrosion-resistant alloys that reduce structural loading and simplify lifting/handling during newbuilding or retrofit projects.
3.Pre-piped and pre-wired – factory-assembled and factory-tested, the unit arrives ready for fast, error-free hook-up to shipboard services, drastically reducing installation man-hours and commissioning time.
4.Top-access maintenance hatches – all serviceable components, including coalescing elements and filters, are accessible from above without dismantling piping or disturbing adjacent equipment.
Heavy-Duty Durability for Continuous Service:
The DY-2.0 is built to withstand the rigorous demands of round-the-clock operation aboard large commercial vessels:
1.Corrosion-resistant internal coatings and non-ferrous wetted parts for extended service life in saline and humid environments.
2.Heavy-duty seals and gaskets rated for high-temperature and high-viscosity fluids.
3.Design service life of internal separation elements exceeding 12 months under normal operating conditions, reducing spare parts inventory and dry-dock maintenance frequency.
