Product Description

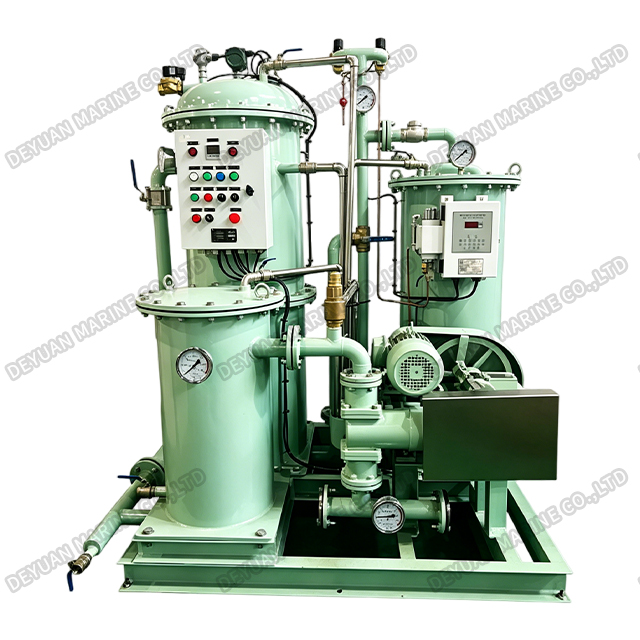

3.0m3/h 15ppm Bilge Water Separator
Product Introduction:
The DY-3.0 15ppm Bilge Water Separator is a high-capacity marine pollution prevention unit designed to deliver reliable and efficient oily water separation for large commercial vessels with substantial bilge water generation rates. Engineered in strict accordance with IMO MEPC.107(49) – the Revised Guidelines and Specifications for Pollution Prevention Equipment for Machinery Space Bilges of Ships – this model offers a nominal throughput of 3.0 m³/h, making it the ideal solution for vessels where smaller units simply cannot keep pace with operational demands.
Selection Guide for Bilge Water Separator:
| Model | Capacity (m³/h) | Maximum Vessel Gross Tonnage (GT) | Remarks |
| DY-0.1 | 0.1 | 400 | When selecting a bilge water separator for a vessel, it is always advisable to choose a unit with a larger capacity than the statutory minimum requirement. 1. 0.00044G m³/h (G: vessel gross tonnage) — for vessels below 1,000 GT. 2. 0.4 + 0.00004G m³/h — for vessels between 1,000 and 40,000 GT. 3. For vessels between 40,000 and 50,000 GT, select 3.0 m³/h. 4. For vessels above 50,000 GT, select 5.0 m³/h. |
| DY-0.25 | 0.25 | 550 | |
| DY-0.5 | 0.5 | 2500 | |
| DY-1.0 | 1.0 | 15000 | |
| DY-2.0 | 2.0 | 40000 | |
| DY-3.0 | 3.0 | 50000 | |
| DY-5.0 | 5.0 | Unlimited |
Technical Specifications:
| Model | Capacity (m³/h) | Pressure | Matching Pump | Electric Heater | Bilge Water Alarm Device | Control Mode | Oil Discharge Method | ||
| Normal (MPa) | Design (MPa) | Model | Power (kW) | Power (kW) | Configuration | Configuration | Configuration | ||
| DY-0.1 | 0.1 | 0.03 | 0.3 | DZ-100 | 0.12 | Optional | XOC-01 | Auto/Manual | Auto/Manual |
| DY-0.25 | 0.25 | 0.03 | 0.3 | DZ-250 | 0.18 | Optional | XOC-01 | Auto/Manual | Auto/Manual |
| DY-0.5 | 0.5 | 0.03 | 0.3 | DZ-500 | 0.25 | Optional | XOC-01 | Auto/Manual | Auto/Manual |
| DY-1.0 | 1.0 | 0.07 | 0.3 | DZ-1000 | 0.37 | 1.0 | XOC-01 | Auto/Manual | Auto/Manual |
| DY-2.0 | 2.0 | 0.07 | 0.3 | DZ-2000 | 0.75 | 2.0 | XOC-01 | Auto/Manual | Auto/Manual |
| DY-3.0 | 3.0 | 0.07 | 0.3 | DZ-3000 | 1.1 | 2.0 | XOC-01 | Auto/Manual | Auto/Manual |
| DY-5.0 | 5.0 | 0.07 | 0.3 | DZ-5000 | 1.5 | 3.0 | XOC-01 | Auto/Manual | Auto/Manual |

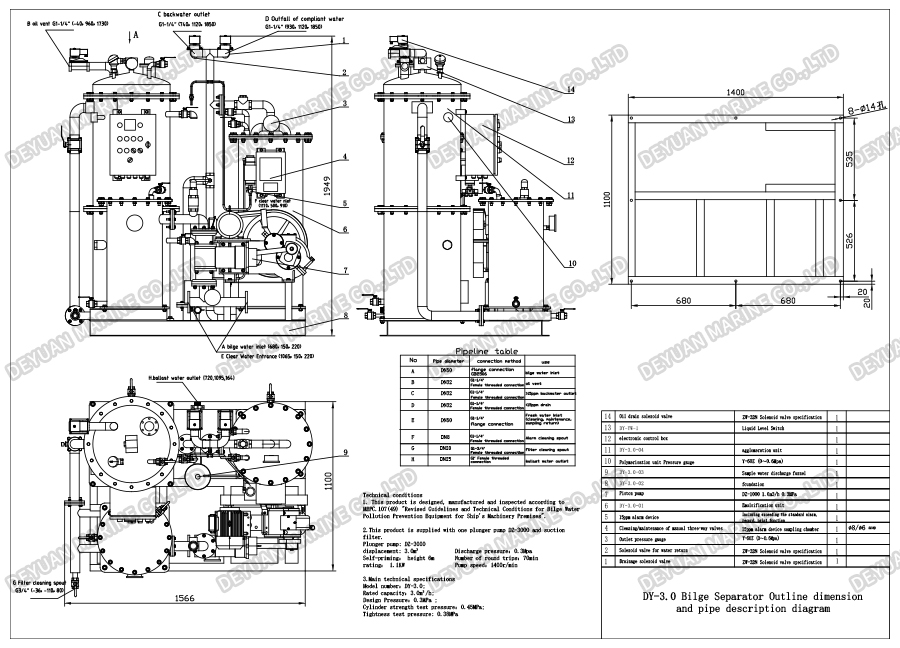

Outline Drawing:

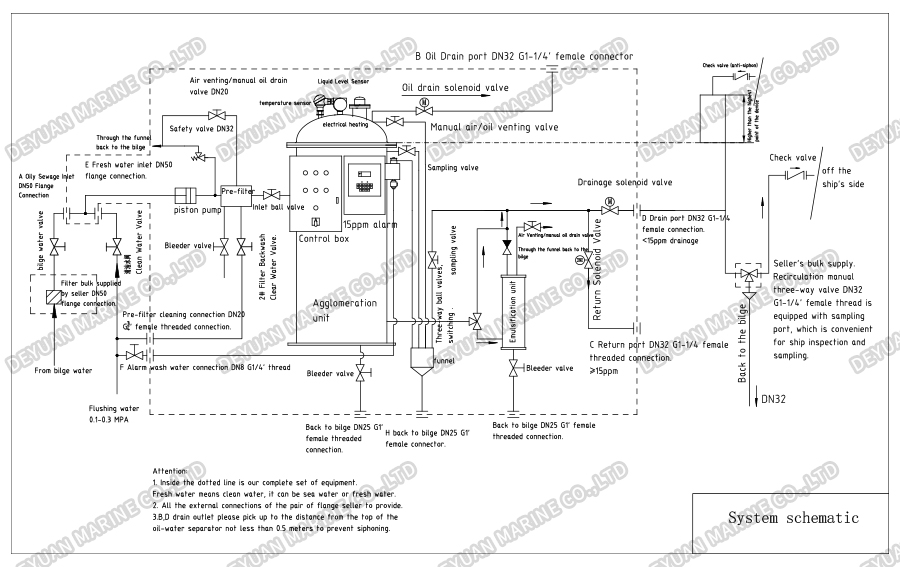

System Schematic Diagram:
| Model | Overall Dimensions & Installation Dimensions (mm) | Weight | ||||
| H | A | B | C | D | kg | |
| DY-0.1 | 1100 | 570 | 610 | 480 | 470 | 120 |
| DY-0.25 | 1170 | 760 | 740 | 450 | 660 | 160 |
| DY-0.5 | 1370 | 760 | 720 | 450 | 660 | 185 |
| DY-1.0 | 1480 | 1080 | 850 | 1000 | 450 | 380 |
| DY-2.0 | 1530 | 1180 | 880 | 1000 | 450 | 450 |
| DY-3.0 | 3.0 | 1700 | 1100 | 1400 | 1100 | 820 |
| DY-5.0 | 5.0 | 1900 | 1130 | 1500 | 1100 | 950 |
Product Advantages:
The DY series 15ppm Bilge Water Separator is designed not merely to pursue the highest discharge standards, but also with thorough consideration of the practical needs of shipowners and shipyards. This design philosophy has shaped the distinctive advantages of DY products.
◎ High separation precision and treatment efficiency – discharge water oil content consistently <15ppm;
◎ Versatile in treating all oily pollutants from machinery space bilges, including all types of oils that may be carried on board and their mixtures in emulsion form;
◎ Highly automated and user-friendly – equipped with automatic oil discharge control, automatic temperature control, and comprehensive safety protection measures; no repeated backwashing required; service life >1 year;
◎ Integrated 15ppm bilge alarm device – automatically displays the oil content of the discharge water; automatically triggers alarm and recirculates back to bilge when discharge exceeds the limit, with automatic event recording;
◎ Comprehensive alarm data logging – the alarm device records the date, time, alarm status, and the operating status of the bilge water separator during each alarm event; the recording unit stores data for at least 18 months, and can display and print the official inspection reports required by authorities;
◎ Compact size and light weight – easy and convenient installation and maintenance;
◎ Complete accessories and spare parts – backed by high-quality and efficient after-sales service.
