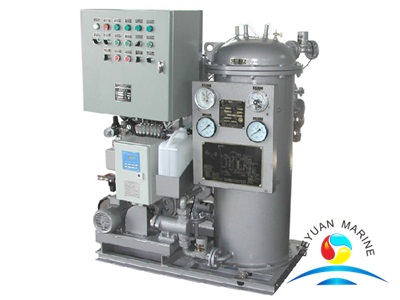

15PPM Bilge Water Separators
15ppm Bilge Water Separators (15ppm oily water separators ) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water ≤15ppm. This separator is the high-tech newest product which can effectively dispose all kinds of fluids in bilge water including fuel oil, high-density residual oil and emulsion mixture combined with black ferric oxide and surfactant.
15ppm Bilge Water Separators (15ppm oily water separators ) of 9 types with the capacity from 0.25m3/h to 5.00 m3/h, The smallest type is DY-0.25 which can be installed on ship less than 1000DWT.The biggest type is DY-5.00 which can be installed on ship more than 300 thousand DWT. This Bilge Water Separators can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content from DY can meet any standards of Environment Bureau in China.
15ppm Bilge Water Separators (15ppm oily water separators ) has been obtained the Type Approval of CCS 、(GL) EC and IMO circular in July 2007. USCG is applying, will be coming soon in 2009.
| Capacity | 0.25M3/H | 0.5M3/H | 1.0M3/H | 1.5M3/H | 2.0M3/H | 2.5M3/H | 3.0M3/H | 4.0M3/H |
Rated capacity
(M3/H) | 0.25/0.31 | 0.5/0.62 | 1.0/1.25 | 1.5/1.87 | 2/2.25 | 2.5/3.12 | 3/3.75 | 4.0/5.0 |
| Power (kw) | 0.75 | 1.10 | 1.10 | 1.10 | 2.20 | 2.20 | 3.0 | 3.0 |
Steam heater
M2/kw | --- | --- | 1/30 | 1.5/45 | 2/60 | 2.5/75 | 3/90 | 4/120 |
15ppm
Bilge alarm | including | including | including | including | includig | including | includig | includig |
| base | #5
1000*600 | #6
1100*690 | #6
1050*1084 | #8
1100*1130 | #8
1900*1120 | #8
1700*1500 | #10
2400*
1700 | #10
2500*
2000 |
| dimension | 1320 | 1460 | 1500 | 1660 | 1700 | 1900 | 2020 | 1820 |
Dry weight/
Net weight | 300/450 | 600/800 | 800/860 | 1060/1810 | 1260/
2260 | 1500/
2800 | 1800/
3200 | 2100/
3900 |
| Suitable for vessels | Less than 1000
DWT | 1000~5000 DWT | 5~10
KDWT | 10~30
KDWT | 30~50
KDWT | 50~100
KDWT | 100~200
KDWT | 100~300
KDWT |
