Product Description

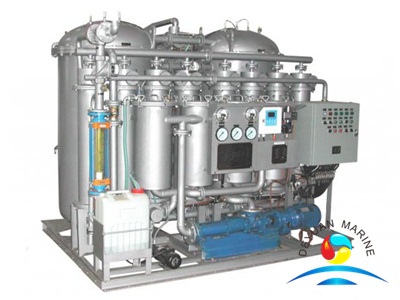

Marine Bilge Water Separator
Product Introduction:
This Marine Bilge Water Separator can be used to treat oily bilge water in order to make it reach the requirements of IMO.MEPC.107 (49) resolution, which is also called 15ppm bilge separator. It contains type approved 15ppm bilge water separator ,15ppm bilge alarm and Automatic shut down Device .
The device adopts the combination of 1st stage, cone plate gravity and coalesce separation; 2nd stage, fiber filter and 3rd stage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
Product Parameters:
| Type | YWC-0.25 | YWC-0.5 | YWC-1.0 | YWC-1.50 | YWC-2.0 | YWC-2.5 | YWC-3.0 | YWC-4.0 |
| Rated capacity (m3/h) | 0.25/0.31 | 0.5/0.62 | 1.0/1.25 | 1.5/1.87 | 2/2.25 | 2.5/3.12 | 3/3.75 | 4.0/5.0 |
| Power (kw) | 0.75 | 1.1 | 1.1 | 1.1 | 2.2 | 2.2 | 3 | 3 |
| Steam heater (M2/kw) | --- | --- | 1/30 | 1.5/45 | 2/60 | 2.5/75 | 3/90 | 4/120 |
| 15ppm bilge alarm | including | including | including | including | including | including | including | including |
| Base (L*W/mm) | #5 | #6 | #6 | #8 | #8 | #8 | #10 | #10 |
| 1000*600 | 1100*690 | 1050*1084 | 1100*1130 | 1900*1120 | 1700*1500 | 2400*1700 | 2500*2000 | |
| Dimension (mm) | 1320 | 1460 | 1500 | 1660 | 1700 | 1900 | 2020 | 1820 |
| Dry weight (kg) | 300 | 600 | 800 | 1060 | 1260 | 1500 | 1800 | 2100 |
| Net weight (kg) | 450 | 800 | 860 | 1810 | 2260 | 2800 | 3200 | 3900 |
| Suitable for vessels | Less than 1000DWT | 1~5KDWT | 5~10KDWT | 10~30KDWT | 30~50KDWT | 50~100KDWT | 100~200KDWT | 100~300KDWT |
