Product Description

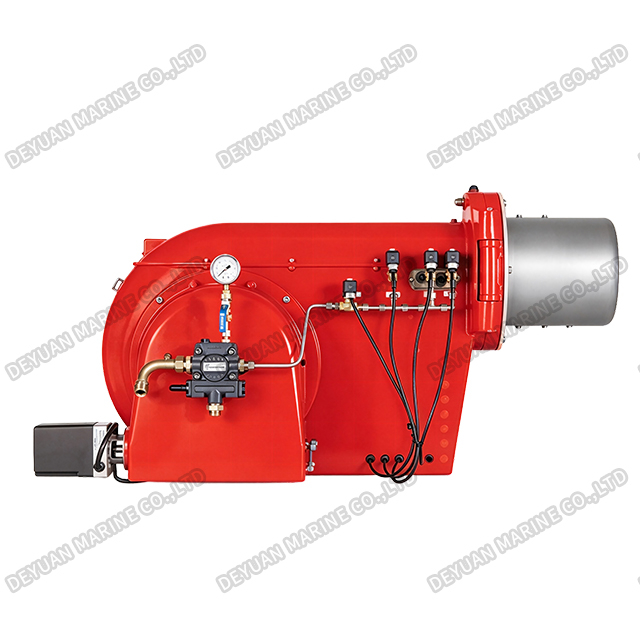

HY Series Monoblock Fuel Oil Burner
Product Introduction:
The Marine HY Series Monoblock Fuel Oil Burner is a highly efficient, integrated combustion system specifically designed for marine applications, including marine incinerators, auxiliary boilers, and thermal oil heaters. Combining advanced combustion technology with a compact monoblock design (integrating the fan, oil pump, and control system), it ensures reliable performance even in the demanding environments of modern vessels.
Key Features & Advantages:
1.High Efficiency: Achieves an outstanding combustion efficiency of over 99%. The optimized design allows for maximum combustion power even at lower fuel supply pressures. Furthermore, the high-efficiency fan is paired with a low-power motor, effectively overcoming higher furnace backpressures.
2.Energy Saving: Adopts cutting-edge combustion technology and optimized configurations. By minimizing losses and waste from energy production to consumption, it ensures economical and rational energy utilization.
3.Environmental Protection: Fully compliant with European emission standards. Designed with environmental responsibility in mind, it serves as an excellent helper in coordinating human activities with environmental protection.
4.Versatile Control Modes: Offers flexible control options including Single-stage, Double-stage, Sliding Two-stage, and Proportional Regulation to meet precise load demands.
5.Robust Power Range: Available in multiple models (HY01a to HY16b) covering a wide power range from 154 kW to 10,900 kW, with fuel consumption ranging from 13 kg/h to 915 kg/h.
Technical Specifications:
| Model | Applicable Fuel | Power Range | Fuel Consumption (kg/h) | Main Power Supply | Control Mode | Motor Power (kW) | Max. Motor Operating Current (A) | Burner Weight (kg) | Packaging Dimensions LxBxH (mm) |
| HY01a(c) | Light Diesel | 154~391kW 132~336Mcal/h | 13~33 | 1×220V/N/PE 50Hz | Single-stage / Two-stage | 0.37 | 25 | 1200×600×600 | |
| HY02a(c) | 236~531kW 203~457Mcal/h | 20~45 | 0.37 | 30 | 1200×600×600 | ||||
| HY03b(c/e) | 190~771kW 163~663Mcal/h | 16~65 | 3x380V/N/PE 50Hz or 3x440V/N/PE 60Hz | Two-stage / Sliding Two-stage / Proportional Regulation | 1.1 | 2.4 | 80 | 1100×800×650 | |
| HY05b(c/e) | 310~1190kW 267~1023Mcal/h | 26~100 | 1.5 | 3.4 | 90 | 1050×850×750 | |||
| HY07b(c/e) | 595~1905kW 512~1638Mcal/h | 50~160 | 3 | 6.4 | 110 | 1300×950×750 | |||
| HY08b(c/e) | 835~2740kW 718~2356Mcal/h | 70~230 | 4 | 8.7 | 120 | 1300×950×750 | |||
| HY08/2b(c/e) | 760~2860kW 655~2460Mcal/h | 64~240 | 5.5 | 11.2 | 120 | 1300×950×750 | |||
| HY09b(c/d/e) | 750~2980kW 645~2563Mcal/h | 63~250 | Two-stage / Three-stage / Sliding Two-stage / Proportional Regulation | 7.5 | 15 | 140 | 1450×1050×850 | ||
| HY10b(d/e) | 1130~4525kW 972~3892Mcal/h | 95~380 | Three-stage / Sliding Two-stage / Proportional Regulation | 10 | 21 | 180 | 1450×1050×850 | ||
| HY11b(d/e) | 1550~5240kW 1335~4511Mcal/h | 130~440 | 12 | 23.8 | 200 | 1650×1150×950 | |||
| HY12b(e) | 1130~6170kW 972~5132Mcal/h | 95~518 | Sliding Two-stage / Proportional Regulation | 13.5 | 25.5 | 240 | 1750×1150×950 | ||
| HY15b(e) | 1905~8750kW 1638~7525Mcal/h | 160~735 | 15 | 28.7 | 300 | 2250×1300×1350 | |||
| HY16b(e) | 1905~10900kW 1638~9374Mcal/h | 160~915 | 22 | 42.2 | 340 | 2250×1300×1350 |

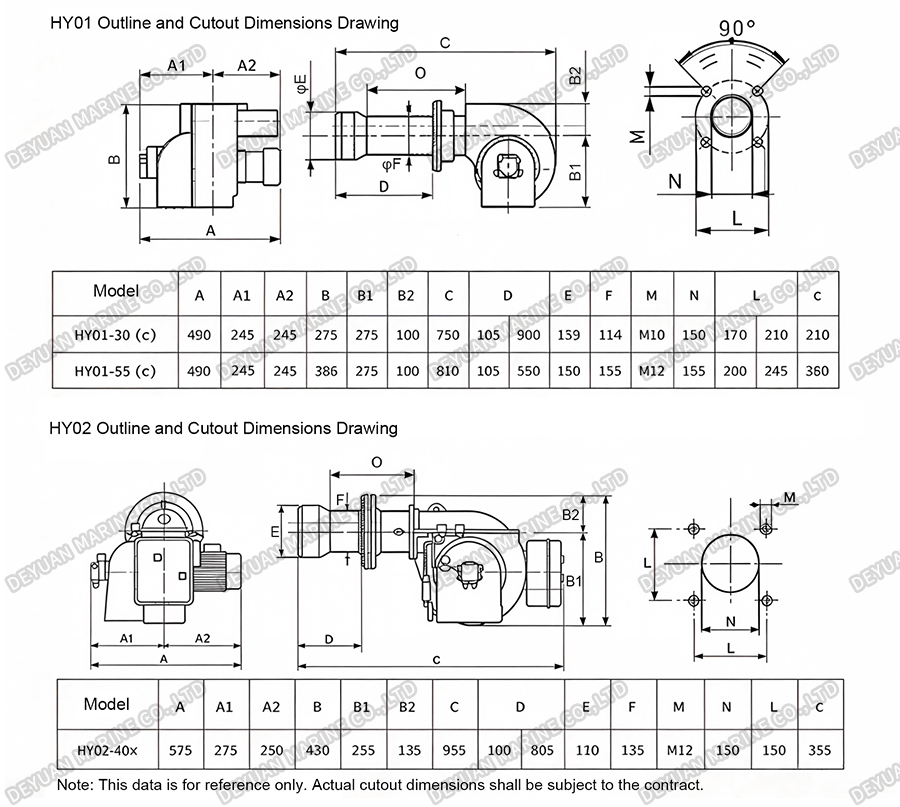

Drawing 1:

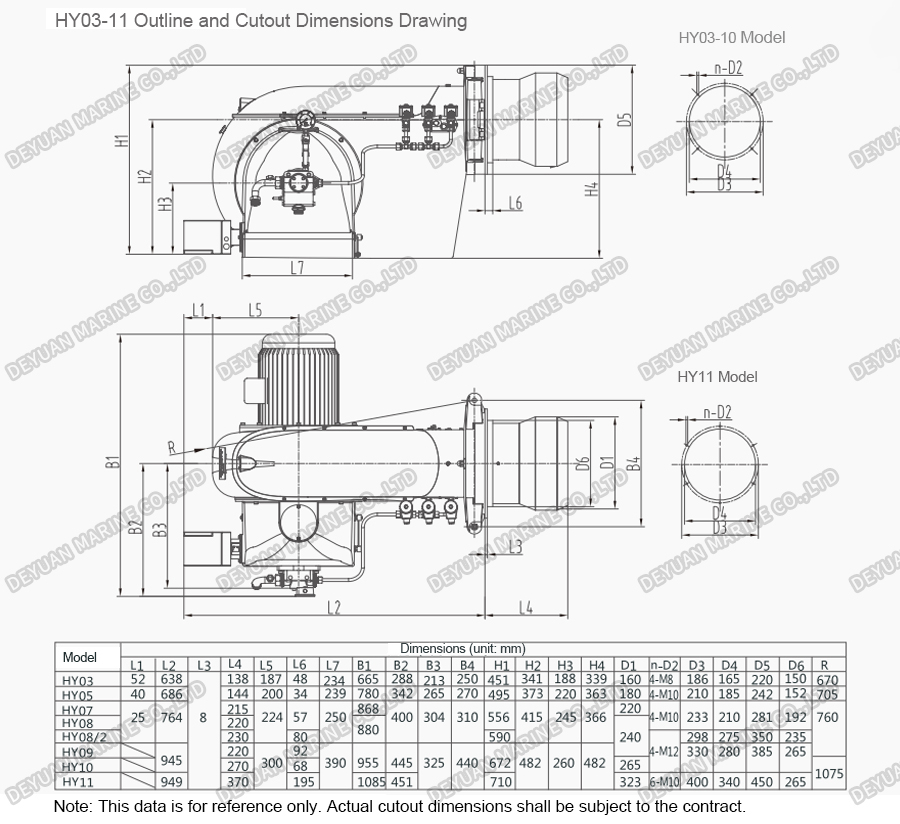

Drawing 2:

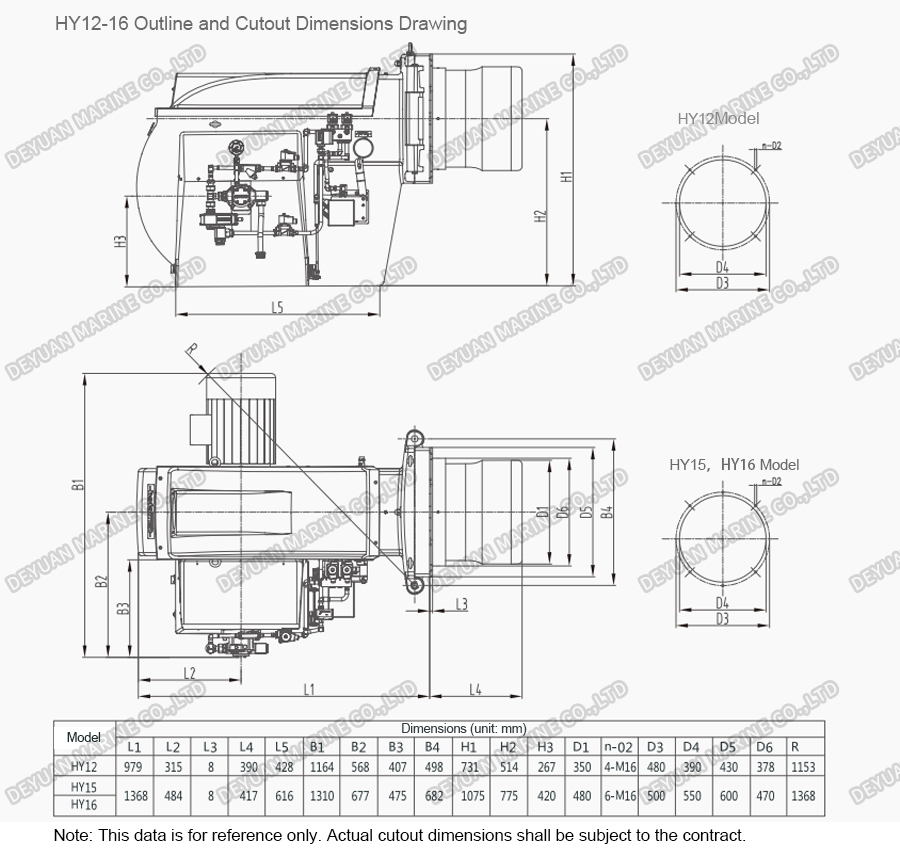

Drawing 3:
Main Configuration Table:
| Item | HY01 | HY02 | HY03 | HY05 | HY07 | HY08 | HY08/2 | HY09 | HY10 | HY11 | HY12 | HY15 | HY16 |
| Controller (Siemens) | LOA2... | LOA2... /LAL2... /LOK16... | LAL₂.../LOK16... | ||||||||||
| Servo Motor (Siemens) | SQN70... | SQN70.../SQM10... | SQM10... | ||||||||||
| Flame Detector (Siemens) | QRB1/RAR7 | ||||||||||||
| Fan Motor (Hofamat) | 0.37kW | 0.37kW | 1.1kW | 1.5kW | 3kW | 4kW | 5.5kW | 7.5kW | 10kW | 12kW | 13.5kW | 15kW | 22kW |
| Air Pressure Switch (Dungs) | LGW10A2(Options ) | LGW50A2P(Options ) | |||||||||||
| Fuel Oil Solenoid Valve (Parker) | E121C23 | E121C23/121K2423/121K9321/321H2322/121G2320 | |||||||||||
| High-Pressure Oil Pump (Suntec) | AE97C or BFP | J4/J7 | J7/TA2 | J7/TA3 | TA2/TA3 | TA4 | T2 | T3 | T3 | ||||
| Proportional Controller (PMA) | KS40-1(Options ) | ||||||||||||
| Ignition Transformer (Hofamat) | FIDA | XT-14 | |||||||||||
Applications:
Primarily used as pollution-prevention equipment on ships, this burner series is ideal for marine incinerators, marine boilers, and other onboard fuel oil combustion systems requiring high reliability and strict environmental compliance.
