Product Description

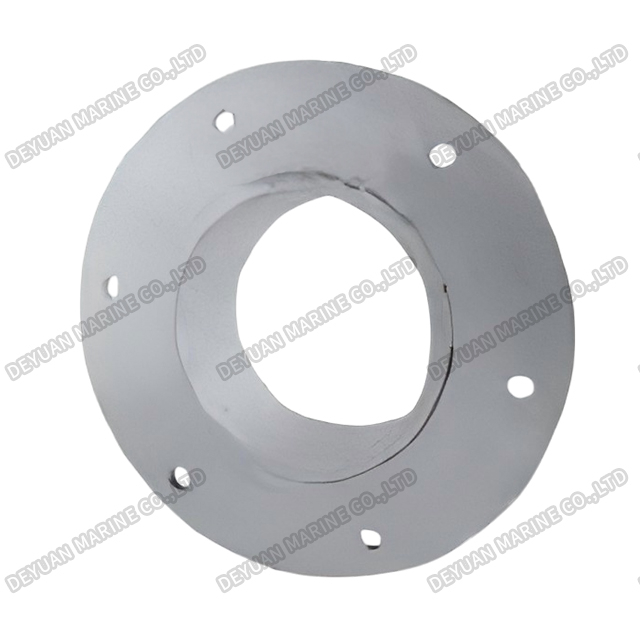

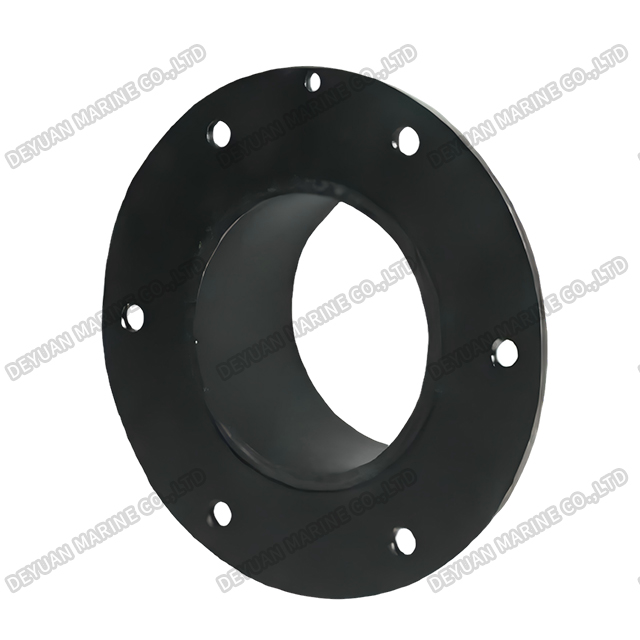

HFC Series Casing
Product Overview:
The Marine Cable Transit Module Sleeve Series is a high-performance sealing solution designed for cable penetrations through ship bulkheads, decks, and walls. These sleeves provide a secure housing for modular sealing systems (e.g., YRM, YCM, or elastomeric modules), ensuring watertight, fire-resistant, and environmentally protected cable management in demanding marine environments.
Casing Parameters：

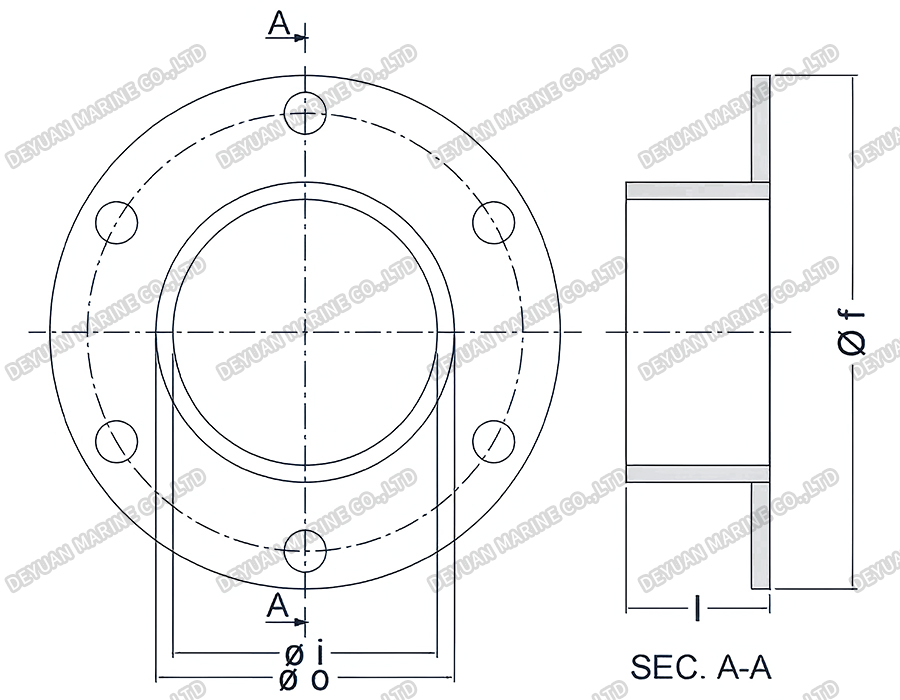

| Casing Model | Flange Outer Diameter(mm) | Casing Inner Diameter(mm) | Casing Outer Diameter(mm) | Length (mm) | Applicable Modules |
| ⌀f | ⌀i | ⌀O | I | YR/YRS Series | |
| HFC 25 | 96 | 25.5 | 32 | 35 | 25 |
| HFC 31 | 102 | 31.5 | 38 | 35 | 31 |
| HFC 43 | 110 | 44 | 50 | 65 | 43 |
| HFC 50 | 140 | 51 | 57 | 65 | 50 |
| HFC 68 | 155 | 69.5 | 73 | 65 | 68 |
| HFC 75 | 165 | 76.5 | 83 | 65 | 75 |
| HFC 100 | 195 | 101 | 108 | 65 | 100 |
| HFC 125 | 213 | 126 | 133 | 65 | 125 |
| HFC 150 | 236 | 151 | 159 | 65 | 150 |
| HFC 175 | 255 | 176 | 194 | 65 | 175 |
| HFC 200 | 290 | 201 | 219 | 65 | 200 |
| HFC 225 | 320 | 227 | 245 | 55 | 225 |
| HFC 250 | 345 | 252 | 273 | 55 | 250 |
| HFC 300 | 395 | 302 | 325 | 55 | 300 |
Note: The dimensions in the table are for reference only and non-standard dimensions can be customized.
Key Features & Benefits
Modular & Scalable Design
Exceptional Sealing Performance
Fire Safety Compliance
EMI/RFI Shielding Options
Durable & Corrosion-Resistant
saltwater corrosion.
Easy Installation & Maintenance
Global Certifications
Typical Applications
Marine & Offshore: Bulkhead and deck penetrations on ships, oil rigs, and submarines.
Industrial: Power plants, chemical facilities, and data centers requiring environmental sealing.
Infrastructure: Tunnels, bridges, and railway systems.
