Product Description

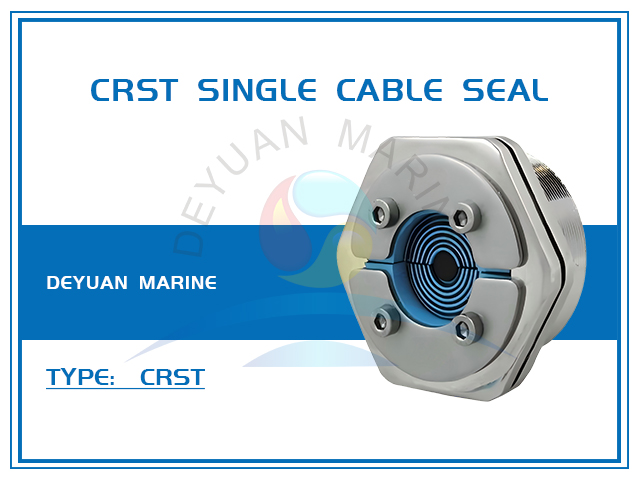

CRST Single Cable Seal
Product Overview:
The CRST is a high-performance, compact single cable transit device designed to provide rapid, reliable, and permanent sealing where a single cable passes through a bulkhead, deck, or wall. Engineered for simplicity and durability, it is the ideal solution for ensuring watertight, gas-tight, and fire integrity in demanding environments such as ships, offshore platforms, and industrial plants.

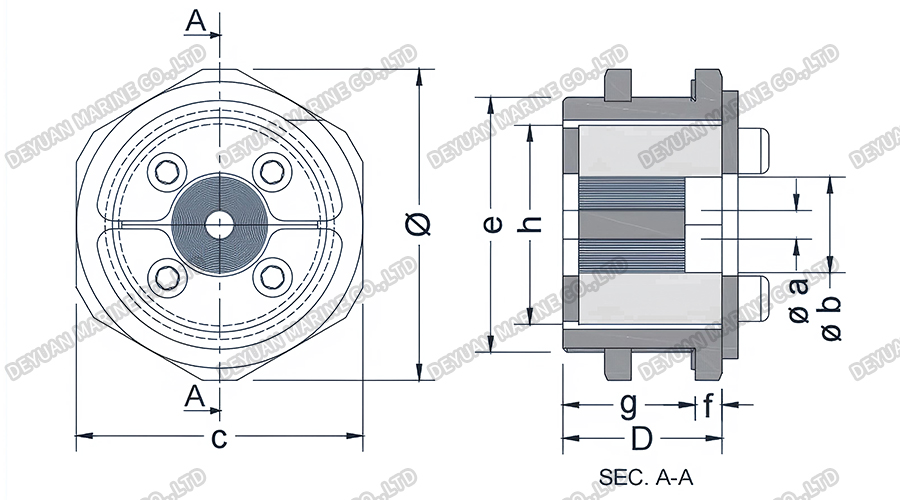

Frame Columns(mm):
| Model | Applicable aperture(mm) | Sleeve outer diameter ⌀（mm) | Length D（mm) | c | e | f | g | h |
| CRST25 | 32 | 39 | 20 | 36 | M32x1.5 | 4 | 16 | 25 |
| CRST31 | 40 | 50 | 20 | 46 | M40x1.5 | 5 | 15 | 31 |
| CRST43 | 50 | 65 | 40 | 60 | M50x1.5 | 5 | 35 | 43 |
| CRST50 | 63 | 78 | 40 | 70 | M63x1.5 | 6 | 34 | 50 |
Note: The dimensions in the table are for reference only and non-standard dimensions can be customized.
Key Features & Benefits:
*Exceptional Sealing Performance
*Robust Fire Protection
*EMI/RFI Shielding (Optional)
*Superior Mechanical Protection
*Easy & Fast Installation
*Halogen-Free & Corrosion Resistant
*Wide Compatibility
Typical Applications:
*Marine & Offshore
*Industrial
*Transportation
*Energy
