Product Description

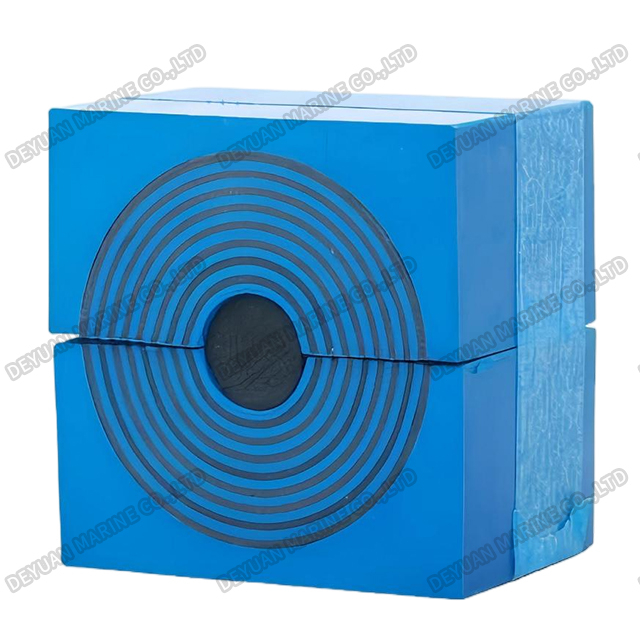

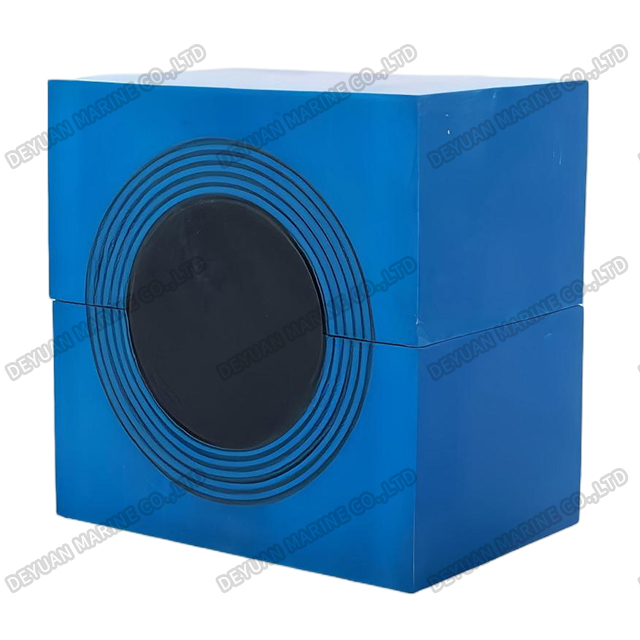

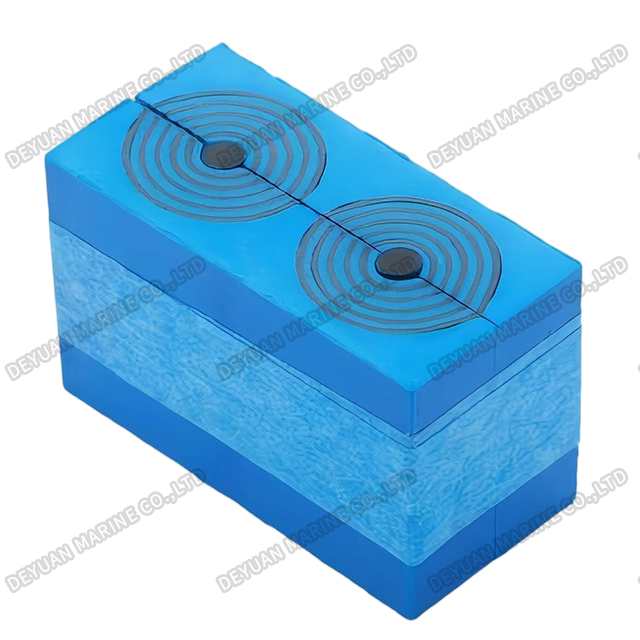

YCM Type Cable Sealing Module
Overview:
Our Marine Modular Cable Transit (MCT) Systems are engineered to provide the highest level of safety and reliability where cables pass through decks and bulkheads. Designed to meet and exceed stringent international marine standards, our sealing modules guarantee watertight integrity, exceptional fire resistance, and electromagnetic compatibility (EMC). They are the definitive solution for protecting vessel operations, crew, and assets in the most demanding environments.

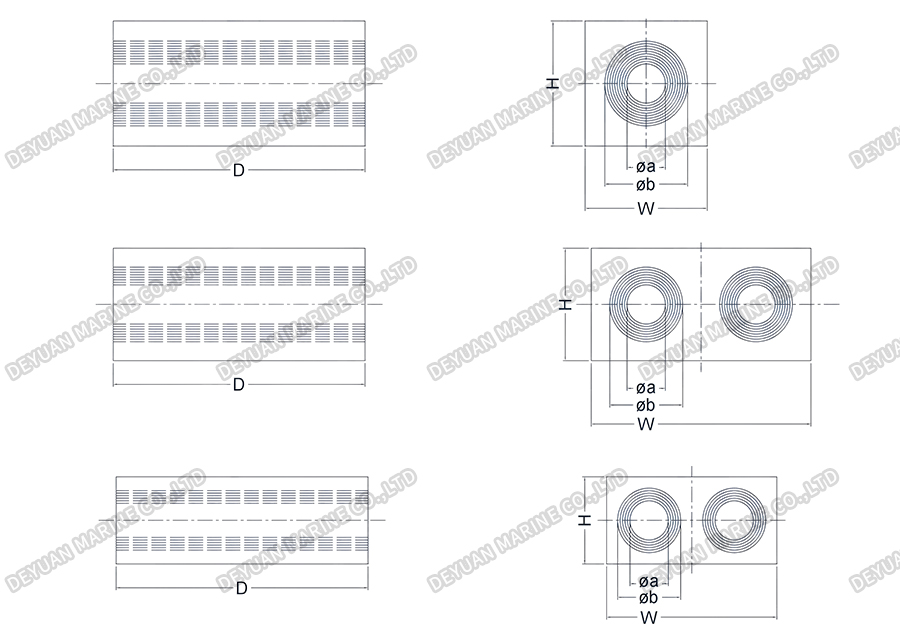

Structural Dimension Table:
| Module model | ⌀a | ⌀b | Module specifications | Number of cables that can pass through the pipe | ||
| H | W | D | ||||
| YCM-15 w40 | 3.5 | 10.5 | 15 | 40 | 30 | 3 |
| YCM-20 | 4.0 | 14.5 | 20 | 20 | 30 | 1 |
| YCM-20 w40 | 3.5 | 16.5 | 20 | 40 | 30 | 2 |
| YCM-30 | 10.0 | 25.0 | 30 | 30 | 30 | 1 |
| YCM-30 w40 | 10.0 | 25.0 | 30 | 40 | 30 | 1 |
| YCM-40 | 21.5 | 34.5 | 40 | 40 | 30 | 1 |
| YCM-40 10-32 | 9.5 | 32.5 | 40 | 40 | 30 | 1 |
| YCM-60 | 28.0 | 54.0 | 60 | 60 | 30 | 1 |
| YCM-60 24-54 | 24.0 | 54.0 | 60 | 60 | 30 | 1 |
| YCM-60 woc | 28.0 | 54.0 | 60 | 60 | 30 | 1 |
| YCM-90 woc | 48.0 | 71.0 | 90 | 90 | 30 | 1 |
| YCM-120 woc | 67.5 | 99.0 | 120 | 120 | 30 | 1 |
Key Features & Benefits:
*Uncompromising Safety Certifications
*Exceptional Environmental Sealing
*Modular & Highly Adaptable Design
*EMI/EMC Shielding
*Durable & Corrosion-Resistant Construction
*Vibration & Mechanical Stress Resistance
Applications:
*Engine Rooms & Control Rooms
*Deck & Bulkhead Penetrations
*Cable Management in
*Data & Telecom Rooms
