Product Description

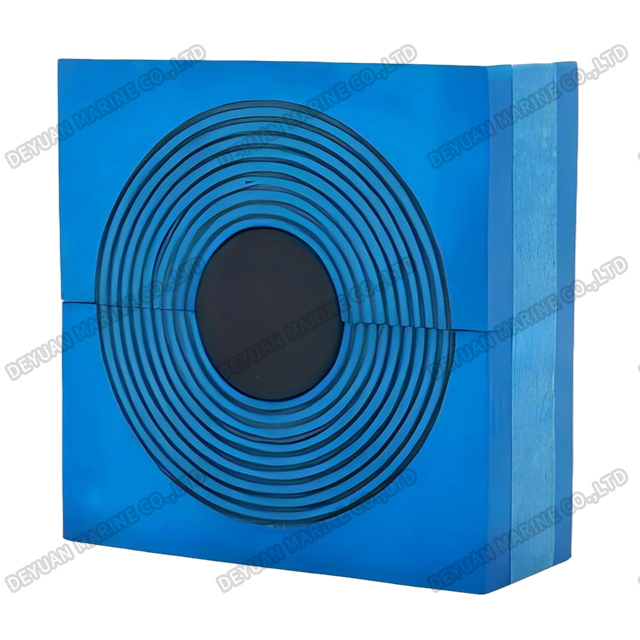

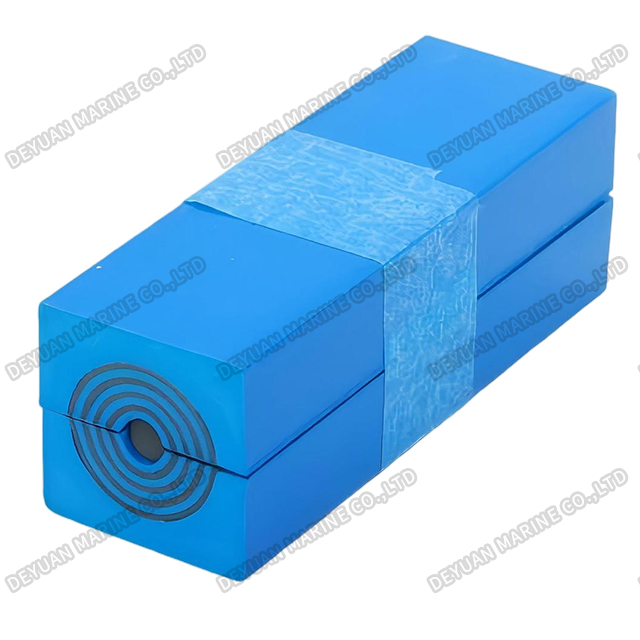

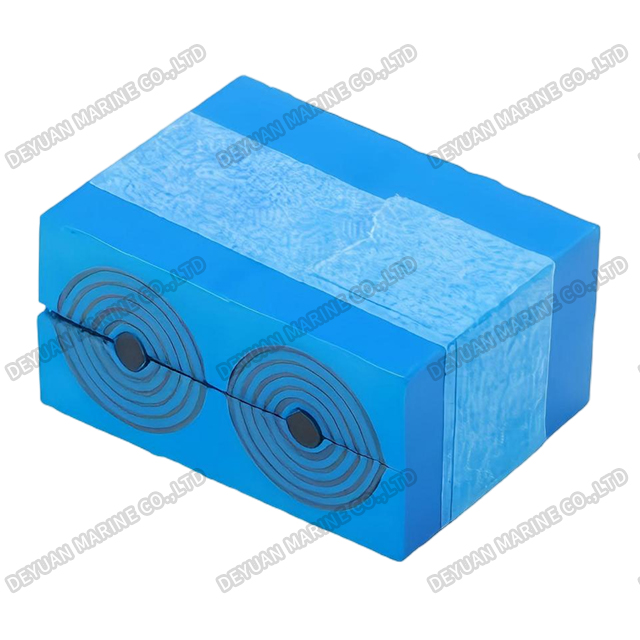

YRM Type Cable Sealing Module
Overview

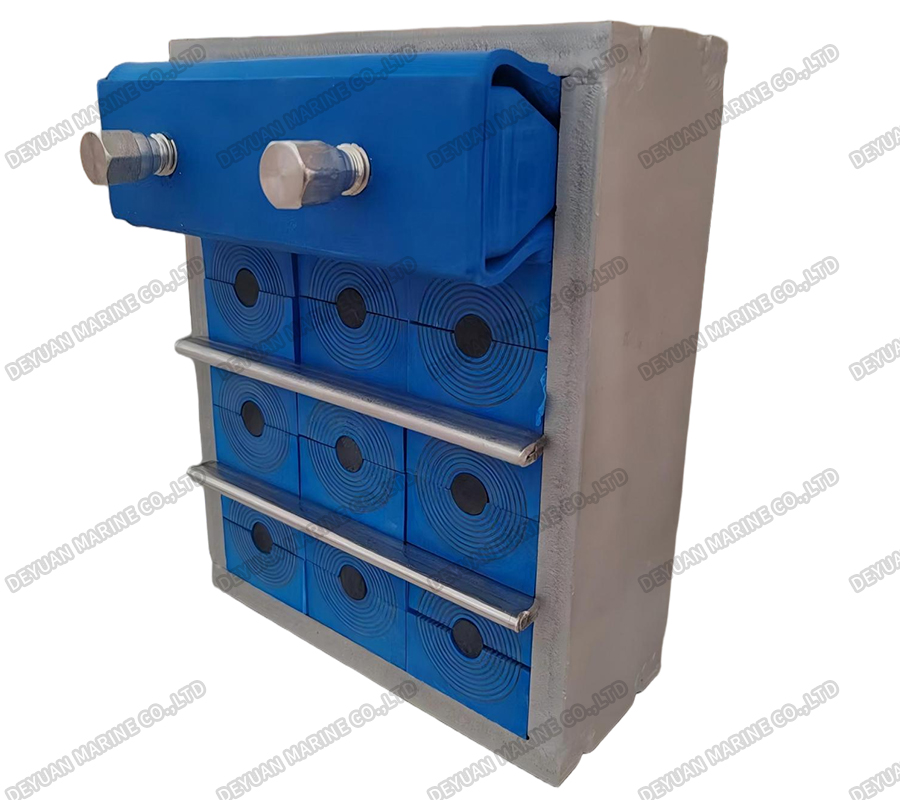

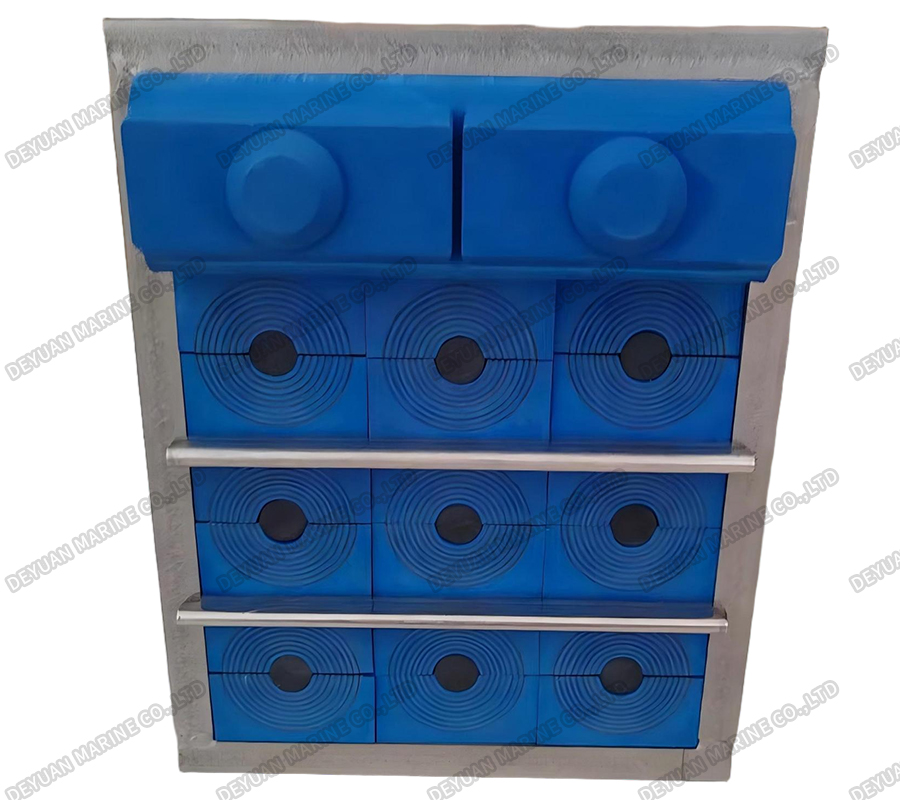

Our Marine Modular Cable Transit (MCT) Systems are engineered to provide the highest level of safety and reliability where cables pass through decks and bulkheads. Designed to meet and exceed stringent international marine standards, our sealing modules guarantee watertight integrity, exceptional fire resistance, and electromagnetic compatibility (EMC). They are the definitive solution for protecting vessel operations, crew, and assets in the most demanding environments.

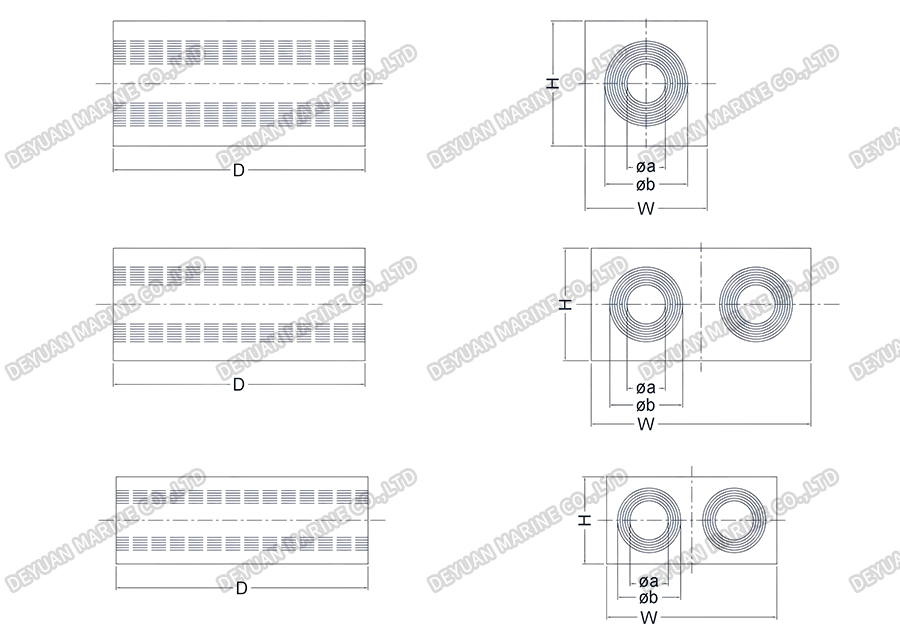

Structural Dimension Table
| Module model | ⌀a | ⌀b | Module specifications | Number of cables that can pass through the pipe | ||
| H | W | D | ||||
| YRM-15 | 3.0 | 11.0 | 15 | 15 | 60 | 1 |
| YRM-15 w40 | 3.5 | 10.5 | 15 | 40 | 60 | 3 |
| YRM-20 | 4.0 | 14.5 | 20 | 20 | 60 | 1 |
| YRM-20 w40 | 3.5 | 16.5 | 20 | 40 | 60 | 2 |
| YRM-30 | 10.0 | 25.0 | 30 | 30 | 60 | 1 |
| YRM-40 | 21.5 | 34.5 | 40 | 40 | 60 | 1 |
| YRM-40 10-32 | 9.5 | 32.5 | 40 | 40 | 60 | 1 |
| YRM-60 | 28.0 | 54.0 | 60 | 60 | 60 | 1 |
| YRM-60 24-54 | 24.0 | 54.0 | 60 | 60 | 60 | 1 |
| YRM-60 woc | 28.0 | 54.0 | 60 | 60 | 60 | 1 |
| YRM-90 woc | 48.0 | 71.0 | 90 | 90 | 60 | 1 |
| YRM-120 woc | 67.5 | 99.0 | 120 | 120 | 60 | 1 |
Key Features & Benefits
Uncompromising Safety Certifications
Exceptional Environmental Sealing
Modular & Highly Adaptable Design
EMI/EMC Shielding
Durable & Corrosion-Resistant Construction
Vibration & Mechanical Stress Resistance
Applications
Engine Rooms & Control Rooms
Deck & Bulkhead Penetrations
Cable Management in
Data & Telecom Rooms
