Product Description

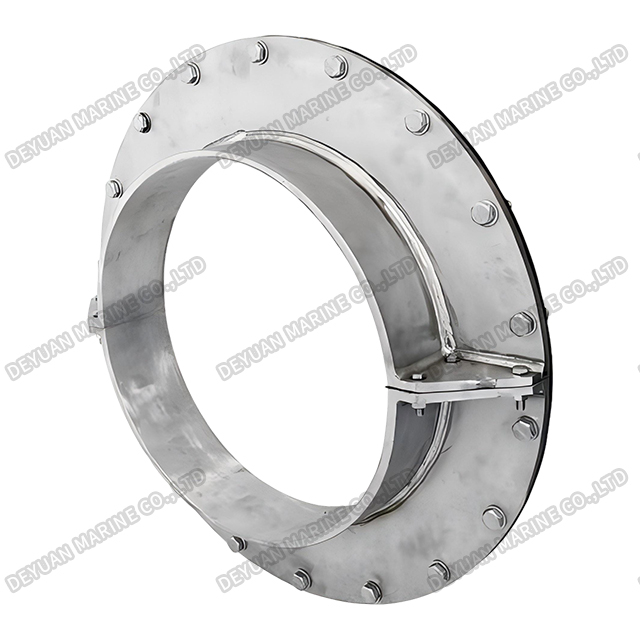

HFCO Series Casing
Product Overview:
The Marine Cable Transit Module Sleeve Series is a high-performance sealing solution designed for cable penetrations through ship bulkheads, decks, and walls. These sleeves provide a secure housing for modular sealing systems (e.g., YRM, YCM, or elastomeric modules), ensuring watertight, fire-resistant, and environmentally protected cable management in demanding marine environments.
Casing Parameters：

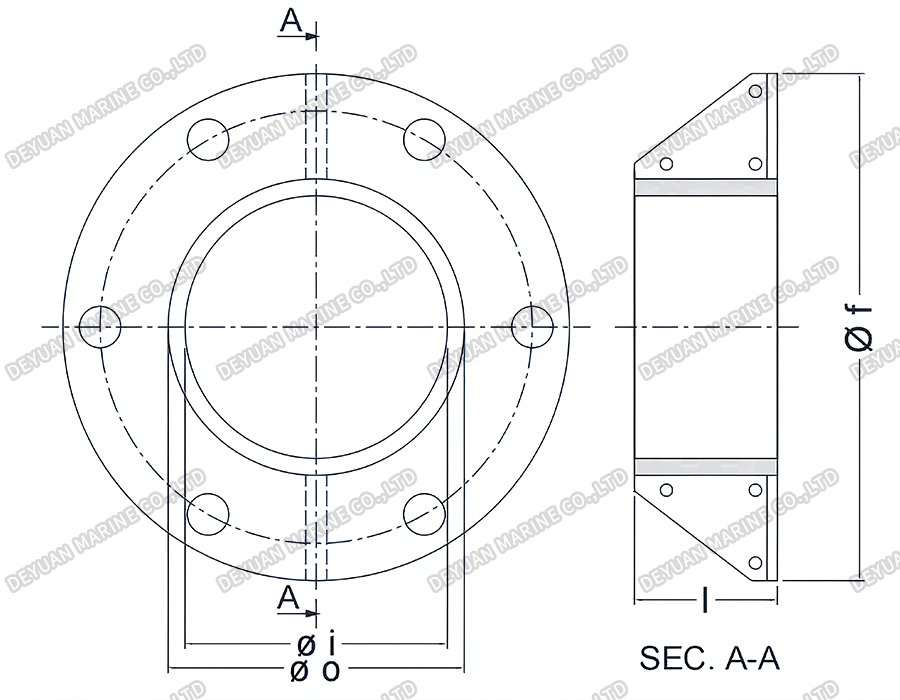

| Casing Model | Flange Outer Diameter(mm) | Aperture(mm) | Applicable Modules |
| ⌀f | ⌀i | YR/YRS Series | |
| HFCO/RI 43 | 215 | 151 | 43 |
| HFCO/RI 50 | 226 | 162 | 50 |
| HFCO/RI 68 | 246 | 182 | 68 |
| HFCO/RI 75 | 252 | 188 | 75 |
| HFCO/RI 100 | 317 | 253 | 100 |
| HFCO/RI 125 | 343 | 279 | 125 |
| HFCO/RI 150 | 367 | 303 | 150 |
| HFCO/RI 175 | 392 | 328 | 175 |
| HFCO/RI 200 | 417 | 353 | 200 |
| HFCO/RI 225 | 450 | 386 | 225 |
| HFCO/RI 250 | 475 | 411 | 250 |
| HFCO/RI 300 | 525 | 461 | 300 |
Note: The dimensions in the table are for reference only and non-standard dimensions can be customized.
Key Features & Benefits
Modular & Scalable Design
Exceptional Sealing Performance
Fire Safety Compliance
EMI/RFI Shielding Options
Durable & Corrosion-Resistant
saltwater corrosion.
Easy Installation & Maintenance
Global Certifications
Typical Applications
Marine & Offshore: Bulkhead and deck penetrations on ships, oil rigs, and submarines.
Industrial: Power plants, chemical facilities, and data centers requiring environmental sealing.
Infrastructure: Tunnels, bridges, and railway systems.
