B Type Frame
Product Description

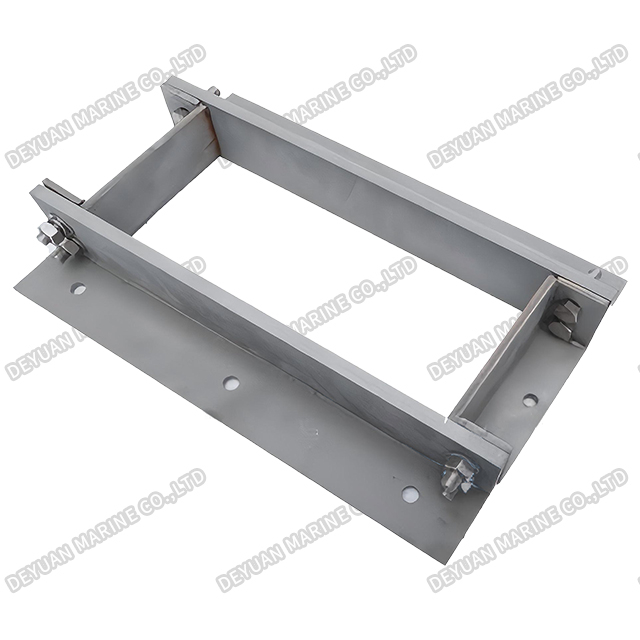

The Marine Cable Transfer Frame is a high-performance sealing system designed for waterproof and fireproof cable penetrations in ship bulkheads and decks. Engineered to meet stringent ship safety standards, the frame ensures reliable cable management and maintains compartment integrity against the spread of water, gas, and fire.

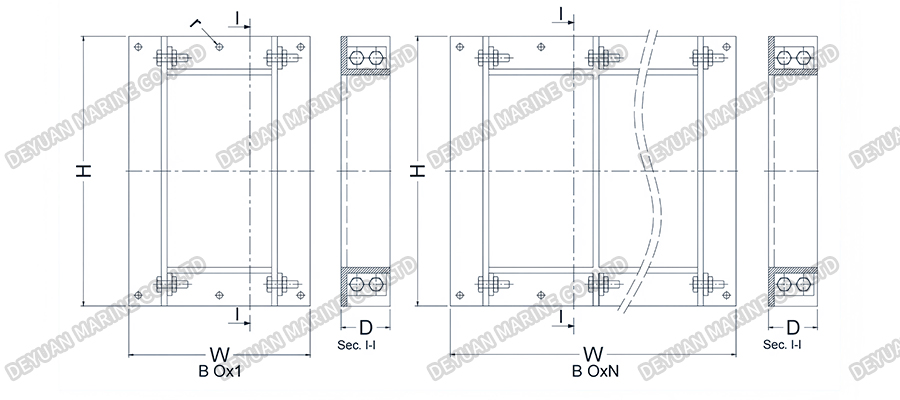

Structural Dimension Table
| Position size（mm） | |||||
| h | w | D | t | R1 | R2 |
| H-20 | W-20 | 60 | 10 | 20 | 30 |

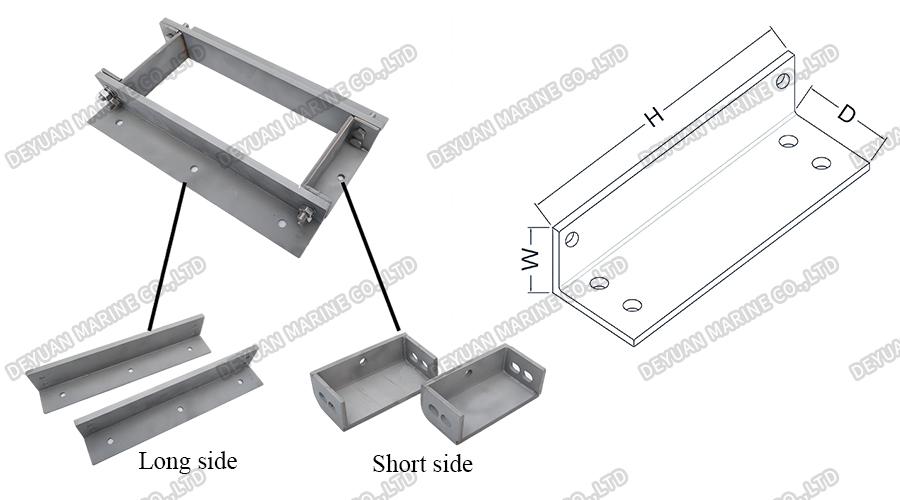

| Frame Model | Seal Dimensions | Frame Columns(mm) | ||
| H | W | D | ||
| Long side #2 | Height=60 | 181 | 40 | 60 |
| Long side #4 | Height=120 | 240 | 40 | 60 |
| Long side #6 | Height=180 | 298 | 40 | 60 |
| Long side #8 | Height=240 | 358 | 40 | 60 |
| Middle partition #2 | Height=60 | 181 | 8 | 60 |
| Middle partition #4 | Height=120 | 240 | 8 | 60 |
| Middle partition #6 | Height=180 | 298 | 8 | 60 |
| Middle partition #8 | Height=240 | 358 | 8 | 60 |
| Short side120 | Width=120 | 120 | 40 | 60 |
Note: The dimensions in the table are for reference only and non-standard dimensions can be customized.
Key Features
Waterproof and gas-tight seal - Maintains IP68 protection even under high-pressure water impact.
Fireproof design - Meets A60/A0 fire integrity standards (SOLAS compliant).
Modular and expandable - Accommodates single or multiple cables of varying diameters.
Corrosion-resistant - Made from 316L stainless steel or marine-grade aluminum, with optional coatings.
Easy installation - Pre-assembled kits come with compression gaskets or epoxy seals for quick installation.
Applications
Engine rooms and control panels - Secure power/data cables through bulkheads.
Deck and hull penetrations - Prevent seawater intrusion.
Offshore platforms - Ensure safety in hazardous areas.
