Product Description

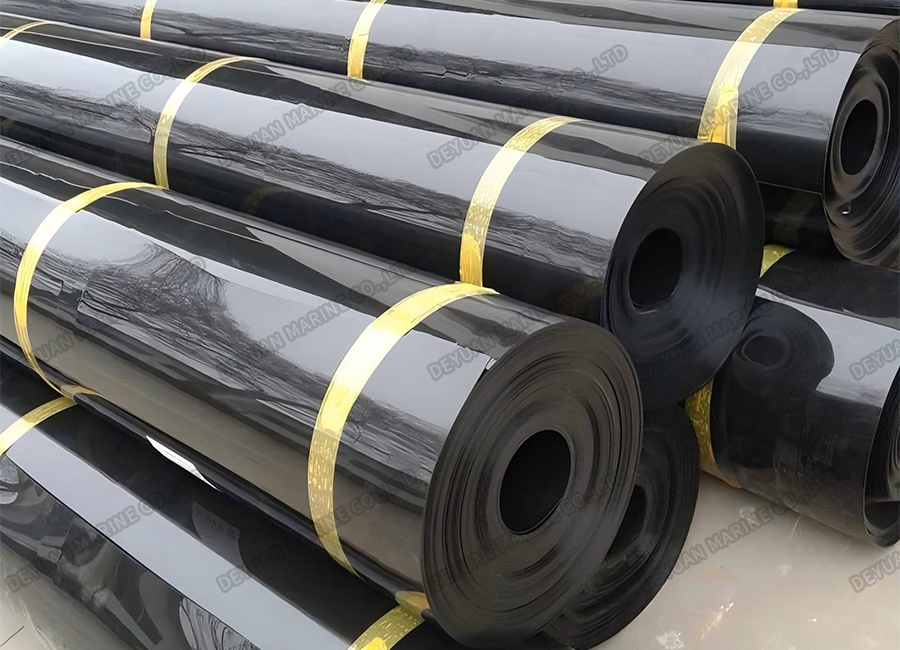

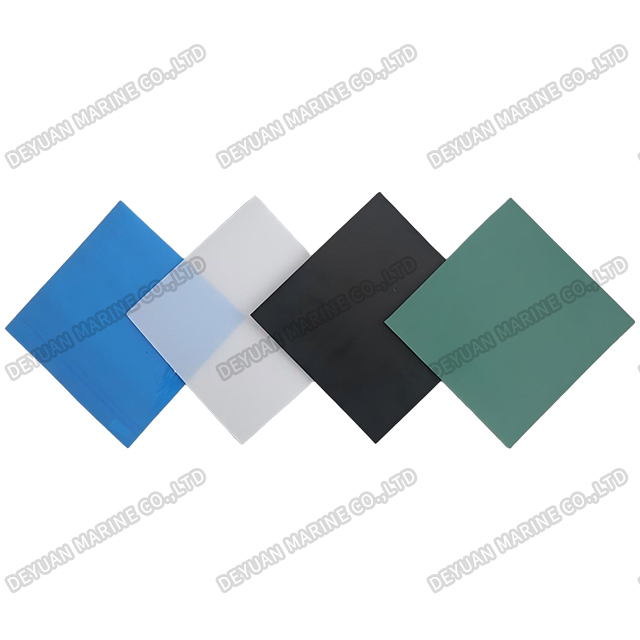

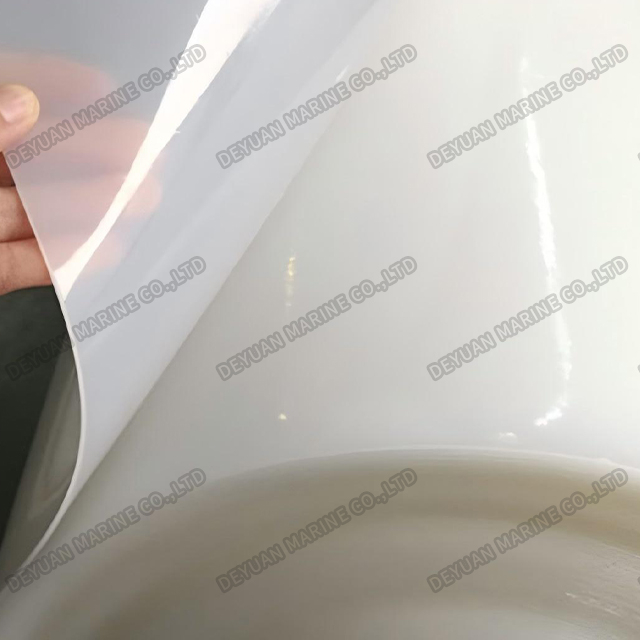

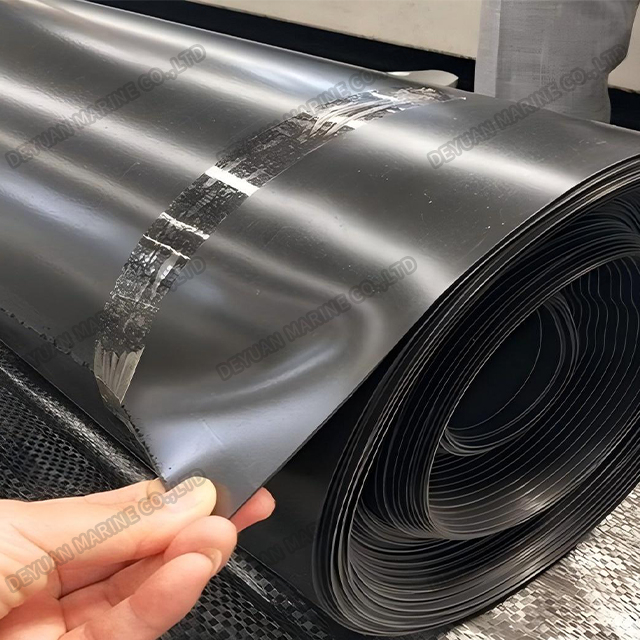

HDPE Smooth Surface Geomembrane
Product Introduction：
HDPE smooth geomembrane is produced by 95% of the original resin heating stabilizer and antioxidantthrough blow molding process or calendering process, which has the effect of impermeability and isolation.
Function And Use：
Environmental protection projects: landfills, sewage treatment plants, chemical wastewater tanks, power plant regulating tanks, industrial and medical waste landfills, ash and slag sites, and evaporation pond anti-seepage.Petrochemical: oil storage tanks in petrochemical refineries, oil well sludge tanks, chemical reaction tanks, sedimentation tanks, tailings dam bottom linings, and secondary lining anti-seepage.Chemical mining: ash and slag sites, red mud piles, heap leaching ponds, dissolution ponds, sedimentation tanks, and tailings dam bottom lining anti-seepage.Aquaculture: lining of aquaculture ponds, fish ponds, shrimp ponds, sea cucumber ponds, slope protection, and other anti-seepage works.Construction projects: subways, underground garages, roof gardens, sewage pipelines, drainage water tanks, and culvert anti-seepage.Agriculture, forestry and animal husbandry: anti-seepage of reservoirs, cisterns, drinking water tanks and irrigation systems.Salt chemical industry: salt plant crystallization tanks, bittern brine tanks, salt films, and other anti-seepage works.
Technical Indicators:
Ordinary high density polyethylene HDPE geomemofilm(GB/T 17643-2011 GH-1 type technical specifications)
| Item | Unit | Technical data | ||||||||
| Thickness | mm | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.0 | 2.5 | 3.0 |
| Density | g/cm³ | ≥0.940 | ||||||||
| Tensile stress At yield(MD/TD) | N/mm | ≥4 | ≥7 | ≥10 | ≥13 | ≥16 | ≥20 | ≥26 | ≥33 | ≥40 |
| Breaking strength(MD/TD) | N/mm | ≥6 | ≥10 | ≥15 | ≥20 | ≥25 | ≥30 | ≥40 | ≥50 | ≥60 |
| Yield elongation(MD/TD) | % | 一 | 一 | 一 | 11 | |||||
| Elongation a break(MD/TD) | % | 600 | ||||||||
| Strength at tear(righ-angle Tear)(MD/TD) | N | ≥34 | ≥56 | ≥84 | ≥115 | ≥140 | ≥170 | ≥225 | ≥280 | ≥340 |
| Antipunture strength | N | ≥72 | ≥120 | ≥180 | ≥240 | ≥300 | ≥360 | ≥480 | ≥600 | ≥720 |
| Carbon black content | % | 2.0~3.0 | ||||||||
| Carbon black distribute | / | In 10 date,3 degree no more than 1,4 and 5 degree not allowed | ||||||||
| Antioxidation time(OIT) | min | ≥60 | ||||||||
| Anti low temperature crispy ability | / | Pass | ||||||||
| Permeabilt coefficient of vappour | g.cm/ (cm².s.Pa) | ≤1.0×10-13 | ||||||||
| Dimensionalstability | % | ±2.0 | ||||||||
Environmental protection High density polyethylene HDPE geomemofilm(GB/T 17643-2011 GH-2S type technical indicators)
| Item | Unit | Technical data | ||||||
| Thickness | mm | 0.75 | 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 |
| Density | g/cm³ | ≥0.940 | ||||||
| Tensile stress At yield(MD/TD) | N/mm | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| Breaking strength(MD/TD) | N/mm | ≥20 | ≥27 | ≥33 | ≥40 | ≥53 | ≥67 | ≥80 |
| Yield elongation(MD/TD) | % | ≥12 | ||||||
| Elongation at break(MD/TD) | % | ≥700 | ||||||
| Strength at tear(right-angle Tear)(MD/TD) | N | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
| Antipunture strength | N | ≥240 | ≥320 | ≥400 | ≥480 | ≥640 | ≥800 | ≥960 |
| Tensile load stress cracking | h | ≥300 | ||||||
| Carbon black content | % | 2.0-3.0 | ||||||
| Carbon black distribute | / | In 10 date,3 degree no more than 1,4 and 5 degree not allowed | ||||||
| Antioxidation time(OIT) | min | ≥100 normal pressure oxidation time | ||||||
| ≥400 high pressure oxidation time | ||||||||
| 85℃ Heat anti-aging | % | ≥55 | ||||||
| Uvioresistant | % | 50 | ||||||
| Thickness limit deviation | % | -10 | ||||||
Plain HDPE geomembrane for landfills(CJ/T234-2006 Technical Index)(equivalent to the US GRI-GM13 standard)
| Thickness | mm | 0.75 | 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 |
| Density | g/cm³ | ≥0.939 | ||||||
| Tensile stress At yield(MD/TD) | N/mm | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| Breaking strength(MD/TD) | N/mm | ≥20 | ≥27 | ≥33 | ≥40 | ≥53 | ≥67 | ≥80 |
| Yield elongation(MD/TD) | % | ≥12 | ||||||
| Elongation at break(MD/TD) | % | ≥700 | ||||||
| Strength at tear(right-angle Tear)(MD/TD) | N | ≥93 | ≥125 | ≥156 | ≥187 | ≥249 | ≥311 | ≥374 |
| Antipunture strength | N | ≥240 | ≥320 | ≥400 | ≥480 | ≥640 | ≥800 | ≥960 |
| Environmental stress crack resistance | h | ≥300 | ||||||
| Carbon black content | % | 2.0-3.0 | ||||||
| Carbon black distribute | / | In 10 date,3 degree no more than 1,4 and 5 degree not allowed | ||||||
| Antioxidation time(OIT) | min | ≥100 normal pressure oxidation time | ||||||
| ≥400 high pressure oxidation time | ||||||||
| 85℃ Heat anti-aging | % | ≥55 | ||||||
| Uvioresistant | % | 50 | ||||||
| Dimensional stability | % | ±2.0 | ||||||
