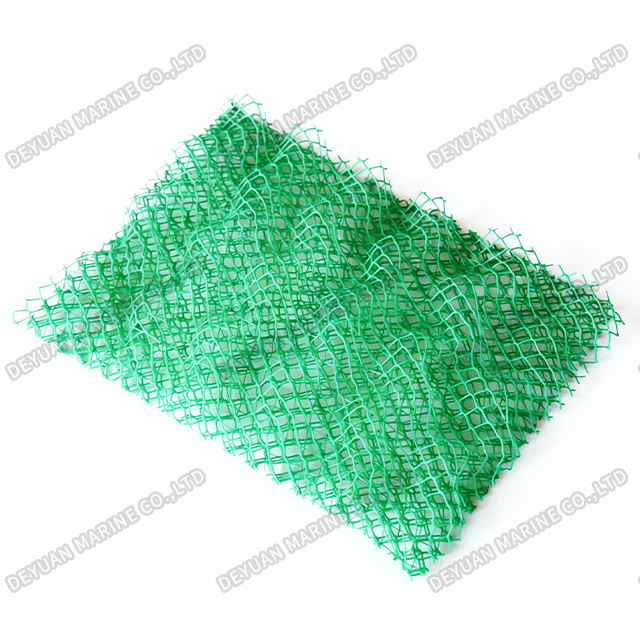

3D Geomat (Three Dimensional Erosion Control Mat)
Product Introduction：
3D Geomat is a new type of civil engineering material, classified as a geosynthetic material in the field of new material technology and included in the national high-tech product catalog for multiple material categories. It is a three-dimensional reticulated mat similar to a luffa net, designed for grass planting and soil stabilization. It features a loose and flexible texture, with 90% of its internal space available for filling soil, gravel and fine stone. Plant roots can penetrate the mat, growing healthily, regularly and evenly.

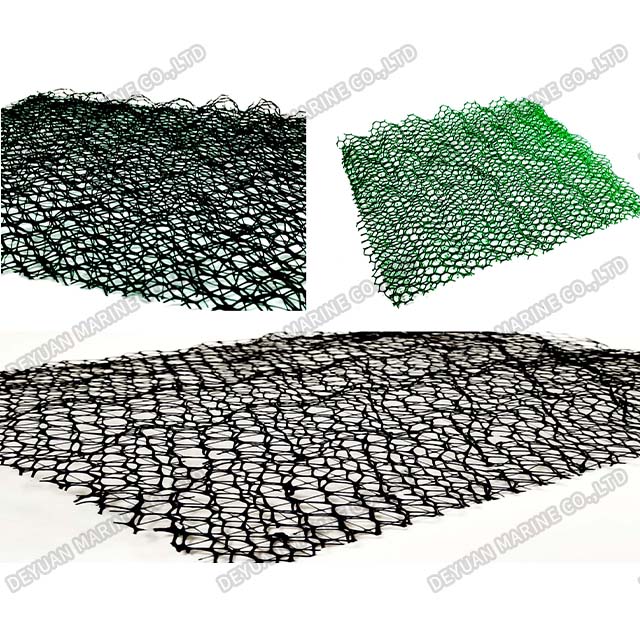

This geomat is available in three colors: dark green, green and black Erosion Control Mat.
3D Geomat can be used in soft soil stabilization, foundation reinforcement, embankment construction over soft soils, coastal slope protection, reservoir bottom reinforcement, and other applications. It prevents slope rock from falling, avoiding harm to pedestrians and vehicles on the road; it prevents road debris wrapped in geonet from being washed away, avoids roadbed deformation, and improves roadbed stability; laying geonet reinforces the road surface and prevents the development of reflection cracks. As a reinforcing material for backfill in retaining walls, it disperses earth stress and restricts lateral displacement. The gabion (stone cage) made of geonet can prevent erosion, collapse, and water and soil loss when used in dyke and rock slope protection.
Product Properties:
| Item Spec | EM2 | EM3 | EM4 | EM5 |
| Mass per unit area≥(g/m²) | 220 | 260 | 350 | 430 |
| Thickness≥(mm) | 10 | 12 | 14 | 16 |
| Width≥(m) | 2.00+0.1 | |||
| Length≥(m) | 300+1 | |||
| Longitudinal Tensile Strength≥(kN/m) | 0.8 | 1.4 | 2.0 | 3.2 |
| Transverse Tensile Strength≥(kN/m) | 0.8 | 1.4 | 2.0 | 3.2 |
| Remark | The special spec or size can be manufactured according to demands | |||
Applications:
1.Excellent aging and corrosion resistance
2.Highway and railway subgrades: effectively distributes loads, improves bearing capacity and structural stability, and extends service life

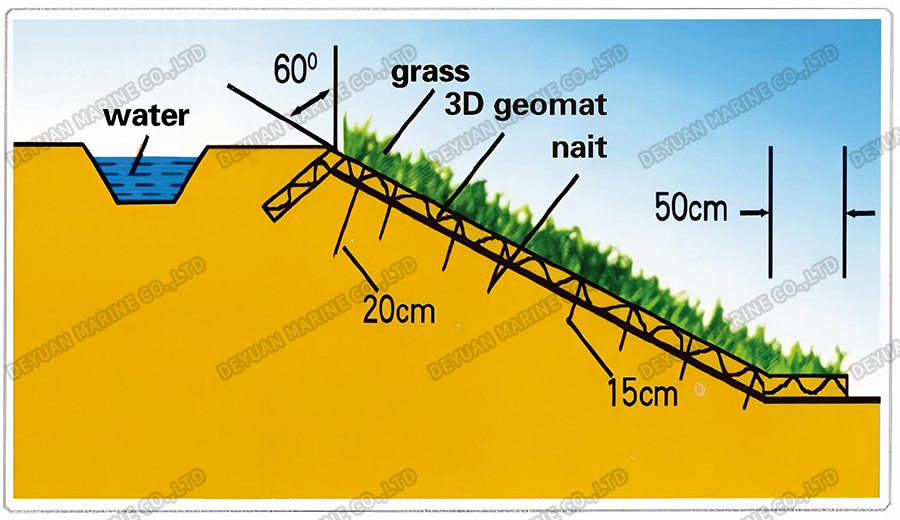

3.Highway slope protection layer: prevents landslides, conserves water and soil, and beautifies the surrounding environment
4.Reservoir and river dykes: effectively prevents landslides; coastal engineering: its soft texture, high toughness and strong corrosion resistance can buffer wave scouring and seawater corrosion
