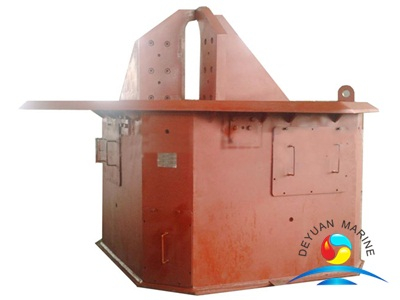

Fork type Hydraulic Shark Jaw for anchor handling tug vessels

Brand: Deyuan Marine
Drive: Hydraulic
Bollard pull: 40~200 ton
Holding capacity: 100~700 ton
Power required: 15~37KW
Shark Jaw type: Fork type
Certificate: ABS,DNV,RINA,CCS

Product Description

Fork Type Shark Jaw :
Features :
*We builds a full range of shark Jaws for anchor handling tug supply vessels. Standard ratings Are 100,200,300,400,500 and 700 Metric Tons and all units perform quick release at the rated Load.
*We customize our equipment to suit the operating characteristics of your vessels. Third party certificate, load tests ,release tests and load monitoring systems are available options.
*Intended for us with both chain and wire rope. Replaceable jaw inserts are available for different chain sizes.
*When the jaws are retracted they are flush with the deck in their own watertight frame with drain fittings.
*All operations are remotely controlled from a control panel located in the pilot house and/or locally. Controls take advantage of PLC based technology allowing for easier installation with less electrical wiring.A dedicated hydraulic power unit is provided with each unit.
More fork type shark jaw can be offered,pls contact us for more details.
