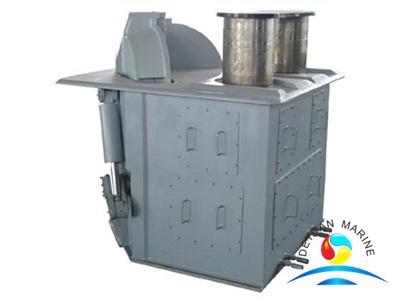

100~700T Triplex type Hydraulic Shark Jaw and Towing Pins

Brand: Deyuan Marine
Drive: Electro-hydraulic
Bollard pull: 40~200 ton
Holding capacity: 100~700 ton
Power required: 15~37KW
Towing Pin type: Inline vertical
Certificate: ABS,DNV,RINA,CCS
Availability:

Product Description

Shark Jaw :
Shark jaw/towing pin Features :
*Capacity:100 to 700 tonnes SWL
*Electro-hydraulic(variable, fixed, multi speed, hazardous environments)
*Inline vertical type Towing Pin
*Angular close top type Towing Pin
*Combine Modular type towing Pin& shark Jaw
Shark Jaw Towing Pin Bollard Pull Holding Capacity Power Required
Model Model (ton) (ton) (kw)
SJ-100 TP-100 40 100 15
SJ-200 TP-200 60 200 22
SJ-300 TP-300 85 300 22
SJ-400 TP-400 120 400 30
SJ-500 TP-500 150 500 30
SJ-700 TP-700 200 700 37

More shark jaw can be offered,pls contact us for more details.
