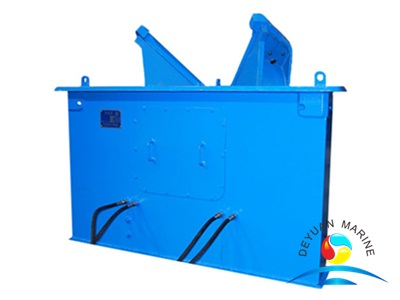

100 Ton Marine Hydraulic Shark Jaws With BV Certificate

Place of Origin: China (Mainland)
Brand : Deyuan Marine
Working pressure: 20Mpa
Capacity: 100T
Max. rope size: 30 to 75 mm dia.
Max. chain size: 28 to 70 mm dia.
Height of lift pin: 250 mm Above deck
Height of towing pin : 380 mm Above deck
Condition: New
Customized: Accept
Transport Package: Export standard
Certificate: CCS, ABS, BV

Product Description

100 Ton Hydraulic Shark Jaws


Hydraulic driven shark jaw and towing pin with standard features, such as heavy duty marine grade hydraulic cylinders, remote controlled operations, etc. Available in various standard tonnage and chain sizes. Comes with load and witness testing as well as various quality certification.


100 Ton Hydraulic Shark Jaws Parameter

Working pressure: 20Mpa
Capacity: 100T
Max. rope size: 30 to 75 mm dia.
Max. chain size: 28 to 70 mm dia.
Height of lift pin: 250 mm Above deck
Height of towing pin : 380 mm Above deck
Contrl: Local & wheelhouse remote control panel

More 100 ton hydraulic shark jaws can be offered,pls contact us for more details.


The other shark jaws spc.

Shark Jaw ModelTowing pin modelBollard pullHolding capacityPower reqired
(ton)(ton)(kw)
SJ-100TP-1004010015
SJ-200TP-2006020022
SJ-300TP-3008530022
SJ-400TP-40012040030
SJ-500TP-50015050030
SJ-700TP-70020070037

More Hydraulic Shark Jaws can be offered,pls contact us for more details.
