Origin: Made in China
Working full: 150Ton
Application: AHTS vessel
Combined with: Shark jaw
Type: Column
Certificate: CCS, BV, NDV etc
Delivery time: 10-30days
Packing: Wooden package
Payment term: TT, Paypal, Western union
Brand: Deyuan Marine
Product Description

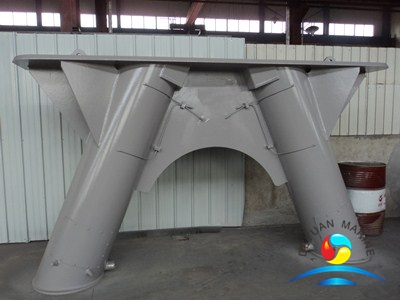

150Ton Marine Ship Towing Pin For Shark Jaw
The hydraulic towing pin located at forward side of the shark jaw. It is designed to restrain the side to side movement of chain or wire rope while they are captured by the shark jaws during anchor handling operation. It makes the anchor handling operation much easier and safer.
This shark jaw towing pin always keep the chain or wire rope moving between them. When vessel towing some other cargoes even the vessel turning its direction, wire rope will not swing badly, so the towing pin also play a role to avoid outboard and wire rope broken.
We can design towing pin capacity in a range of 100T to 700T, most of our towing pin can provide certificate such as ABS, BV, CCS, LR, GL, DNV etc are available. More marine deck equipment towing pin information, kindly contact with us!
Type | TP-100 | TP-200 | TP-300 | TP-400 | TP-500 | TP-700 |
Bollard Pull | 40ton | 60ton | 85ton | 120ton | 150ton | 200ton |
Holding Capacity | 100ton | 200ton | 300ton | 400ton | 500ton | 700ton |
Power Reqired | 15kw | 22kw | 22kw | 30kw | 30kw | 37kw |
More towing pin can be offered,pls contact us for more details.
