Data Simulator For Echo Sounder

  • DEYUAN MARINE

Product Description

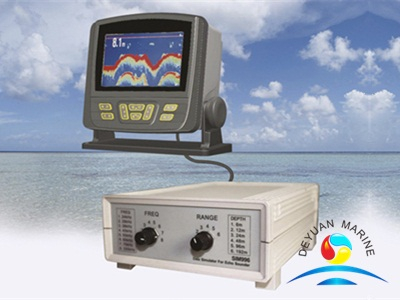

Data Simulator For Echo Sounder
Introduction:
Data Simulator is a precision instrument designed for generating the  reply echo pulse for echo sounders and fish finders.
Theory:
Data Simulator receives the incoming pulse parameters from echo sounder/fish finder and generates echo pulse to simulate the bottom or fish information and then sends the information back.
Data Simulator For Echo Sounder
Item Specification
Measurement 160X200X75mm
weight 0.6kg
Power supply DC8V-25V
consumption <1.2W
Emission Freq 24kHz,28kHz,38kHz,45kHz,50kHz,60kHz,75kHz,200kHz
Depth options 6m,12m,24m,48m,96m,192m
Temperature 0-50℃
Humidity 10%-90%relative
Storage -20-70℃
protection IPX2
