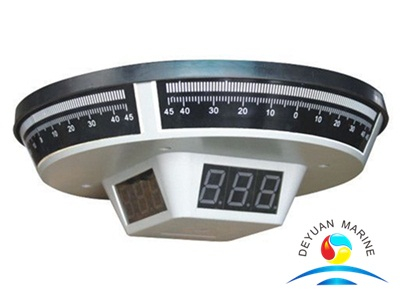

RAI900-1 Three-face Rudder Angle Indicator
Three-face Rudder Angle Indicator is used to ship rudder Angle information accurately in real time on the bridge, the cockpit need to display the rudder Angle information such as a set of device for display.
Main Parameters :
| Project | Data |
| System rudder Angle display error | not more than 1 ° (relative to the actual rudder Angle) |
| Power supply | DC24V |
| Measurement range of rudder angle | －50°～＋50° |
| Rudder angle sampling resolution | 0.1°(12-digit A/D converter) |
| Rudder angle data transmission frequency | 5 times/s |
| Default sampling step for linear compensation | 5° |
| Input data port | RS-422 standard |
| Format of input data | in compliance with IEC-61162 |
| Ambient temperature | －15℃～＋55℃ |
| Humidity | 93％±2％(ambient temperature 25℃～40℃) |
