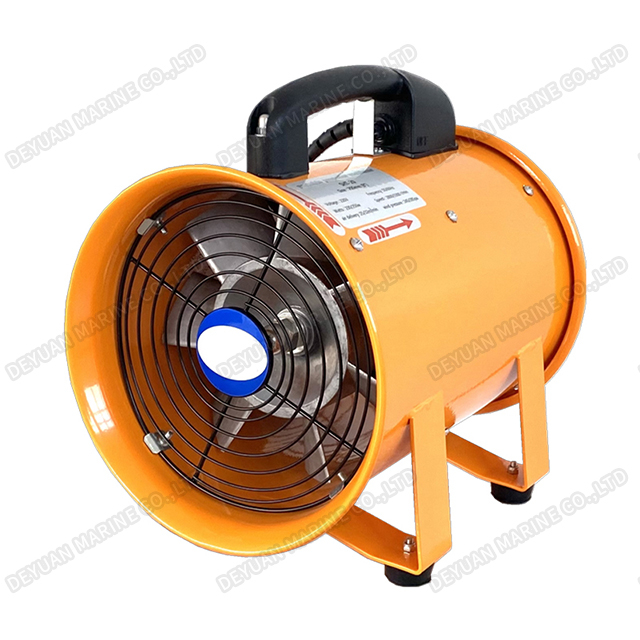

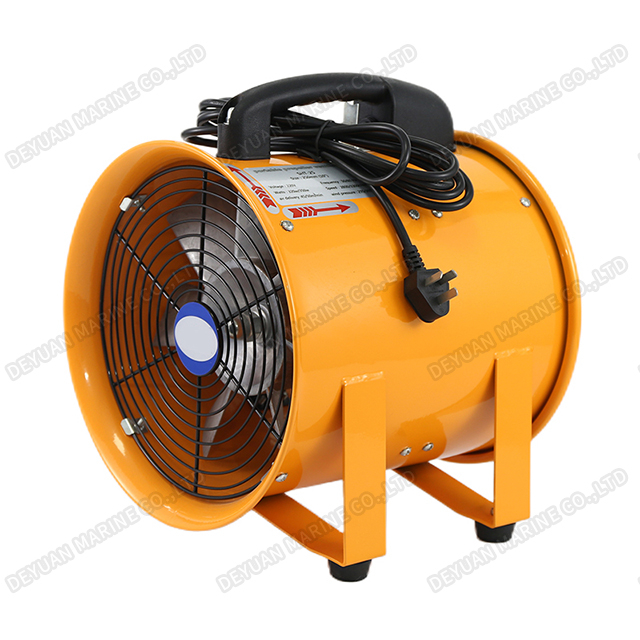

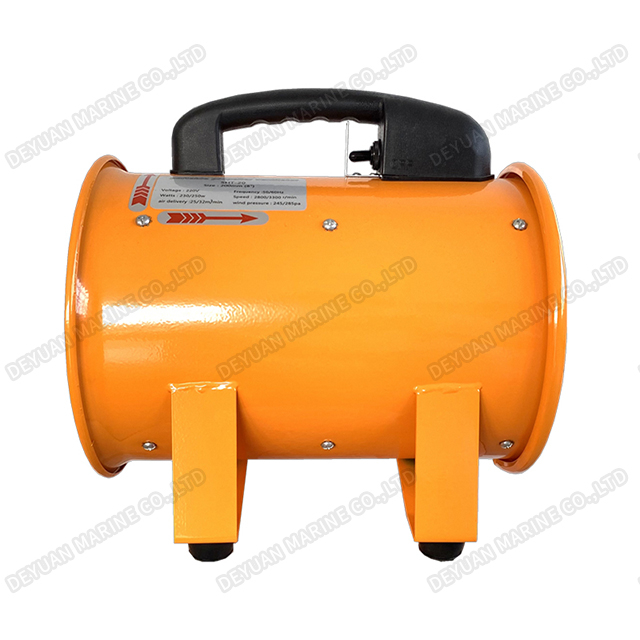

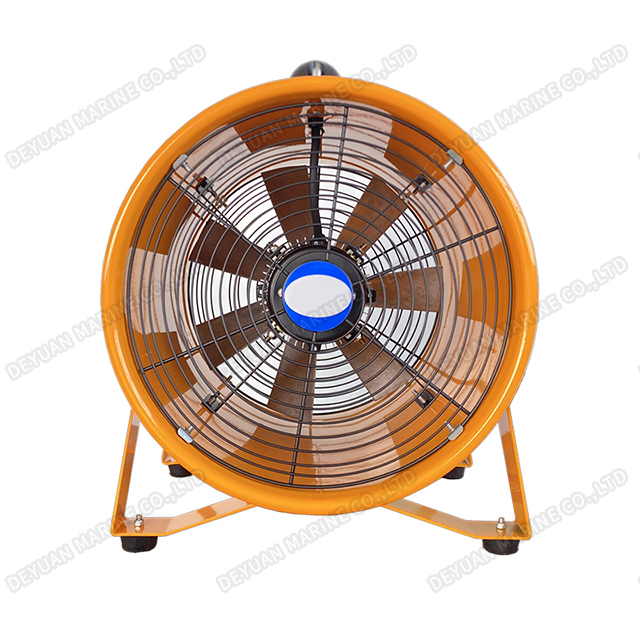

8"/10"/12"/14" Portable Axial Flow Fan

Brand: Deyuan Marine
Size: 8"/10"/12"/14"
Blade: 7pcs
Power: 230W~900W
Flow Rate: 28~95m3/min
Pressure: 245~673Pa
Velocity: 30m/s
Power Supply: 220V 50Hz/60Hz
Phase: Single/3P
Availability:

Product Description

8"/10"/12"/14" Portable Axial Flow Fan


The body of the portable fan is made of hot-dip zinc plate with spray paint, the impeller is made of aluminum alloy, galvanized mesh cover, glass fiber reinforced nylon cast handle, and aluminum shell motor structure. It is light in weight and easy to move; the portable fan is novel in style and reasonable in structure; safe and durable, easy to use; excellent in performance and strong in suction; the portable fan can be easily connected to the air guide.


The portable fan is suitable for exhaust or air supply in containers and tunnels, and for the emission of harmful gases, smoke, dust, hot air, etc. generated by mechanical manufacturing and welding operations.


Features:


Strong air pressure, high speed, large air volume, strong suction, reasonable structure, and excellent performance


Structure:


1. Ventilator shell: made of hot-dip galvanized plate, with automotive coating sprayed on the surface


2. Impeller: made of aluminum alloy, 7 blades.


3. Fan cover: dust removal, galvanized


4. Switch: press/button.


5. Integrated plastic handle, easy to carry.


6. Motor: wound with international standard copper wire.


7. Aluminum cast integrated motor housing with heat dissipation ribs



Available sizes:


1. 200mm, 250mm, 300mm, 350mm, light weight, with handle, with integrated switch


2. 400mm, 450mm, 500mm, 600mm, can be equipped with a bracket to adjust the blowing angle. There are handles on both sides for easy carrying.


Voltage: 36V, 110V, 220V, 380V, 440V.


Frequency: 50Hz, 60Hz, 50/60Hz universal


Plug: European, American, British, Japanese, etc.

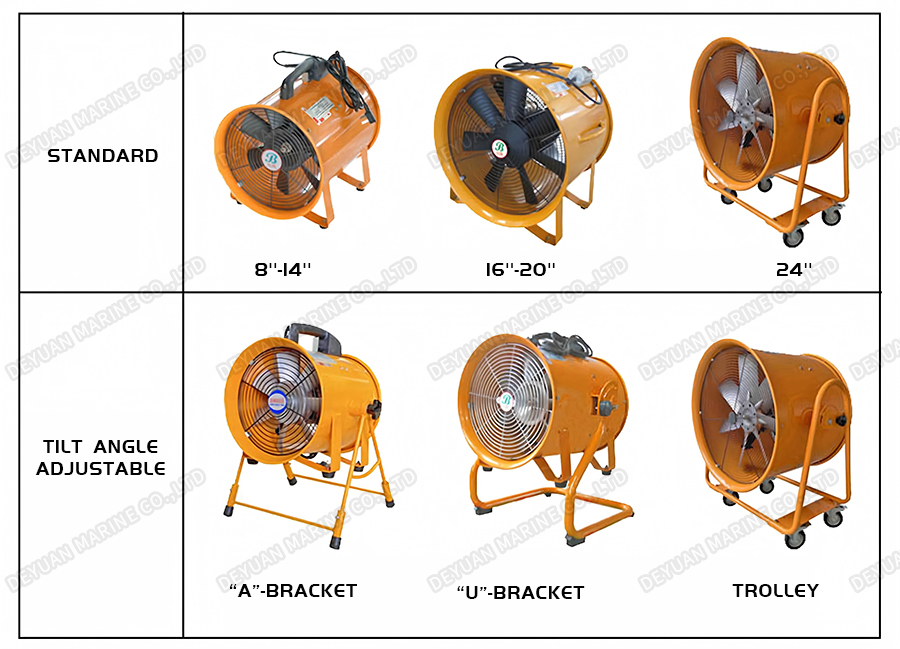

1620 Portable Axial Fan-DEYUAN MARINE 0


Models and Parameters of 8"/10"/12"/14" Portable Axial Flow Fan

Model Size
(mm)
Voltage(V-) Frequency
(Hz)
Power
(W)
R.P.M(rpm) Air volume
(m³/min)
Pressure
(Pa)
Noise
(dB(A))
SHT-20 φ200 220-240/380-415 50/60 230 2800 28 245 60
SHT-20 φ200 110 60 250 3300 32 285 60
SHT-25 φ250 220-240/380-415 50/60 320 2800 45 295 68
SHT-25 φ250 110 60 350 3300 50 305 68
SHT-30 φ300 220-240/380-415 50/60 520 2800 65 375 71
SHT-30 φ300 110 60 550 3300 78 440 71
SHT-35 φ350 220-240/380-415 50/60 750 2800 82 598 76
SHT-35 φ350 110 60 900 3300 95 673 76



A variety of matching ventilation hoses are also available:

Ventilation Hose-DEYUAN MARINE

More ventilation hoses are available, welcome to inquire
