Product Description

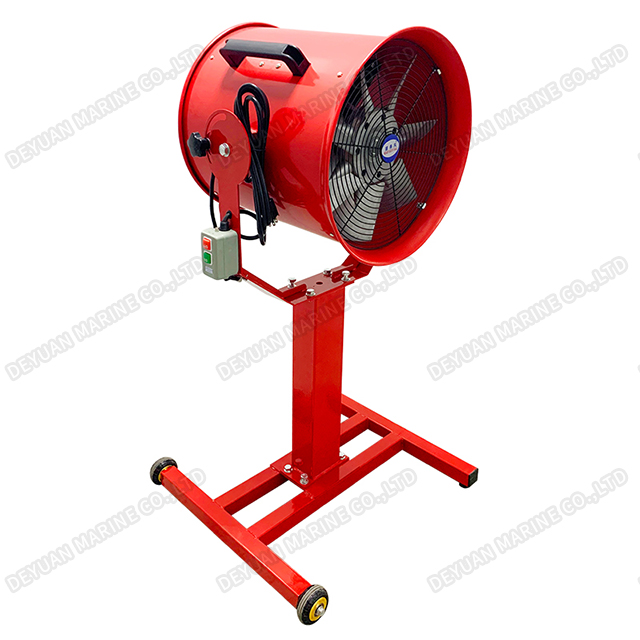

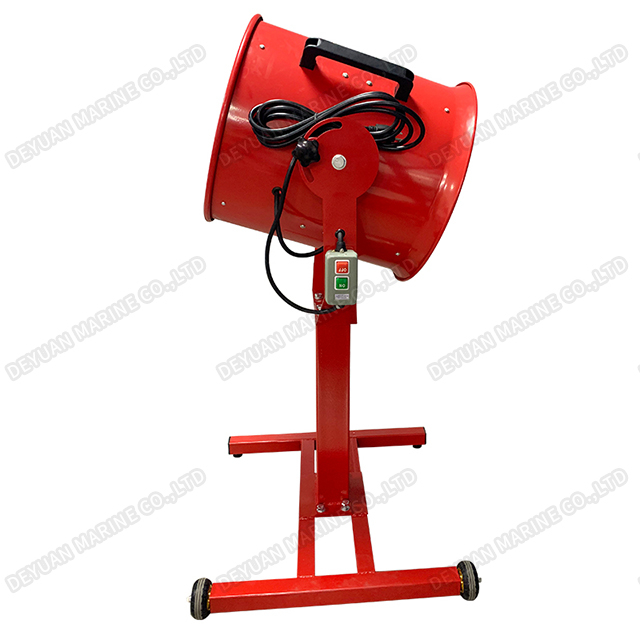

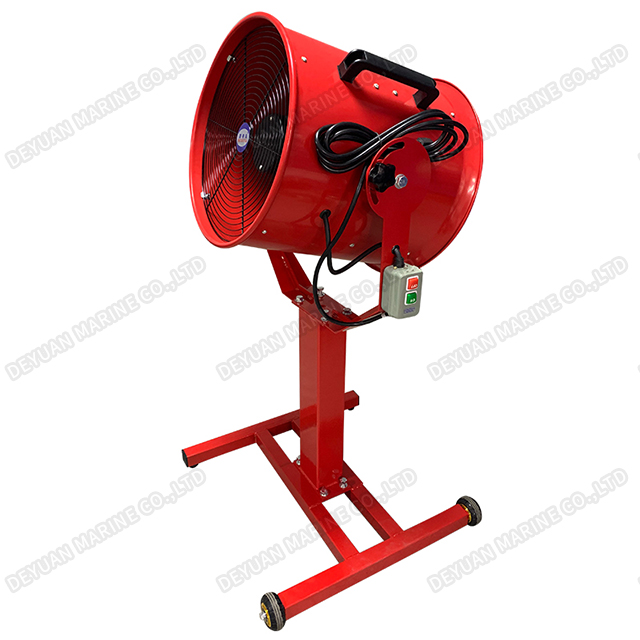

16" Tilt Adjustable T-frame Mobile Fan
This product is equipped with 2 small tugs and can be used as a hand-pushed mobile fan; the U frame can also be disassembled and directly installed on the wall as a wall-mounted fan, which does not take up work space. The fan can be adjusted to blow air at an angle, and the fan blades can be adjusted to change the air volume and air pressure. One machine can meet the needs of different occasions.
Highlights:
1.Flexible installation, mobile and wall-mounted design:

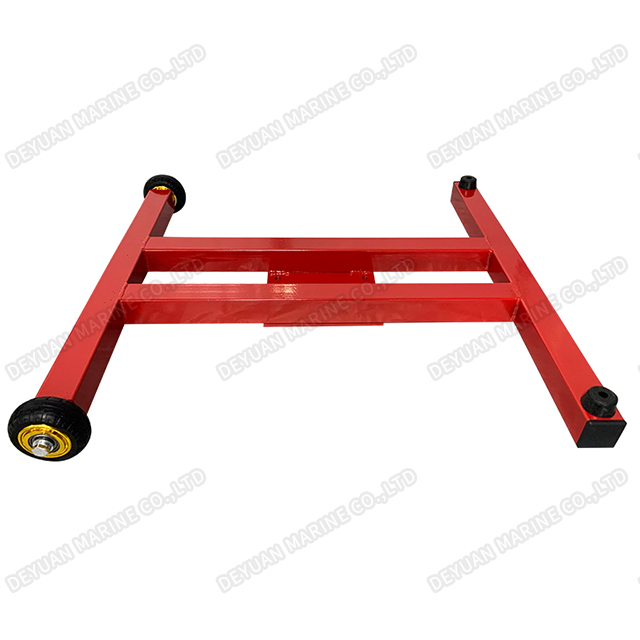

The H-shaped base with a small tugboat at one end is small, flexible and stable, and the base can be installed separately. The "U" frame can be installed on the base to adjust the blowing angle of the fan, or the "U" frame can be directly installed on the wall to become a wall-mounted fan without occupying work space.
2.One machine with multiple uses:
The fan blade angle can be adjusted, so that different air volumes and air pressures can be output. One machine can meet the ventilation needs of different spaces.
3.CAD barrel optimization design:
One end of the barrel adopts a bell-shaped wind collection design to reduce noise while increasing wind pressure, so that the wind blows farther and straighter. A handle is provided on one side of the barrel to facilitate dragging and adjusting the barrel elevation.
Use:
Ports, docks, cargo Loading and unloading operations in large logistics places such as cabinet transfer stations; engineering, bridges and tunnels, workstations, fire rescue and other work places that require smoke and dust dispersal, long-distance, high-efficiency, and long-distance air supply.
Structure:
1. Ventilator housing: made of hot-dip galvanized sheet, with automotive coating sprayed on the surface.
2. Impeller: made of aluminum alloy, 7 blades.
3. Fan cover: dust removal, galvanized.
4. Switch: press the button.
5. High bracket: high bracket designed for practical applications.
6. Motor: wound with international standard copper wire.
7. Aluminum cast integrated motor housing with heat dissipation ribs.
Voltage: 36V, 110V, 220V, 380V, 440V.
Frequency: 50Hz, 60Hz, 50/60Hz universal.
Plug: without plug.
Models and Parameters of Axial Flow Fan
| Model | Size (mm) | Voltage(V-) | Frequency (Hz) | Power (W) | R.P.M(rpm) | Air volume (m³/min) | Pressure (Pa) | Noise (dB(A)) |
| SHT-20 | φ200 | 220-240/380-415 | 50/60 | 230 | 2800 | 28 | 245 | 60 |
| SHT-20 | φ200 | 110 | 60 | 250 | 3300 | 32 | 285 | 60 |
| SHT-25 | φ250 | 220-240/380-415 | 50/60 | 320 | 2800 | 45 | 295 | 68 |
| SHT-25 | φ250 | 110 | 60 | 350 | 3300 | 50 | 305 | 68 |
| SHT-30 | φ300 | 220-240/380-415 | 50/60 | 520 | 2800 | 65 | 375 | 71 |
| SHT-30 | φ300 | 110 | 60 | 550 | 3300 | 78 | 440 | 71 |
| SHT-35 | φ350 | 220-240/380-415 | 50/60 | 750 | 2800 | 82 | 598 | 76 |
| SHT-35 | φ350 | 110 | 60 | 900 | 3300 | 95 | 673 | 76 |
| SHT-40 | φ400 | 220-240/380-415 | 50/60 | 1100 | 2800 | 96 | 700 | 80 |
| SHT-40 | φ400 | 110 | 60 | 1200 | 3300 | 270 | 1000 | 80 |
| SHT-45 | φ450 | 220-240/380-415 | 50 | 1500 | 2800 | 200 | 970 | 83 |
| SHT-45 | φ450 | 110 | 60 | 600 | 1700 | 200 | 750 | 83 |
| SHT-50 | φ500 | 220-240/380-415 | 50 | 2200 | 2800 | 330 | 1050 | 88 |
| SHT-50 | φ500 | 110 | 60 | 750 | 1700 | 250 | 800 | 88 |
| SHT-60 | φ600 | 220-240/380-415 | 50 | 2200 | 1400 | 300 | 1100 | 92 |
| SHT-60 | φ600 | 110 | 60 | 2200 | 1680 | 330 | 1186 | 92 |
A variety of matching ventilation hoses are also available:
More ventilation hoses are available, welcome to inquire
