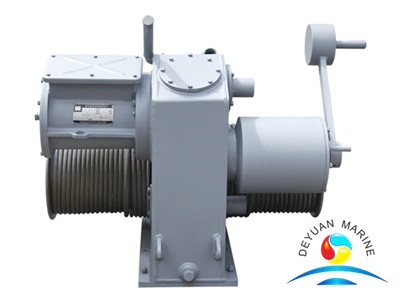

40KN Electrical Lifeboat Winch SOLAS Approved Type
This winch is designed and built according to the latest regulations of SOLAS and international standards, Which has two types: the left and right one. The left one is shown here and the right one is made symmetrically. Decelerating gear box is used of N68 (GB443-84) machine oil lubricationused,and the oil is agreement of 45 liters. Winch installed, Before the test, move the motor to check if the drum rotation correct or not (The rotation should be to the hoisting direction), or, we should adjust the motor wiring.
Winch data:
Model | Safety working load | Hoisting load | Hoisting rope speed | Descending rope speed | Motor |
(KN) | (KN) | (m/min) | (m/min) | (kw) |
DZB25 | 25 | 20 | ≥10 | 90~110 | 5 |
D40S | 40 | 20 | ≥10 | 80~90 | 5 |
D42S | 42 | 21 | ≥10 | 80~110 | 5.5 |
D50S | 50 | 28 | ≥10 | 95~125 | 5.5 |
D63S | 63 | 30 | ≥10 | 80~120 | 7.5 |
D100S | 100 | 70 | ≥10 | 90~120 | 15 |
D125S | 125 | 70 | ≥8 | 90~120 | 15 |
D170S | 175 | 90 | ≥8 | 90~120 | 22 |
PW100S | 100 | 100 | ≥5 | 50~60 | 11 |
PW145S | 145 | 145 | ≥5 | 40~60 | 18.5 |
PW170S | 170 | 170 | ≥5 | 40~60 | 22 |
