Product Description

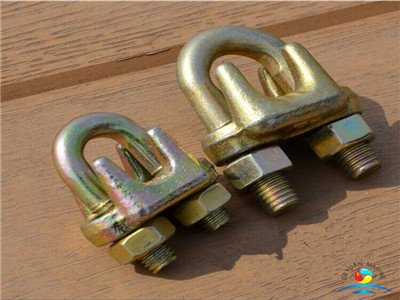

US Type Galv Malleable Wire Rope Clips
| Size | Dimensions(in） | Weight 100pcs | ||||||
| (in) | A | B | C | D | E | G | H | (lbs) |
| 1/8 | 1/4 | 13/16 | 1/2 | 1/2 | 7/16 | 1/2 | 15/16 | 3.3 |
| 3/16 | 1/4 | 31/32 | 5/8 | 9/16 | 1/2 | 9/16 | 1 1/16 | 6.6 |
| 1/4 | 5/16 | 1 7/32 | 7/8 | 11/16 | 5/8 | 11/16 | 1 3/8 | 11.42 |
| 5/16 | 5/16 | 1 7/32 | 7/8 | 11/16 | 11/16 | 11/16 | 1 3/8 | 13.1 |
| 3/8 | 3/8 | 1 5/8 | 1 | 7/8 | 13/16 | 7/8 | 1 5/8 | 22 |
| 7/16 | 3/8 | 1 5/8 | 1 | 7/8 | 13/16 | 15/16 | 1 5/8 | 25.2 |
| 1/2 | 7/16 | 2 | 1 1/4 | 1 | 1 1/16 | 1 | 1 7/8 | 38.4 |
| 9/16 | 1/2 | 2 5/16 | 1 15/32 | 1 3/16 | 1 3/16 | 1 1/8 | 2 3/16 | 49.73 |
| 5/8 | 1/2 | 2 5/16 | 1 15/32 | 1 3/16 | 1 5/16 | 1 1/8 | 2 3/16 | 54.76 |
| 3/4 | 9/16 | 2 9/16 | 1 3/4 | 1 11/32 | 1 1/2 | 1 1/4 | 2 7/16 | 80.53 |
| 7/8 | 5/8 | 3 1/16 | 1 13/16 | 1 5/8 | 1 3/4 | 1 3/4 | 2 7/8 | 117.35 |
| 1 | 5/8 | 3 3/8 | 2 1/16 | 1 3/4 | 1 15/16 | 2 | 3 | 150.6 |
| 1 1/8 | 3/4 | 3 7/8 | 2 3/16 | 2 1/16 | 2 3/16 | 2 1/8 | 3 7/16 | 243 |
| 1 1/4 | 3/4 | 3 7/8 | 2 3/16 | 2 1/16 | 2 3/8 | 2 1/2 | 3 7/16 | 262 |
| 1 3/8 | 7/8 | 4 1/2 | 2 | 2 9/16 | 2 7/8 | 3 1/8 | 4 3/16 | 456 |
| 1 1/2 | 7/8 | 4 1/2 | 2 | 2 9/16 | 3 | 3 1/4 | 4 1/4 | 512 |
