Product Description

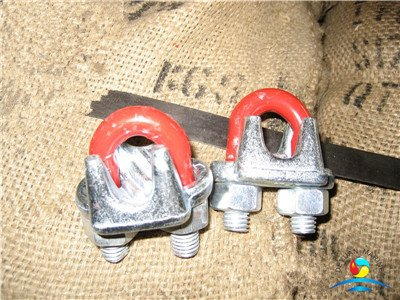

Austria Drop Forged Malleable Steel Type Galvanized Wire Rope Clips
| Size | Dimensions(mm) | Weight 100pcs | ||||||
| (in) | A | B | C | D | E | F | G | (lbs) |
| 1/8 | 9 | 9.5 | 12 | 4 | 7 | 18 | 16 | 0.8 |
| 3/16 | 11 | 10 | 13 | 5 | 8.5 | 22 | 19 | 1.3 |
| 1/4 | 13 | 10.5 | 15 | 5 | 10 | 24 | 23 | 1.6 |
| 5/16 | 15.5 | 12 | 19 | 6 | 11.5 | 28 | 28 | 2.5 |
| 3/8 | 19 | 16.5 | 22 | 8 | 13 | 32.5 | 34 | 5.3 |
| 7/16 | 20 | 18 | 23 | 8 | 16 | 36 | 36 | 6.7 |
| 1/2 | 24 | 20 | 30 | 10 | 18.5 | 42 | 46 | 11 |
| 9/16 | 25 | 23.5 | 30 | 10 | 22.5 | 43 | 46 | 12.7 |
| 5/8 | 29 | 26 | 34 | 12 | 25 | 48.5 | 51 | 19.2 |
| 3/4 | 33 | 29 | 37 | 12 | 30 | 53 | 63 | 24.4 |
| 7/8 | 36 | 31 | 44 | 12 | 33 | 57 | 74 | 30 |
| 1 | 42 | 33 | 50 | 14 | 35 | 65 | 81 | 42 |
| 1 1/8 | 50 | 36 | 50 | 16 | 43 | 76 | 92 | 55 |
| 1 1/4 | 54 | 40.5 | 55 | 16 | 49 | 83 | 98 | 68 |
| 1 1/2 | 58 | 44 | 60 | 16 | 55 | 89 | 124 | 80 |
| 1 3/4 | 68 | 57 | 60 | 18 | 72 | 111 | 139 | 171 |
| 2 | 75 | 61 | 90 | 18 | 72 | 118 | 157 | 194 |
