Product Description

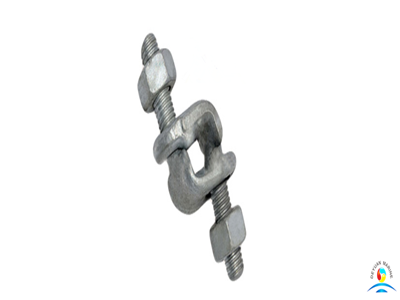

US Type Carbon Steel Forged Galvanize Fist Grip Clips
| Size | Dimensions(in) | weight 100pcs | ||||||||
| (in) | A | B | C | D | E | G | Approx L | M | N | (lbs) |
| 3/16-1/4 | 0.25 | 1.25 | 0.34 | 0.94 | 0.38 | 1.28 | 1.36 | 0.69 | 1.47 | 18 |
| 5/16 | 0.31 | 1.34 | 0.44 | 1.06 | 0.38 | 1.47 | 1.94 | 0.69 | 1.56 | 28 |
| 3/8 | 0.38 | 1.59 | 0.5 | 1.06 | 0.44 | 1.81 | 2.38 | 1.75 | 1.88 | 40 |
| 7/16-1/2 | 0.5 | 1.88 | 0.56 | 1.25 | 0.5 | 2.19 | 2.75 | 0.88 | 2.19 | 70 |
| 9/16-5/8 | 0.63 | 2.28 | 0.69 | 1.5 | 0.63 | 2.69 | 3.5 | 1.06 | 2.63 | 100 |
| 3/4 | 0.75 | 2.69 | 0.88 | 1.81 | 0.75 | 2.94 | 3.75 | 1.25 | 3.06 | 175 |
| 7/8 | 0.88 | 2.97 | 0.97 | 2.13 | 0.75 | 3.31 | 4.13 | 1.25 | 3.14 | 225 |
| 1 | 1 | 3.06 | 1.19 | 2.25 | 0.75 | 3.72 | 4.63 | 1.25 | 3.53 | 300 |
| 1-1/8 | 1.13 | 3.44 | 1.28 | 2.38 | 0.88 | 4.19 | 5.25 | 1.44 | 3.91 | 400 |
| 1-1/4 | 1.25 | 3.56 | 1.34 | 2.5 | 0.88 | 4.25 | 5.25 | 1.44 | 4.03 | 400 |
| 1-3/8-1-1/2 | 1.5 | 4.13 | 1.56 | 3 | 1 | 5.56 | 7 | 1.63 | 4.66 | 700 |
