Product Description

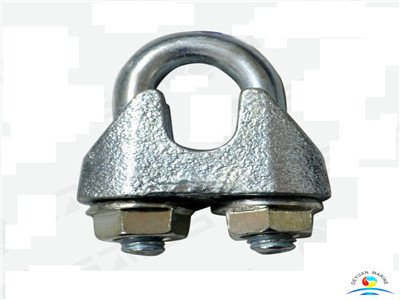

DIN1142 Malleable Casting CE Approved Wire Rope Clips
| Size | Dimensions(mm) | Weight 100pcs | ||||||
| (mm) | a | b1 | b2 | d | h1 | h2 | l | (lbs) |
| 5 | 13 | 7 | 13 | 5 | 25 | 13 | 25 | 5 |
| 6.5 | 17 | 8 | 16 | 6 | 32 | 14 | 30 | 9 |
| 8 | 20 | 10 | 20 | 8 | 41 | 18 | 39 | 18 |
| 10 | 24 | 12 | 20 | 8 | 46 | 21 | 40 | 20 |
| 13 | 30 | 15 | 28 | 13 | 64 | 29 | 55 | 61 |
| 16 | 35 | 18 | 32 | 14 | 76 | 35 | 64 | 95 |
| 19 | 36 | 22 | 32 | 14 | 83 | 40 | 68 | 108 |
| 22 | 40 | 24 | 34 | 16 | 96 | 44 | 74 | 150 |
| 26 | 50 | 26 | 38 | 20 | 111 | 51 | 84 | 258 |
| 30 | 55 | 34 | 41 | 20 | 127 | 59 | 95 | 309 |
| 34 | 60 | 38 | 45 | 22 | 141 | 67 | 105 | 470 |
| 40 | 65 | 44 | 49 | 24 | 159 | 77 | 117 | 591 |
