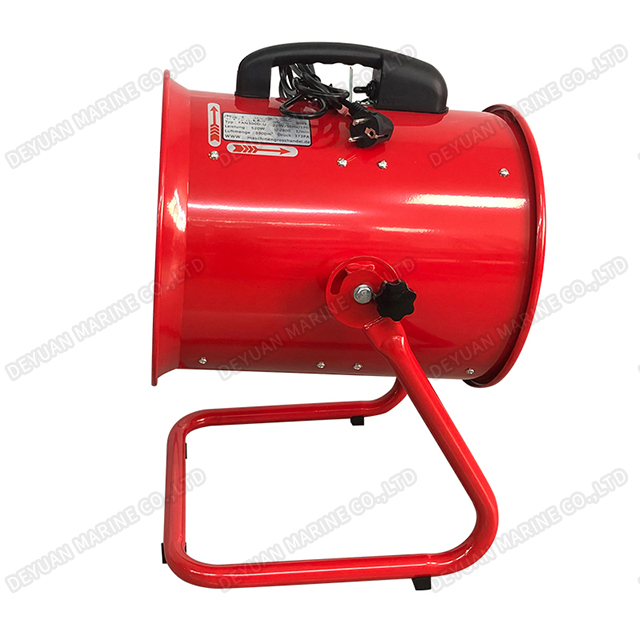

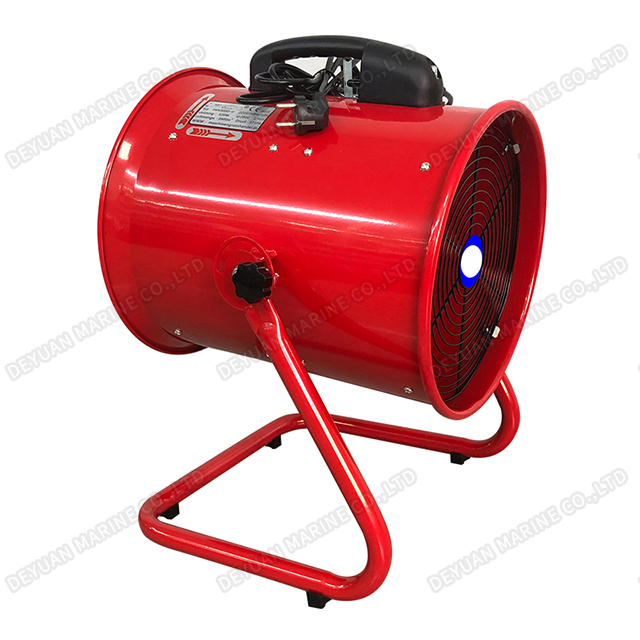

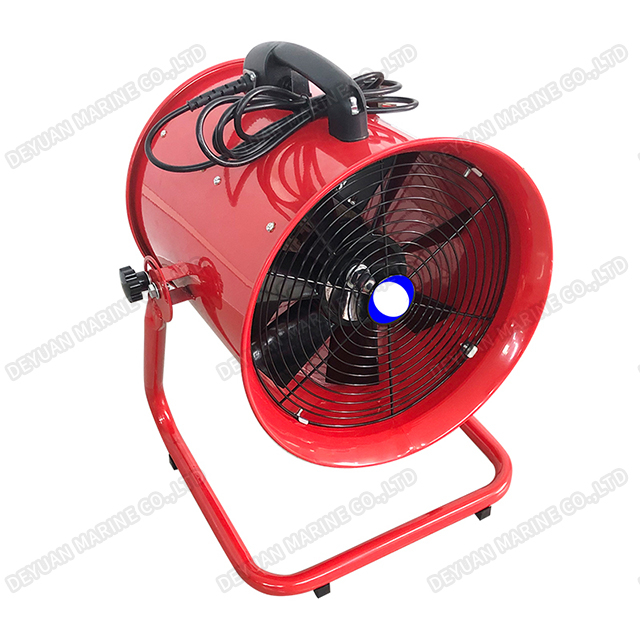

Tilt Adjustable U-Frame Portable Axial Flow Fan

Brand: Deyuan Marine
Type: U-Frame adjustable
Size: 300~400mm
Blade: 7pcs
Power: 520W~1200W
Flow Rate: 78~270m3/min
Pressure: 440~1000Pa
Noise: 71~80db
Power Supply: 220V 50Hz/60Hz
Phase: Single/3P
Availability:

Product Description

Tilt Adjustable U-Frame Portable Axial Flow Fan


The whole series of adjustable elevation portable fans (∅200mm-600mm) can be equipped with different types of tripods to adjust the blowing angle 360°, which is very convenient to use. It can also be used as a dancing star fan to blow air dancers, or to increase the stage effect, photography effect, snow machine, bubble machine, spray machine and other matching use.


The body of the portable fan is made of hot zinc dipped plate with paint, the impeller is made of aluminum alloy, galvanized mesh cover, glass fiber reinforced nylon material casting handle, and aluminum shell motor structure. It is light in weight and easy to move; novel in style and reasonable in structure; safe and durable, easy to use; excellent in performance and strong in suction; the portable fan can be easily connected to the air guide.


The portable fan is suitable for exhaust or air supply in containers and tunnels, and for the emission of harmful gases, smoke, dust, hot air, etc. generated by mechanical manufacturing and welding operations.


The product models are 200mm-600mm, the voltages are 36V, 110V, 220V, 240V, 380V, equipped with various British, American, French, Great Wall plugs and 3-meter long wires.


Features:

Strong air pressure, high speed, large air volume, strong suction, reasonable structure and excellent performance.


Angle adjustable bracket: A/U bracket, easy to use.


Structure:

1. Ventilator housing: made of hot-dip galvanized sheet, with automotive coating sprayed on the surface


2. Impeller: made of aluminum alloy, 7 blades.


3. Fan cover: dust removal, galvanized


4. Switch: button.


5. Integrated plastic handle, easy to carry.


6. Motor: wound with international standard copper wire.


7. Aluminum cast integrated motor housing with heat dissipation ribs.


Available sizes:

1. A bracket: 8"/10"/12"


2. U bracket: 12"/14"/16"


Voltage: 36V, 48V, 110V, 220V, 380V, 440V


Frequency: 50Hz, 60Hz, 50/60Hz universal


Plug: European, American, British, Japanese, etc.


1620 Portable Axial Fan-DEYUAN MARINE 0


Models and Parameters of Tilt Adjustable U-Frame Portable Axial Flow Fan

Model Size
(mm)
Voltage(V-) Frequency
(Hz)
Power
(W)
R.P.M(rpm) Air volume
(m³/min)
Pressure
(Pa)
Noise
(dB(A))
SHT-30 φ300 220-240/380-415 50/60 520 2800 65 375 71
SHT-30 φ300 110 60 550 3300 78 440 71
SHT-35 φ350 220-240/380-415 50/60 750 2800 82 598 76
SHT-35 φ350 110 60 900 3300 95 673 76
SHT-40 φ400 220-240/380-415 50/60 1100 2800 96 700 80
SHT-40 φ400 110 60 1200 3300 270 1000 80



A variety of matching ventilation hoses are also available:

Ventilation Hose-DEYUAN MARINE

More ventilation hoses are available, welcome to inquire
