Product Description

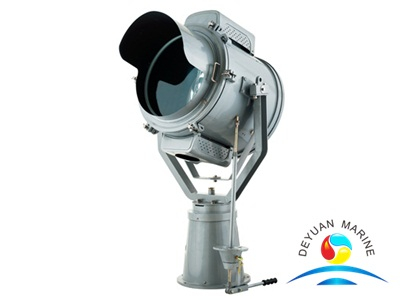

TZ1 Marine Aim Searching Light 1000W With Lifter For Boat
The TZ1 series is a professional wireless remote control search light designed for long-range illumination in demanding environments. It is widely used for ship night navigation, lifesaving operations, warning signals, and aim searching.
With its robust construction, powerful output, and convenient wireless control, the TZ1 series is an ideal lighting solution for maritime and other professional search applications.
Products characteristic:
1. Equipped the sphere toughened glass reflector and the device of focus adjustmentwhich can adjust the focus up and down, front and black neatly, and has the functionssuch as high luminlus intensity, far illumination distance.
2. TZ1 Has steel shell, ball plate mounted on base, also equipped with lifting gear which can control the light body by hand to rotate for 350 horizontally and pitching 30°, Equipped the electical box when supply DC110V please remark clearwhen order.
3. TZ1-A Has stainless steel shell, a micro motor is mounted on base, and can operatethe light body to rotate for 350° horizontally and pitching 30° by controller.
| Type | TZ1 (Manual type) | TZ1-A (Automatic type) |
| Voltage | DC110V/AC220V | DC110V/AC220V |
| Power | 1000W | 1000W |
| Lamp holder | Forspecial use | Forspecial use |
| lluminant | Sphericity mercury xenon light | Sphericity mercury xenon light |
| Luminousf lux | 60000lm | 60000lm |
| Protection class | IP55 | IP55 |
| Cable outside diameter | Φ10-Φ12 | Φ10-Φ12 |
| Weight | 58kg | 97kg |
| Annex | Lifter, Ballast | Controller, Ballast |

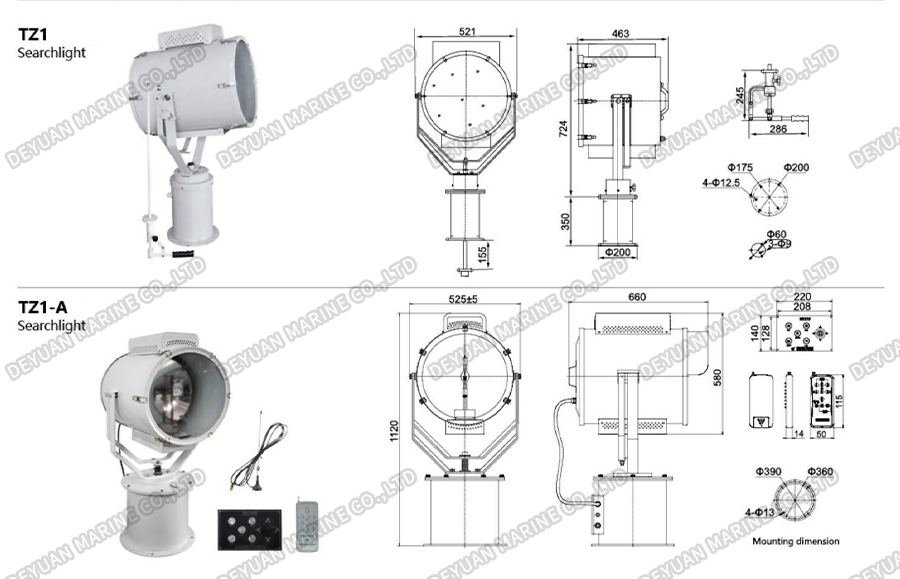

Reference Drawing:
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
