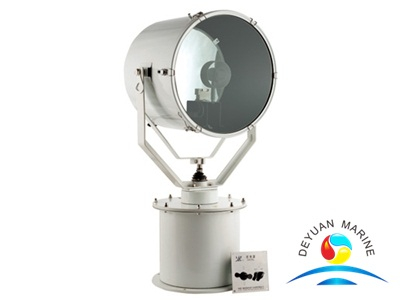

TG 28 2000W High Powered Marine Searchlights for ships

Brand: DEYUAN MARINE
Type: TG28
Power: 2000W
Lamp holder: GY16
Luminous flux: 53000
Protection class: IP56
Weight: 31.5KG

Product Description

TG28 2000W High Powered Searchlights for ships


Remark:
1.TG28.TG28-A.TG28-B fit for illuminating ship,port,station,plaza and building site,the shell adopt stainless steel,high purity reflector, and adopt imported light source,it have the feature of high strength,durability,convenient use,and safe and reliable electric performance,it can be used in the environment above -20degree.
2.TG28 adopts cabin operation,equipped with hand lifting gear device,which can control light body by hand to rotate for 350degree horizontally and bend for 30 degrees vertically,with flexible convenient operation.
3.TG28-A adopts remote operation,cast aluminum alloy base,there are mini gear motor for controlling up and down,front and back,also,equipped with special control box which can operate the light on control table to horizontally bend for 20degree-50degree,bend total vertical 3degree/sec.
4.TG28-B adopt deck operation,it can control body to rotate for 350 degree horizontally bend for 30 degree,with flexible and convenient operation.

5.This is series of lamp have the feature of small measurement light weight and long distance illumination.


Specification:
Type  Voltage  Power  Electric light source Distance  Luminous flux Lamp holder Protection class Weight
TG28 220V 2000W Tungsten halogen light 2030 53000 GY16 IP56 33.7KG
TG28-A 50Hz/60Hz 27.4KG
TG28-B
28.4KG


Mounting dimension

TG28 2000W High Powered Searchlights for ships
