Stud Link Or Open Link Marine ABS Mooring Anchor Chain

Brand:Deyuan Marine
Type: Stud Link Or Open Link Chain
Length: 27.5M anchor chain
Structure:Welded Chain
Surface :Galvanized ,Black painting
Payment term:T/T ,L/C,Paypal ,Western Union etc
Delivery Time:15 days
Certificate: ABS, LR, DNV, GL, BV, NK, KR, CCS

Product Description

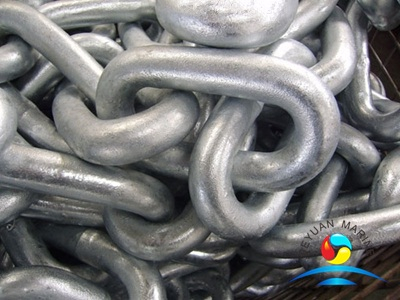

Stud Link Or Open Link Marine ABS Mooring Anchor Chain


The ABS Mooring anchor chain is made up of a number of links, the size of which is expressed in terms of the diameter of about (mm). According to the marine anchor chain with the middle of any stall, divided into Studless and Stud chain. The mooring anchor chain can be made by forging, casting and welding.


Deyuan Marine carries a large range of both Stud Link & Studless anchor chain for all your requirements , ABS Anchor Chain sizes range from 17.5mm to 76mm as standard and larger sizes can be supplied upon request. All our marine mooring Chain & Components are supplied with Third Party Certification from LR, ABS, NK, CCS, or DNV etc.


Through the past years, we built up good business relationships with our customers all over the world. Our technical staff can make any products according to customer's drawing or sample. Sometimes we can give some suggestions to help our customer to improve the design and make the products work better.



We can design and produce the ABS Marine Chain according to the drawings and technical requirements you request. We guaranteed products at a competitive price and quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.


If you are interested in our Open Link Marine Chain, welcome to send the inquiry or call our sales team directly , we will handle your case quickly and quote for you .


ABS Mooring Anchor Chain Data Sheet:

Grade Yield Point
(N/mm2,min)
Tensile Strength
(N/mm2,min)
Elongation
(%,min)
Reduction Of Area
(%,min)
Impact Test(V-notch)
Test Temperature
(°C)
Impact(J,min)
Base Part Weld Part
API Spec. ---- 641 17 40 0 58 49
2F(ORQ) -15 40 36
ABS/RQ3 410 690 17 50 0 60 50
DNV/NVR3 -20 40 30
ABS/RQ3S 490 770 15 50 0 65 53
DNV/NVR3S -20 45 33
ABS/RQ4 580 860 12 50 -20 50 36
DNV/NVR4 580 860 12 50 0 70 56
-20 50 36
ABS/R4s 700 960 12 50 -20 56 40
DNV/NVR4s
ABS/R5 760 1000 12 50 -20 58 42

More ABS mooring anchor chain can be offered,pls contact us for more details.
