Offshore Marine Black RQ3s Grade Stud Link Mooring Anchor Chain

Brand:Deyuan Marine
Material:Forged,carbon Steel
Length: 27.5M anchor chain
Structure:Welded Chain
Surface :Galvanized
Payment term:T/T ,L/C,Paypal ,Western Union etc
Delivery Time:15 days
Certificate: ABS, LR, DNV, GL, BV, NK, KR, CCS

Product Description

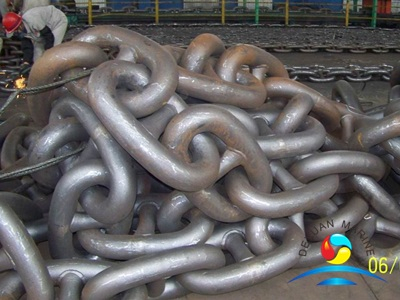

Offshore Marine Black RQ3s Grade Stud Link Mooring Anchor Chain


We can produce Stud Link Anchor Chain, normally ,there are 3 material Grade ,U 1/U2/U3 , Diameter of Chain is from 34mm to 162mm , Surface are Self Color, Black Painted, Galvanized . Some match chain accessories also can be offered with full test certification available by request , such as Kenter Shackle, End Shackle, Joining Shackle, Swivel Piece, etc .


Marine Black Anchor chain mainly adapt to build new vessels, repair vessels, marine chains, buoy chains, lifting chains, lashing chains, fish net tenesmus, mining chains, municipal engineer, new established garden decoration.Moreover, It prevents the chain from knotting up when twisted,thus avoiding problems when chain is retrieved with a windlass.


RQ3s Grade Stud Link Chain Feature:

*Product Name: Stud Link Anchor Chain

*Grade: U1 U2 U3

*Dia: 34-162mm

*Material: Q235, CM490, CM690

*Technology: Welded

*Standard: GB/T549-2008 GB/T20848 ISO1704

*Surface: Self Color, Black Painted, Galvanized

*Certificate: CCS ABS BV NK KR GL-DNV RINA RMRS

*Packing: Wire Rope Bundled, Ton Bag, Wooden Box

*Chain Accessories: Kenter Shackle, End Shackle, Joining Shackle, Swivel Piece, etc


We can design and produce the RQ3s Grade Stud Link Chain according to the drawings and technical requirements you request. We guaranteed products at a competitive price and quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.


Deyuan Marine consists of skilled technical personnel, dedicated salesperson, as well as a highly experienced management. Together we are united in our mission to ensure our clients experience only the best of quality products and after sale services.


Pls feel free to contact us if you want to know more information on our Offshore Mooring Anchor Chain .


RQ3s Grade Stud Link Mooring Anchor Chain Data Sheet:

Stud Link Mooring Anchor Chain
Chain Grade  Chain Diameter Stud Tension Breaking Load
RQ3s Grade 34 859 1189
36 960 1327
38 1065 1473
40 1176 1626
42 1291 1786
44 1411 1952
46 1536 2124
48 1666 2304
50 1800 2490
52 1940 2683
54 2083 2882
56 2231 3086
58 2384 3297
60 2541 3514
62 2702 3737
64 2867 3966
66 3036 4200
68 3210 4440
70 3387 4686
73 3661 5064
76 3943 5454
78 4136 5721
81 4432 6130
84 4735 6550
87 5047 6981
90 5366 7423
92 5583 7723
95 5914 8180
97 6138 8491
100 6480 8964
102 6712 9285
105 7065 9774
107 7304 10104
111 7789 10775
114 8160 11288
117 8536 11808
120 8917 12335
122 9174 12690
124 9433 13048
127 9825 13591
130 10222 14140
132 10488 14509
137 11163 15442
142 11847 16389
147 12541 17348
152 13242 18318
157 13950 19297
162 14664 20284

More RQ3s grade stud link mooring anchor chain can be offered,pls contact us for more details.
