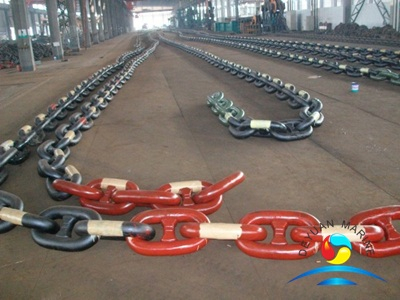

R5 Grade Ocean Engineering Stud Link Anchor Chain with ABS/LR Certificate

Type: Studlink Chain
Brand: Deyuan Marine
Dia.: 8-162mm
Materials: U1, U2, U3,
Surface: Polished, Black Painted, Hot Dip Galvanized
Marine Parts: Marine Hardwares
Certificate: CCS, ABS, BV, NK, KR, GL, LR, DNV, RINA, RMRS.

Product Description

R5 Grade Ocean Engineering Stud Link Anchor Chain with ABS/LR Certificate


Type: Studlink Chain
Brand: Deyuan Marine
Dia.: 8-162mm
Materials: U1, U2, U3,
Surface: Polished, Black Painted, Hot Dip Galvanized.
Marine Parts: Marine Hardwares
Certificate: CCS, ABS, BV, NK, KR, GL, LR, DNV, RINA, RMRS.

Application: Ship, iron and steel industry, petroleum chemical industry, coal mine.


Manufacturing Process:
Cutting → Heating → Bending → Flash Butt Welding → Trimming → Shaping Stud Setting → Heart Treatment → Tensile Testing → Shot Blasting → Painting → Delivery.


Other Accessories: kenter shackle, joining shackle, anchor shackle, swivel piece.
More marine hardware fittings are available, please contact us for more details and competitive prices.


R5 Grade Offshore Mooring Chain
Chain Diameter (mm) Stud Tension (KN) Studless Tension (KN) Breaking Load (KN)
70 4723 4196 6021
73 5104 4535 6507
76 5498 4884 7009
78 5766 5123 7351
81 6179 5490 7877
84 6602 5866 8418
87 7037 6252 8971
90 7482 6647 9539
92 7784 6916 9924
95 8246 7326 10612
97 8559 7604 10911
100 9036 8028 11520
102 9359 8315 11932
105 9851 8753 12580
107 10184 9048 12984
111 10861 9650 13847
114 11378 10109 14508
117 11902 10574 15174
120 12434 11047 15852
122 12792 11365 16308
124 13153 11688 16788
127 13700 12171 17466
130 14253 12663 18171
132 14625 12993 18645
137 15565 13829 19844
142 16520 14677 21061
147 17487 15536 22294
152 18484 16405 23540
157 19452 17282 24799
162 20447 18166 26088

More R5 grade ocean engineering mooring chain can be offered,pls contact us for more details.
