RQ3 Grade High Strength Welded Offshore Studless Mooring Anchor Chain

Brand:Deyuan Marine
Application: Small Boat and Yacht
Length: 27.5M anchor chain
Structure:Welded Chain
Surface :Galvanized ,Black painting
Payment term:T/T ,L/C,Paypal ,Western Union etc
Delivery Time:15 days
Certificate: ABS, LR, DNV, GL, BV, NK, KR, CCS

Product Description

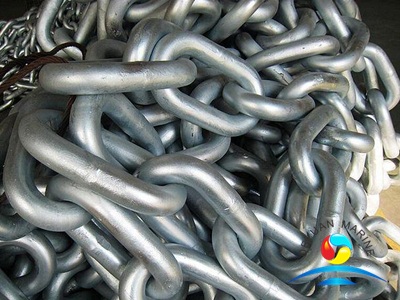

RQ3 Grade High Strength Welded Offshore Studless Mooring Anchor Chain


We can make RQ3 Grade Mooring Chain, the size are from 34mm to 162mm , the surface is black painting , except RQ3 material grade, we also have others , such as U1, U2, U3, RQ4 etc . we can offer different type offshore mooring chain , they are stud link anchor chain, studless anchor chain, galvanized anchor chain, marine anchor chain, offshore anchor chain, yacht anchor chain, mooring chain, lashing chai, lifting chain etc;


The High Strength Welded chain is made up of a number of links, the size of which is expressed in terms of the diameter of about (mm). According to the RQ3 Grade offshore chain with the middle of any stall, divided into Studless and Stud chain. The mooring anchor chain can be made by forging, casting and welding.


We can design and produce the RQ3 Grade Studless Chain according to the drawings and technical requirements you request, and also can offer matched anchor and accessories ,such as Hall Anchor, Spec Anchor, Pool Anchor, Delta Anchor, AC-14 Anchor, Stockless Anchor, Navy Anchor, Four Fluke Anchor, Danforth Anchor , Kenter Shackles, 'D' Type Joining Shackles, Anchor Shackles (End Shackles), Swivel Adapters etc. We guaranteed products at a competitive price and quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.


Besides ,we have domestic advanced equipment and technologies, it include 13 chain-making lines,3 vertical continuous heat treatment furnaces,3 proof testing machines with capacity of 5000KN/10000KN/17000KN respectively,3 shot blasting machines,NDT testing machine and other support equipment; all the above are automatically controlled by the computers.


Pls feel free to contact us if you want to know more information on our Offshore Studless Mooring Chain .


RQ3 Grade Offshore Studless Mooring Chain Specification:

Studless Mooring Anchor Chain
Chain Grade  Chain Diameter Studless Tension Breaking Load
RQ3 Grade 34 745 1065
36 832 1189
38 923 1319
40 1019 1456
42 1119 1599
44 1223 1748
46 1331 1903
48 1444 2064
50 1560 2230
52 1681 2403
54 1806 2581
56 1934 2764
58 2066 2953
60 2202 3147
62 2342 3347
64 2485 3552
66 2632 3762
68 2782 3977
70 2936 4196
73 3173 4535
76 3417 4885
78 3584 5124
81 3841 5490
84 4104 5866
87 4374 6252
90 4651 6648
92 4838 6916
95 5125 7326
97 5320 7604
100 5616 8028
102 5817 8316
105 6123 8753
107 6330 9049
111 6751 9650
114 7072 10109
117 7398 10575
120 7728 11047
122 7951 11365
124 8175 11686
127 8515 12172
130 8859 12663
132 9090 12994
137 9674 13829
142 10268 14677
147 10869 15536
152 11476 16405
157 12090 17282
162 12708 18166

More RQ3 grade offshore studless mooring chain can be offered,pls contact us for more details.
