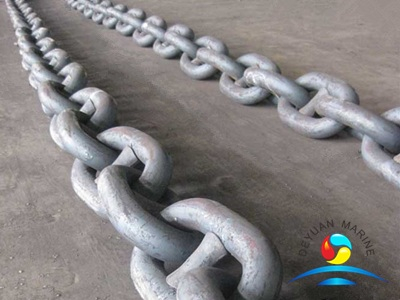

RQ3 Grade Steel Offshore Industry Used Mooring Stud Link Anchor Chain

Brand:Deyuan Marine
Product Name: Stud Link Offshore Mooring Chain
Material:Steel
Dia Size:34mm-162mm
Surface:Black Painted, Self Color, as required
Payment:T/T,L/C ,Paypal etc
Certification:CCS ABS BV NK KR GL LR DNV RINA RS
Delivery time:Up to order volume
Origin:China
Transport:By sea
Guarantee:12 months

Product Description

RQ3 Grade Steel Offshore Industry Used Mooring Stud Link Anchor Chain

Stud Link Mooring Anchor Chains fabricate from R3 up to R5 – a material composition ideal for the offshore industry. The extremely high quality of the material makes Offshore Mooring Stud Link Anchor Chain has a perfect fit to meet your challenging offshore mooring requirements.

Deyuan Marine has full range of Steel Mooring Stud Link Anchor Chain  – The DIA size of Steel Offshore Stud Link Anchor Chain from 34 mm up to 162 mm – in stock to guarantee excellent availability.

These strong RQ3 Stud Link Offshore Mooring Chains are suitable for the offshore industry. If you are not sure the details our technical team can help you to select the right one for your purpose.

RQ3 Grade Steel Stud Link Anchor Chain are approved by ISO 1704 standards and other marine certificate. Used for anchor and mooring chains, stud link chains have a central stud for extra strength. Studlink chains are available in various grades from R3 up to R5. The DNV Certificate Offshore Mooring Chain in R3 and R5 are the most used anchor chains for commercial shipping.

The difference between R2 and R3 is the additional heat treatment process after manufacturing of the Offshore Used Mooring Stud Link Anchor Chain that upgrades the quality. Normally Offshore Industry Used Stud Link Anchor Chains are available in black (tarred), galvanised and stainless steel.

Below is the data sheet of Marine stud link anchor chain for your reference .


Stud Link Mooring Anchor Chain
Chain Grade  Chain Diameter Stud Tension Breaking Load
RQ3 Grade 34 745 1065
36 832 1189
38 923 1319
40 1019 1456
42 1119 1599
44 1223 1748
46 1331 1903
48 1444 2064
50 1560 2230
52 1681 2403
54 1806 2581
56 1934 2764
58 2066 2953
60 2202 3147
62 2342 3347
64 2485 3552
66 2632 3762
68 2782 3977
70 2936 4196
73 3173 4535
76 3417 4885
78 3584 5124
81 3841 5490
84 4104 5866
87 4374 6252
90 4651 6648
92 4838 6916
95 5125 7326
97 5320 7604
100 5616 8028
102 5817 8316
105 6123 8753
107 6330 9049
111 6751 9650
114 7072 10109
117 7398 10575
120 7728 11047
122 7951 11365
124 8175 11686
127 8515 12172
130 8859 12663
132 9090 12994
137 9674 13829
142 10268 14677
147 10869 15536
152 11476 16405
157 12090 17282
162 12708 18166


More RQ3 grade stud link offshore mooring chain can be offered,pls contact us for more details.
