Stainless Steel Yacht Electric Vertical Anchor Windlass
We can specially make anchor windlass for yacht, compare with other anchor windlass use on merchant ships, the important different is that yacht anchor windlass surface is more smooth and super polished, with very good apperance and luxurious configuration, yacht anchor windlass material mostly is stainless steel, such as SS304 anchor windlass, SS316L yacht anchor windlass. As per structure, we have single gypsy anchor windlass and one capstan. As per driven type we have electric windlass and hydraulic anchor windlass. As per installation type, we have vertical type and horizontal type anchor windlass.

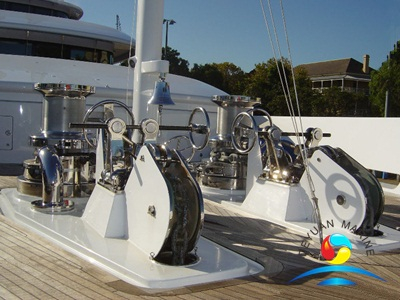

Above type is vertical yacht anchor windlass model have one main shaft and fitted with one gypsy and a capstan.
Consider the space, a vertical yacht windlasses require less deck space than a horizontal yacht windlass. the warping end or capstans here have operational advantages for mooring purposes due to the radial scope of the lead for mooring lines. For servicing and lubrication all running gear is readily accessible.
Specification for anchor windlass:
|Name||Chain Dia.||Working Load||Supporting Load||Working Speed||Capstan Load||Motor Power|
|Φ14/16/17.5 Anchor Windlass||Φ14/16/17.5||8.3/10.9/13.0||51/67/80||≥9||8||5.5|
|Φ19/20.5/22 Anchor Windlass||Φ19/20.5/22||15.3/17.9/20.6||95/110/126||≥9||10||7.5|
|Φ24/26 Anchor Windlass||Φ24/26||24.5/28.7||149/175||≥9||20||11|
|Φ28/30 Anchor Windlass||Φ28/30||33.3/38.3||202/231||≥9||30||15|
|Φ32/34/36 Anchor Windlass||Φ32/34/36||43.5/49.1/55.1||261/294/329||≥9||30||22|
|Φ38/40/42 Anchor Windlass||Φ38/40/42||61.4/68.0/75.0||365/402/442||≥9||40||30|
|Φ44/46/48 Anchor Windlass||Φ38/40/42||82.3/89.9/97.9||483/526/570||≥9||50||37|
|Φ50/52/54 Anchor Windlass||Φ50/52/54||106.3/114.9/123.9||617/664/713||≥9||50||45|
|Φ56/58/60 Anchor Windlass||Φ56/58/60||133.3/143.0/153||764/816/870||≥9||60||55|
|Φ62/64 Anchor Windlass||Φ62/64||163.4/174.1||925/982||≥9||80||55|
|Φ66/68 Anchor Windlass||Φ66/68||185.1/196.5||1040/1098||≥9||100||75|
|Φ70/73 Anchor Windlass||Φ70/73||208.3/226.5||1160/1254||≥9||100||75|
