Product Description

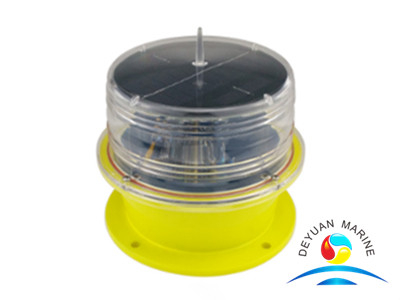

Solar powered battery operated Led boat navigation lights
Deyuan marine offer a wide range of solar power LED boat navigation light with visible range mainly from 1-12NM.
This type of Solar powered navigation lantern is made from Powder-coated Die-casting aluminum and UV protected Polycarbonate.Light source is LED,Red, Green, Yellow, White, Blue color are for option.
This Solar powered lighting fixtures’ LED life experience can up to or more than 100,000 hours,its Solar Module is Monocrystalline Silicon,Lithium ion battery battery type. Remote control charping port is for option when required.
Applied to buoy, light house and any other off shore site for marine/river safe navigation.
Main technical parameter
Light Characteristics | |
Light Source | LED |
Available Colors | Red, Green, Yellow, White, Blue |
Visible Range(NM) | 1-2 (Tc =0.74) |
Horizontal Output(degrees) | 360 |
Vertical Divergence(degrees) | 7 |
Flash Characteristics | Adjustable Steady-burning/Flash mode |
Operation Mode | Dusk-to-dawn Automatically (Built-in photocell) |
LED Life Experience(hours) | >100,000 |
Electrical Characteristics | |
Operating Voltage | 3.7Vdc |
Power(W) | 1 |
Circuit Protection | Integrated |
Solar Characteristics | |
Solar Module Type | |
Output(watts) | 1 |
Charging Regulation | Microprocessor controlled |
Battery Characteristics | |
Battery type | Lithium ion battery |
Battery Capacity (Ah) | 6 |
Nominal Voltage (V) | 3.7 |
Battery Service Life | Average 3 years |
Autonomy (hours) | Steady: 60 |
Flashing: 150 | |
Physical Characteristics | |
Body Material | UV protected Polycarbonate |
Base Material | Powder-coated Die-casting aluminum |
Mounting(mm) | 140×140×M6 |
Dimension(mm) | 162 by 162 by 160 |
Weight(kg) | 1 |
Product Life Expectancy | Average 5 years |
Environmental Factors | |
Humidity | 0~100% |
Wind Speed | 80m/s |
Waterproof | IP68 |
Compliance | |
IALA | Singal colors complicant to IALA E-200-1 |
Options Available | |
Charging port | Remote Control |
Auto/Manual toggle switch | 256 flashing light characteristics |
All our Solar Led navigation lanterns are manufactured according to IALA compliance.If you are looking for any Solar Led navigation lanterns,pls feel free to contact our sales team for more details.
