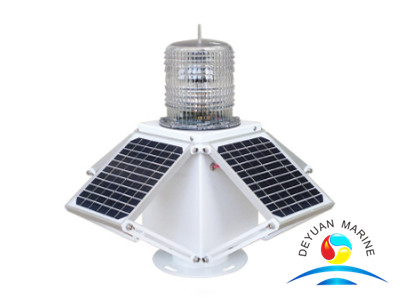

3NM-6NM Solar LED dock lights for floating docks

Place of Origin: China
Light Source: LED
Available Colors: Red, Green, Yellow, White, Blue
Flash Characteristics : Adjustable 256 IALA light characteristics
Operating Voltage: 12Vdc
Power(W): 24
Output(watts): 24

  • LS/C-4S
  • DEYUAN MARINE

Product Description

3NM-6NM Solar LED dock lights for floating docks


Our solar LED dock light is designed to meet IALA Maritime Buoyage System recommendations for aids to navigation.These solar deck lanterns are widely used in beacon,marker buoy,inland river,shore beacon,fixed light beacon,oilfield derrick etc.

The deck lights are available in a range of high visibility colours,such as red,green,yellow,white,blue etc,with visible ranges of 3nm to 6nm.

Each solar dock light incorporates the latest LED,solar,internal user-replaceable battery in sealed compartment.

Features:

*with LED light source,low illumination level, high efficiency solar panel,solar battery for power supply

*using PC material,with bird deterrent spike

*316SS shell,waterproof,vibration proof, and va



Main technical parameter

Main Specification

Light Characteristics

Light Source

LED

Available Colors

Red, Green, Yellow, White, Blue

Visible Range(NM)

1-2 (Tc =0.74)

Horizontal Output(degrees)

360

Vertical Divergence(degrees)

7

Flash Characteristics

Adjustable Steady-burning/Flash mode

Operation Mode

Dusk-to-dawn Automatically (Built-in photocell)

LED Life Experience(hours)

>100,000

Electrical Characteristics

Operating Voltage

3.7Vdc

Power(W)

1

Circuit Protection

Integrated

Solar Characteristics

Solar Module Type

Monocrystalline Silicon

Output(watts)

1

Charging Regulation

Microprocessor  controlled

Battery Characteristics

Battery type

Lithium ion battery

Battery Capacity (Ah)

6

Nominal Voltage (V)

3.7

Battery Service Life

Average 3 years

Autonomy (hours)

Steady: 60

Flashing: 150

Physical Characteristics

Body Material

UV protected  Polycarbonate

Base Material

Powder-coated Die-casting aluminum

Mounting(mm)

140×140×M6

Dimension(mm)

162 by 162 by 160

Weight(kg)

1

Product Life Expectancy

Average 5 years

Environmental Factors

Humidity

0~100%

Wind Speed

80m/s

Waterproof

IP68

Compliance

IALA

Singal colors complicant to IALA E-200-1

Options Available

Charging port

Remote Control

Auto/Manual toggle switch

256 flashing light characteristics


All our Solar Led navigation lanterns are manufactured according to IALA compliance.If you are looking for any Solar Led navigation lanterns,pls feel free to contact our sales team for more details.
