Single Handle Aluminium Weathertight Door for Vessel

Material: Aluminum Alloy
Type: Single handle
Clear size: From 500*1000 to 900*1600,customized
Color: White or customized
Feature: Weathertight
Waterproof: Water pressure 0.25Mpa
Certificate: RINA, RS, NK, LR, KR, CCS, GL, DNV, ABS Class

Product Description

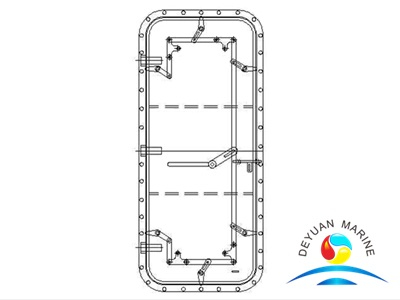

Single Handle Aluminium Weathertight Door

Aluminium door test request:
It should passed the hose test which nozzle diameter 12.5 mm,water pressure 0.25Mpa
Model Clear Size  Cut-out Size Door Leaf Size Door Frame Size Weight(kg)
JA JB JC JD JE
WXh W1Xh1 R W2Xh2 t Spec THK 4 6 4 6 4 6 4 6 4 6
IA

IB

IC

ID
500X1000 560X1060 130 555X1055 4


6
75X50 6


8
51 56 51 57 52 56 51 57 53 59
600X1200 660X1260 655X1255 60 67 61 67 61 68 61 67 62 69
600X1400 660X1460 655X1455 65 73 66 73 66 74 66 73 67 75
750X1400 810X1460 805X1455 73 84 73 85 74 85 73 85 75 86
900X1400 960X1460 955X1455 82 94 82 95 83 95 82 95 84 96
600X1600 660X1660 655X1655 70 79 71 79 71 80 71 79 72 81
750X1600 810X1660 805X1655 76 87 77 87 77 88 77 87 78 89
900X1600 960X1660 955X1655 89 103 90 103 90 104 90 103 91 105


Marked sample: Single handle aluminium weathertight door with round window and guard bar which clear size 600X1200.
Marked as:  SINGLE HANDLE ALUMINIUM WEATHERTIGHT DOOR  600X1200   QLJ-303AL-JC
