Marine Ship Aluminium Weathertight Hollowed Door With CCS Approval

Origin: Made in China
Type: Weathertight hollowed Door
Door leaf: Single
Material: Aluminium
Certificate: CCS, BV, NK, DNV etc
Delivery time: 10-30days
Packing: Export package
Payment terms: TT, western union, paypal etc
Brand: Deyuan Marine

Product Description

Marine Ship Aluminium Weathertight Hollowed Door With CCS Approval

It is made of aluminum alloy with new structure and good weathertight. The door surface is anodized baking finish or PVC covered. It is anti-aging and resistant to corrosion. This model's upper and lower parts of door leafs could be opened/closed seperately or integrally.


specially use for sight-seeing boats or yachts.


Aluminium door test request:

It should passed the hose test which nozzle diameter 12.5 mm,water pressure 0.25Mpa.


Above type is our standard type aluminium weathertight hollowed door, with celar size from 600*1600mm to 800*1750mm, other size can be also customized. Marine certificate available for CCS, BV, ABS etc to all our aluminium weathertight hollowed door, any more doors inquiry, welcome contact with us!


Model Clear Size
(mm)
Door Frame Size
(mm)
Cut-out Size
(mm)

Weight
WXh  W1Xh1 W2Xh2 (kg)
QLM-349G 600X1600 690X1690 654X1654 30.1
650X1650 740X1740 704X1704 31.4
700X1700 790X1790 754X1754 33.1
700X1750 790X1840 754X1804 34.6
750X1750 840X1840 804X1804 36.1
800X1750 890X1840 854X1804 38.2


Model Clear Size
(mm)
Door Frame Size
(mm)
Cut-out Size
(mm)

Weight
WXh  W1Xh1 W2Xh2 R (kg)
QLR-349G 600X1600 690X1690 654X1654 80 30.5
650X1650 740X1740 704X1704 31.9
700X1700 790X1790 754X1754 33.5
700X1750 790X1840 754X1804 35.1
750X1750 840X1840 804X1804 36.6
800X1750 890X1840 854X1804 38.7

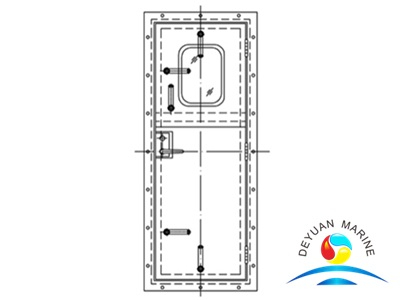

Marked sample: Square-corner aluminium weathertight hollowed door  which clear size 700X1700.
Marked as: ALUMINIUM WEATHERTIGHT HOLLOWED DOOR  700X1700   QLM-349G
