Product Description

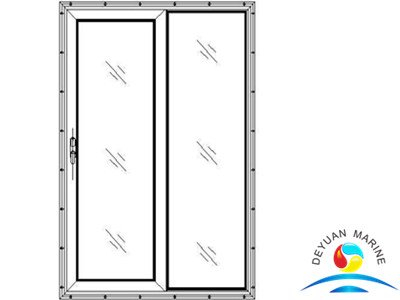

Marine Fixed Single-leaf Slided Aluminium Sliding Door For Vessel
Watertight doors refer to all kinds of doors which are installed in watertight bulkhead and meet the requirements of watertight. According to the thickness of the door and the number of wedge-shaped handle, there are usually heavy watertight doors and light watertight doors.
| Model | Clear Size | Cut-out Size | Fixed Leaf size | Sliding Leaf size | Door Frame Size | Weight(kg) | |
| WXh | W1Xh1 | W2Xh2 | W3Xh3 | W4Xh4 | t=6 | t=8 | |
| QLE-382 | 600X1500 | 1200X1575 | 495X1570 | 670X1543 | 1245X1620 | 38.9 | 46.4 |
| 650X1600 | 1300X1675 | 545X1670 | 720X1643 | 1345X1720 | 44.7 | 53.2 | |
| 700X1700 | 1400X1775 | 595X1770 | 770X1743 | 1445X1820 | 51.3 | 61.0 | |
| 750X1700 | 1500X1775 | 645X1770 | 820X1743 | 1545X1820 | 54.7 | 65.2 | |
| 700X1800 | 1400X1875 | 595X1870 | 770X1843 | 1445X1920 | 53.3 | 63.4 | |
| 750X1800 | 1500X1875 | 645X1870 | 820X1843 | 1545X1920 | 57.4 | 68.3 | |
| 800X1800 | 1600X1875 | 695X1870 | 870X1843 | 1645X1920 | 61.5 | 73.2 | |
| 900X1900 | 1800X1975 | 795X1970 | 970X1943 | 1845X2020 | 72.9 | 86.8 | |
Marked as: ALUMINIUM SLIDING DOOR 600X1500 QLE-382
Please feel free to contact with us for more details, we would offer you all kinds of marine door according to your requirement.
