Product Description

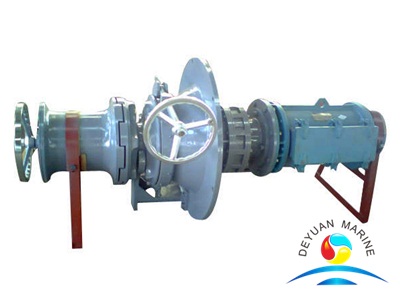

Ship 17KN Vertical type Electric Driven Mooring Capstan with Anchor Windlass
The marine anchor capstan is an important equipment of the ship. It is the mechanical device that ensure the ship can sail normally.
Types of marine anchhor capstan
1.Due to the different application, the marine capstan is divided into anchor capstan and mooring capstan.
2.Based on the shape, it can be divided into vertical capstan and horizontal capstan.
3.According to the input power, it can be divided into electric capstan and hydraulic capstan.
Mooring Anchor Capstan Technical parameters
| Model | Mooring Load | Moorin Speed | Wire Rope Dia. | Capstan | |
| Motor Power (KW) | |||||
| (KN) | (mm) | (mm) | Electric | Hydraulic | |
| 5KN Marine Capstan | 5 | ≥18 | Φ11 | 3/1.2 | 5.5 |
| 10KN Marine Capstan | 10 | ≥18 | Φ11 | 4.3/1.7 | 7.5 |
| 15KN Marine Capstan | 15 | ≥18 | Φ13 | 8.5/3.5 | 11 |
| 20KN Marine Capstan | 20 | ≥18 | Φ15 | 11/11/7.5 | 1.5 |
| 30KN Marine Capstan | 30 | ≥18 | Φ17.5 | 16/16/11 | 18.5 |
| 50KN Marine Capstan | 50 | ≥18 | Φ20.5 | 22/22/16 | 30 |
| 70KN Marine Capstan | 70 | ≥15 | Φ26 | 30/30/22 | 45 |
| 100KN Marine Capstan | 100 | ≥15 | Φ28 | 45/45/30 | 55 |
| 120KN Marine Capstan | 120 | ≥15 | Φ32.5 | 60/60/45 | 75 |
| 150KN Marine Capstan | 150 | ≥15 | Φ36.5 | 60/60/45 | 90 |
| 200KN Marine Capstan | 200 | ≥15 | Φ40 | 75/75/36 | 110 |
| 250KN Marine Capstan | 250 | ≥12 | Φ46 | 75/75/36 | 110 |
More ship mooring capstan can be offered,pls contact us for more details.
