500KN Marine Single Drum Hydraulic Winch For Dredger

Origin: Made in China
Usage: Dredger or barge
Durm no.: Single
Capacity: 500KN
Driven: Hydraulic
Delivery time: 20-30days
Certificate: CCS, BV, ABS etc
Brand: Deyuan Marine
Availability:

Product Description

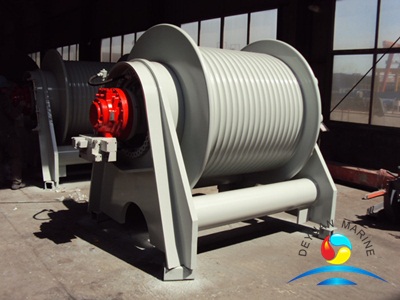

500KN Marine Single Drum Hydraulic Winch For Dredger


The dredger marine winches are designed to withstand extreme environment demands, it request the structure more reliable and wearable, winch capacity can reach 500KN, We can also customized build dredge winches to specifically suit your dredge.


All marine dredge winches we made with a high performance-spur gear transmission with forced lubrication and running on high-grade roller bearings. The gears are made of high alloy steel, hardened and ground where necessary. The gear box is a steel welded construction. On the rope drum an optimised groove pitch ensures the longevity of the wire rope. As an option, it is also possible to have the dredge winch fitted with warping end.


Marine winches for dredger aslo include hydraulic motor or optional electric motors drive, automatic drum lock, the drum is supported with a fully sealed self-aligning outrigger bearing; The dredge winch base and drum are fabricated from grade 250 carbon steel, 316 stainless steel available on request; Heavy duty marine protective coating on all units.


Dredger winches mainly certificate can be offer, such as CCS,ABS,DNV,BV,RINA,BKI etc.  More dredger winches kindly welcome contact with us!


Type Hawser Drum Dimension
Load Speed Rope Size A B ФC ФD E F G
(KN) (m/min) (mm×m) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
YB450 450 20 56×300 3315 1300 1500 2050 1400 1400 3495
YB500 500 3745 1490 1800
YB550 500 3745 1490 1800

More winch for dredger can be offered,pls contact us for more details.
