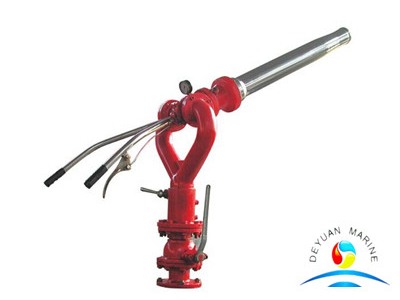

SS65 Manual Type Powder Fire Monitor

  • DEYUAN MARINE

Product Description

SS65 Manual Type Powder Fire Monitor

Descriptions:    Produced on requirement

Effective capacity:   17Kg/s~40Kg/s

The max pressure:    16bar

Inlet:   Fange DN50~DN65 PN16

Outlet:   Square flange

Optional inlet flange:   DN80 PN16/ANSI2'' / ANSI2½''

Powder Fire Monitor Rotation range:

Horizontal:  360° infinite

Vertical:   +85°~  -75°

Weight:  ~16Kg

Powder Fire Monitor Materials:

Body:  Stainless Steel

Sealing:  NBR

Pipe:   Stainless Steel

Flange:   Stainless Steel / carbon steel

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position

More  Powder Fire Monitor  can be offered,pls contact us for more details
