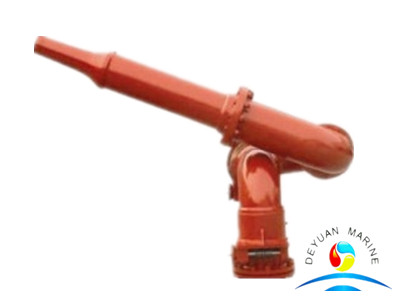

SS250 Manual Type Fire Monitor
Descriptions: Produced on requirement
Effective capacity: 32000L/min
The max pressure: 16bar
Inlet: Flange DN250 PN16
Outlet: Flange connection
Optional inlet flange: DN300 / ANSI10''
Rotation range:
Horizontal: 360° infinite
Vertical: +75°~ －45°
Weight: ~220Kg
Materials:
Body: Anti-corrosion aluminum alloy/Copper alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Anti-corrosion aluminum alloy/Copper alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
