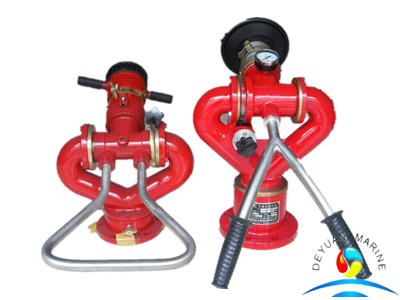

SS50 Manual Type Fire Monitor

Marine Fire Monitor SS50FHL; SS50HR/F; SS50WHL/F; SS50WHR/F:

Descriptions:    Produced on requirement

Effective capacity:   2000L/min; 2400L/min

The max pressure:    16bar

Fire Monitor Inlet:   Flange DN50 PN16; DN65 PN16

Outlet:   Screw thread

Optional inlet Flange: DN80 PN16/ANSI2''/ANSI½''

Fire Monitor Rotation range:

Horizontal:  360° infinite

Vertical:   +85°~ －75°

Weight:  ~16Kg

Fire Monitor Materials:

Body:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy

Nozzle: Copper alloy / Aluminum alloy

Flange:   Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position

More  Marine Fire Monitor can be offered,pls contact us for more details
