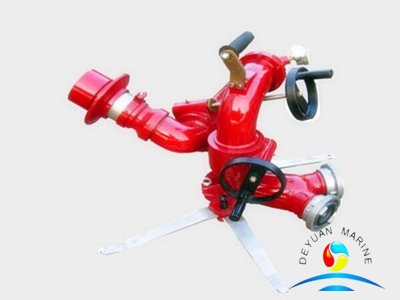

Marine/Land Portable Fire Monitor

Descriptions:    Produced on requirement

Effective capacity:   1200~2400L/min

The max pressure:    16bar

Inlet:   Snap coupling  ф65

Portable Fire Monitor Outlet:   Square flange

Optional inlet : Single/Double snap coupling

Portable Fire Monitor Rotation range:

Horizontal:  360° infinite

Vertical:   +85°~ 0°

Weight:  ~16Kg

Portable Fire Monitor Materials:

Body:  Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Sealing:  NBR

Pipe:   Hard aluminum alloy

Nozzle: Copper alloy / Aluminum alloy

 Flange:   Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy

Painting:   Red RAL3000

The monitor can be arrested in any horizontal or vertical position

More  Portable Fire Monitor  can be offered,pls contact us for more details
