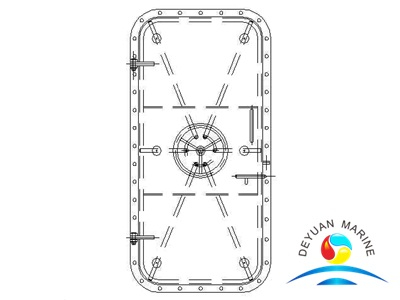

Quick Acting Aluminium Weathertight Door for Ships

Material: Aluminum Alloy
Clear ize: From 500*1000 to 900*1600
Color: White or customized
Feature: Quick Acting
Waterproof test: Under nozzle diameter 12.5 mm,water pressure 0.25Mpa
Customization: Support
Certificate: RINA, RS, NK, LR, KR, CCS, GL, DNV, ABS Class

  • DEYUAN MARINE

Product Description

Quick Acting Aluminium Weathertight Door

Aluminium door test request:
It should passed the hose test which nozzle diameter 12.5 mm,water pressure 0.25Mpa
Model Clear Size  Cut-out Size Door Leaf Size Door Frame Size Weight(kg)
KA KB KC KD KE
WXh W1Xh1 R W2Xh2 t Spec THK 4 6 4 6 4 6 4 6 4 6
KA

KB

KC

KD
KE
500X1000 560X1060 130 555X1055 4


6
75X50 6


8
49 61 49 61 50 63 49 62 51 64
600X1200 660X1260 655X1255 59 76 59 76 60 78 59 78 61 78
600X1400 660X1460 655X1455 65 84 65 85 66 86 65 84 67 86
750X1400 810X1460 805X1455 74 99 75 100 76 101 75 99 76 101
900X1400 960X1460 955X1455 84 114 84 114 85 116 84 114 86 116
600X1600 660X1660 655X1655 70 93 71 93 72 95 70 94 72 95
750X1600 810X1660 805X1655 81 110 82 110 83 112 82 110 83 112
900X1600 960X1660 955X1655 93 127 93 128 94 129 93 127 95 129


Marked sample: Quick acting aluminium weathertight door which clear size 600X1200.
Marked as:  QUICK ACTING ALUMINIUM WEATHERTIGHT DOOR  600X1200   QLK-302AL-KA
