Product Description
Pillar-Mounted Jib Crane
Product Introduction:
The cantilever jib crane is a light-duty industrial lifting system composed of a pillar, jib boom, slewing drive mechanism, and hoist. It features a lightweight structure, long span capability, and smooth linear travel of the hoist along the jib boom for precise load handling.

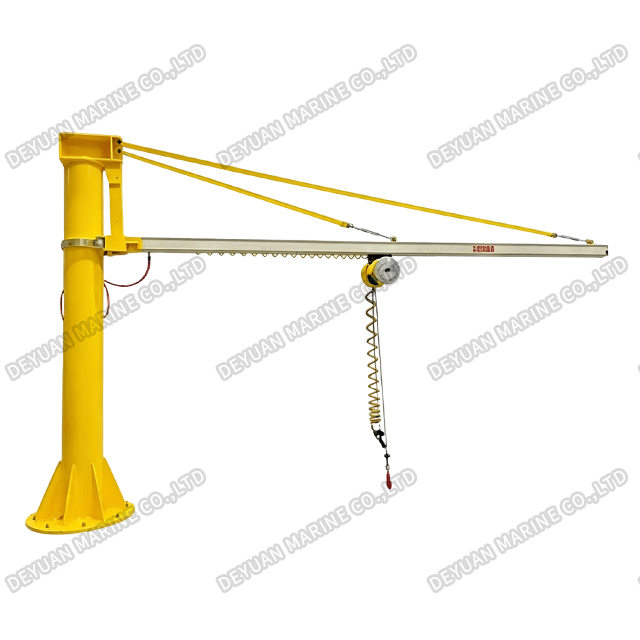

Pillar-Mounted Cantilever Jib Crane:
The pillar-mounted cantilever jib crane is a new-generation light-duty lifting solution designed to meet the demands of modern production facilities. When paired with high-reliability pneumatic hoists or pneumatic balancers, it is particularly well-suited for short-distance, high-frequency, and intensive lifting operations. Key advantages include:
*High efficiency
*Energy saving
*Labor saving
*Compact footprint (minimal floor space occupation)
*Easy operation and maintenance
Pillar-Mounted Jib Crane Selection Parameter Table：
| Model | Rated Lifting Capacity (kg) | Track Type | Slewing Radius R (mm) | Slewing Axis A (mm) | Slewing Angle | Lifting Height H (mm) | Slewing Method | Jib Material |
| GT-XB-0125 | 125 | KBK-II | 1500-5000 | 920 | 360° | 2000-5000 | Manual | Aluminum Alloy / KBK |
| GT-XB-025 | 250 | KBK-II | 1500-5000 | 920 | 360° | 2000-5000 | Manual | Aluminum Alloy / KBK |
| GT-XB-0500 | 500 | KBK-II | 1500-5000 | 920 | 360° | 2000-5000 | Manual | Aluminum Alloy / KBK |
| GT-XB-1000 | 1000 | KBK-II | 1500-5000 | 920 | 360° | 2000-5000 | Manual | Aluminum Alloy / KBK |

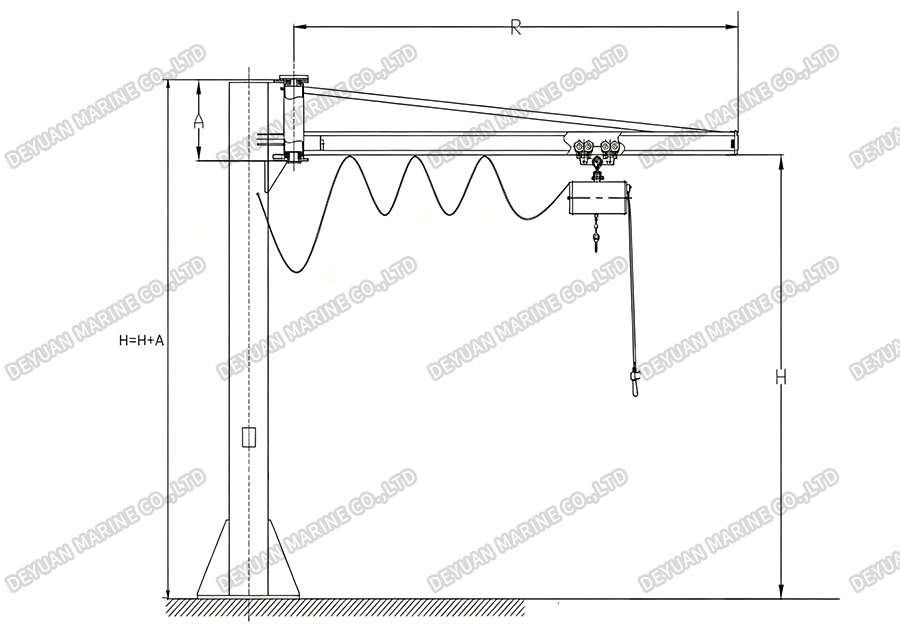

Drawing:
Technical Advantages:
*Optional jib materials: aluminum alloy jib or KBK / I-beam steel jib
*Modular assembly design with interchangeable boom lengths
*Slewing angle: 0° to 360° rotation
*Quick and convenient installation
