Product Description

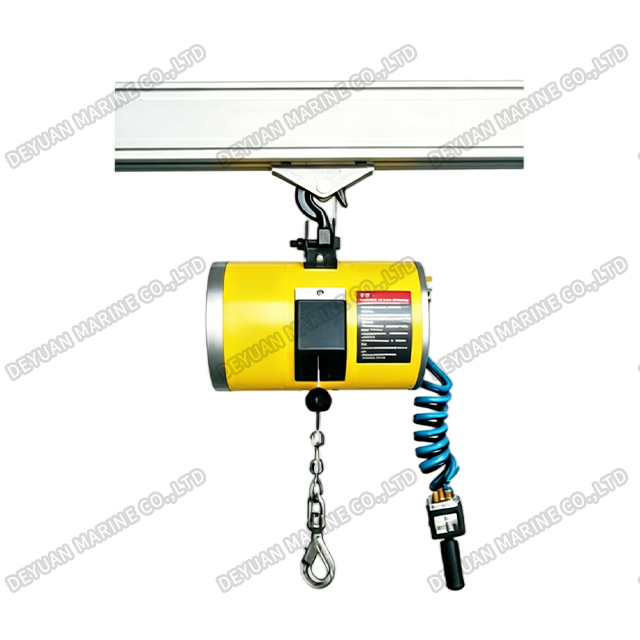

GTB Type Air Balancer
Product Introduction:
An air balancer is a pneumatic assisted material handling device. It uses compressed air as its power source and, through a transmission mechanism, balances the load's own weight against the air pressure within the cylinder to achieve lifting and lowering motions.
Advantages of Air Balancer over Electric Chain Hoists:
*Faster lifting and lowering speeds — typically 2 to 6 times faster than electric hoists
*Features a "floating" function for effortless and precise load positioning
*Capable of continuous 24/7 operation with extremely high duty cycle
*Powered by compressed air with spark-free operation for enhanced safety
*Utilizes screw drive transmission for smooth, jolt-free lifting and lowering, with infinitely variable speed control
Selection Reference Table:
| Air Balancer Selection Reference Table | ||||||
| Model | Rated Load (kg) | Max Stroke (mm) | Air Consumption (m³/h) | Wire Rope Strands (n) | Max Lifting Speed (m/min) | Net Weight (kg) |
| Single Strand Wire Rope Air Balancer | ||||||
| GTB-60-18 | 60 | 1800 | 0.18 | 1 | 60 | 21 |
| GTB-100-20 | 100 | 2000 | 0.2 | 1 | 35 | 27 |
| GTB-100-28 | 100 | 2800 | 0.21 | 1 | 35 | 47 |
| GTB-160-20 | 158 | 2000 | 0.21 | 1 | 25 | 47 |
| GTB-225-20 | 225 | 2000 | 0.25 | 1 | 20 | 52 |
| GTB-280-20 | 280 | 2000 | 0.3 | 1 | 15 | 65 |
| Wire Rope Air Balancer with Pulley Block | ||||||
| GTB-DB316-20 | 316 | 1000 | 0.21 | 2 | 12 | 51 |
| GTB-DB456-20 | 456 | 1000 | 0.25 | 2 | 10 | 56 |
| GTB-DB560-20 | 560 | 1000 | 0.6 | 2 | 7 | 69 |
| Parallel Wire Rope Air Balancer | ||||||
| GTB-DB316-20 | 316 | 2000 | 0.42 | 1 | 25 | 96 |
| GTB-DB456-20 | 456 | 2000 | 0.5 | 20 | 106 | |
| GTB-DB560-20 | 560 | 2000 | 0.6 | 1 | 15 | 133 |
| Parallel Wire Rope Air Balancer with Pulley Block | ||||||
| GTB-MB630-20 | 630 | 1000 | 0.42 | 2 | 12 | 100 |
| GTB-MB900-20 | 900 | 1000 | 0.5 | 2 | 10 | 110 |
| GTB-MB1000-20 | 1100 | 1000 | 0.6 | 2 | 7 | 137 |
| Notes: 1.The actual lifting capacity is primarily determined by the input air pressure. For every 0.1 MPa decrease in input pressure, the actual lifting capacity will be reduced by 10%. 2.The recommended maximum lifting weight is approximately 90% of the rated load. 3.For special requirements, please contact us. | ||||||

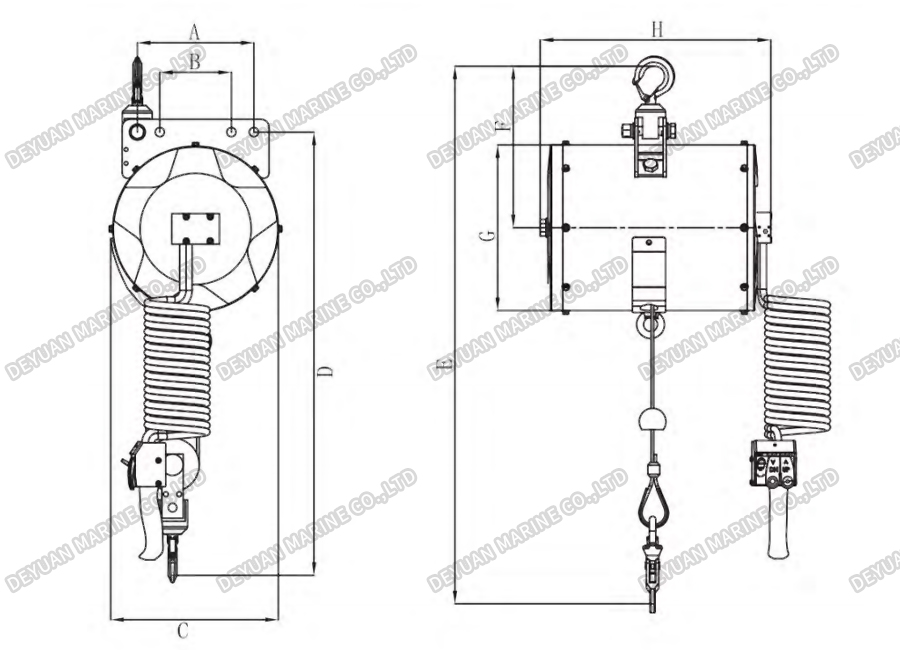

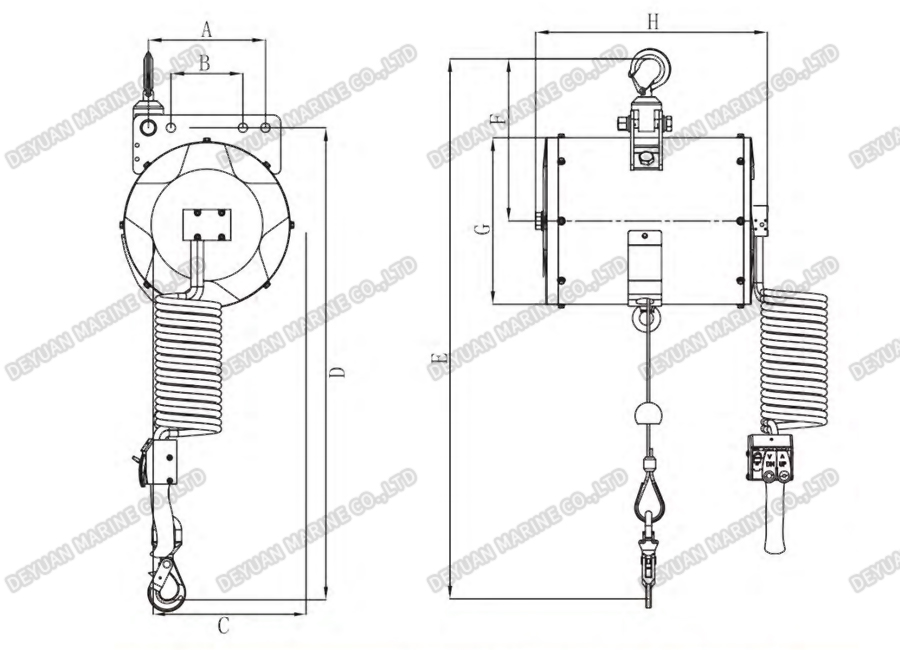

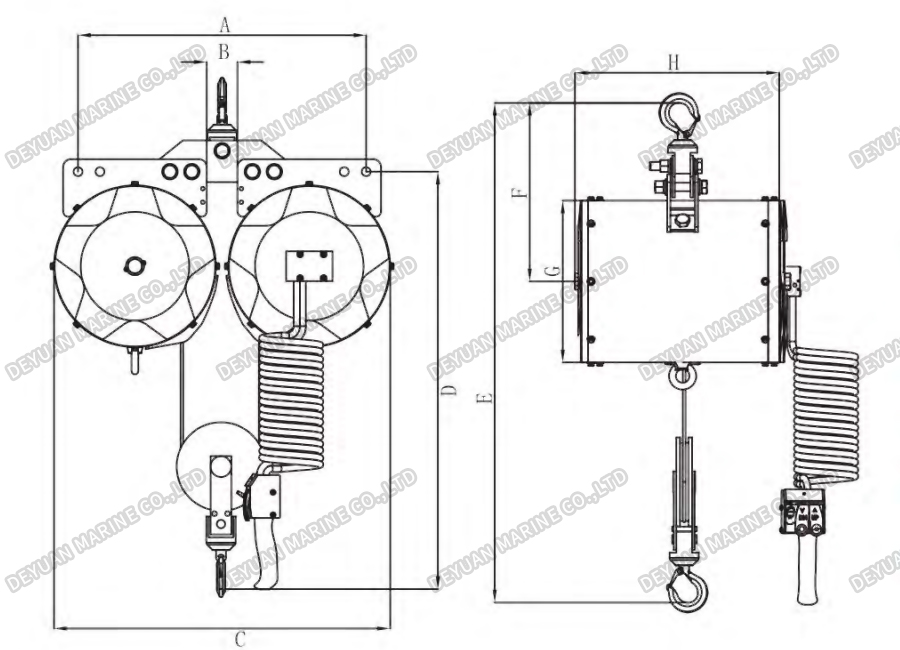

Size Reference Table 1:
| Single Strand Wire Rope Air Balancer | ||||||||
| Model | A | B | C | D | E | F | G | H |
| GTB-100-18 | 154 | 108 | 171 | 480 | 589 | 212 | 160 | 396 |
| GTB-100-20 | 180 | 114 | 228 | 500 | 609 | 242 | 218 | 396 |
| GTB-100-28 | 182 | 114 | 273 | 575 | 684 | 264 | 260 | 397 |
| GTB-160-20 | 182 | 114 | 273 | 575 | 684 | 264 | 260 | 397 |
| GTB-225-20 | 218 | 134 | 320 | 615 | 724 | 289 | 309 | 406 |
| GTB-280-20 | 218 | 134 | 365 | 690 | 799 | 326 | 368 | 406 |
Size Reference Table 2:
| Wire Rope Air Balancer with Pulley Block | ||||||||
| Model | A | B | C | D | E | F | G | H |
| GTB-DB316-20 | 182 | 114 | 273 | 695 | 805 | 264 | 260 | 397 |
| GTB-DB456-20 | 218 | 134 | 320 | 745 | 855 | 289 | 309 | 406 |
| GTB-DB560-20 | 218 | 134 | 365 | 809 | 920 | 326 | 368 | 406 |

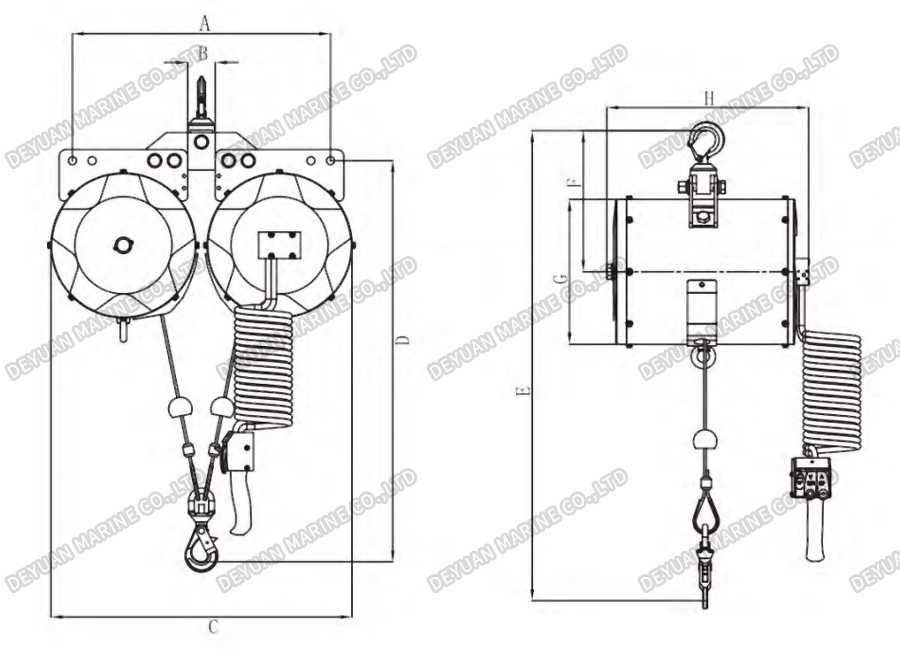

Size Reference Table 3:
| Parallel Wire Rope Air Balancer | ||||||||
| Model | A | B | C | D | E | F | G | H |
| GTB-DB316-20 | 486 | 64 | 570 | 575 | 684 | 282 | 260 | 406 |
| GTB-DB456-20 | 571 | 93 | 670 | 615 | 724 | 289 | 309 | 406 |
| GTB-DB560-20 | 630 | 79 | 756 | 690 | 799 | 326 | 368 | 406 |
Size Reference Table 4:
| Parallel Wire Rope Air Balancer with Pulley Block | ||||||||
| Model | A | B | C | D | E | F | G | H |
| GTB-MB630-20 | 486 | 64 | 570 | 695 | 805 | 282 | 260 | 406 |
| GTB-MB900-20 | 571 | 93 | 670 | 745 | 855 | 289 | 309 | 406 |
| GTB-MB1000-20 | 630 | 79 | 756 | 809 | 920 | 326 | 368 | 406 |
Air Balancer Performance Features:
1.Safety — Powered by compressed air with spark-free operation.
*Equipped with air-cutoff protection to prevent load dropping even in the event of sudden air supply interruption.
*Features overload protection — cannot lift loads exceeding rated capacity.
Built-in centrifugal braking function prevents sudden rapid upward movement caused by improper operation.
2.High Efficiency — Fast lifting and lowering speeds, up to 1 m/s.
Infinitely variable speed control allows free adjustment of lifting speed according to the load weight.
3.Precision — Self-adaptive "floating" function creates a "weightless" state when lifting components, enabling effortless and precise load positioning for power-assisted assembly.
4.Energy Saving — Extremely low air consumption, approximately 0.21 m³/h per working cycle on average — only 1/50 of the air consumption of a pneumatic hoist.
Clean, oil-free operation with only pre-lubricated internal components required for long-term use.Compact size and low noise.
