Product Description

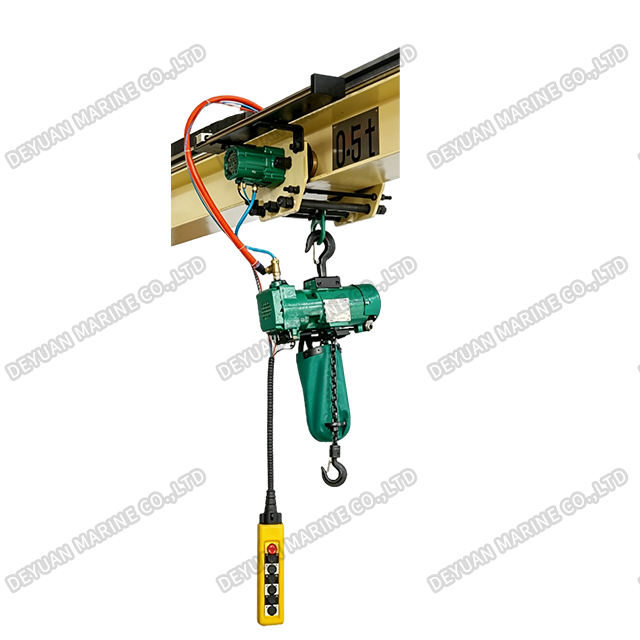

JMY Air Hoists Trolley Series (0.125~2t)
Product Introduction:
The JMY Air Hoists Trolley Series (0.125–2t) is a versatile and flexible pneumatic lifting solution that combines the safety of air-powered hoisting with the mobility of a trolley-mounted design. With a lifting capacity range of 0.125 to 2 tons (125 kg to 2000 kg), this series is specifically engineered for applications requiring horizontal load movement along overhead tracks, offering extended workspace coverage beyond a single fixed point.
Key Advantages:
*Suitable for complex and hazardous working environments
*Smooth operation with minimal impact; capable of starting under full load
*Infinitely variable speed control for precise positioning
*Overload protection and air-cut (loss of air) protection
*Safe and reliable braking system
*Anti-climbing feature for smooth curved-track travel
*Low failure rate and extended service life

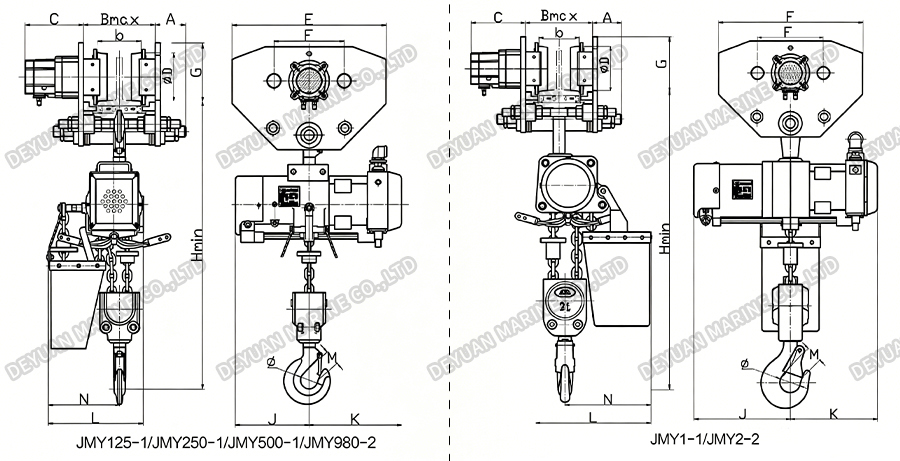

Outline Dimensions :
| Model | JMY125-1 | JMY250-1 | JMY500-1 | JMY980-2 | JMY1-1 | JMY2-2 | |
| b Track Width Range | mm | 80~116 | |||||
| Minimum Track Turning Radius | mm | ≤1000 | |||||
| A | mm | 48 | |||||
| Bmax | mm | 166 | |||||
| C | mm | 160 | |||||
| ΦD | mm | 90 | |||||
| E | mm | 320 | |||||
| F | mm | 154 | |||||
| G | mm | 120 | |||||
| Hmin | mm | 450 | 470 | 565 | |||
| J | mm | 160 | 225 | ||||
| K | mm | 203 | |||||
| L | mm | 210 | 268 | ||||
| N | mm | 173 | 156 | 200 | |||
| M | mm | 27 | 32 | 38 | |||
| Φ | mm | 34 | 40 | 48 | |||
Technical Parameters:
| Model | JMY125-1 | JMY250-1 | JMY500-1 | JMY980-2 | JMY1-1 | JMY2-2 | ||
| Duty Classification | M3 | |||||||
| Lifting Capacity | t | 0.125 | 0.25 | 0.5 | 0.98 | 1 | 2 | |
| Working Pressure | bar(kg/cm²) | 6 | ||||||
| Hoist Mechanism | Lifting Height | m | 3 | |||||
| Number of Chain Falls | 1 | 2 | 1 | 2 | ||||
| Motor Output Power | kw | 0.75 | ||||||
| Full-load Lifting Speed | m/min | 20 | 15 | 10 | 5 | 4 | 2 | |
| Full-load Lowering Speed | m/min | 34 | 30 | 20 | 10 | 9 | 4.5 | |
| Air Consumption | m³/min | 1 | 1.3 | 1.5 | ||||
| Air Inlet Connection | in | Rc1/2 | ||||||
| Air Hose Size (I.D.) | mm | 12 | ||||||
| Chain Size | mm | 6×18 | 7×21 | |||||
| Control Hose Length | m | 3 | ||||||
| Full-load Lifting Noise Level | db | 76 | 77 | |||||
| Full-load Lowering Noise Level | db | 79 | ||||||
| Trolley Travel Mechanism | Motor Output Power | kw | 0.25 | |||||
| Full-load Travel Speed | m/min | 8~9 | ||||||
| Air Consumption | m³/min | 0.30 | 0.45 | |||||
| Air Inlet Connection | in | Rcl/4 | ||||||
| Air Hose Size (I.D.) | mm | 8 | ||||||
| Trolley Weight | kg | 28 | ||||||
| Total Weight | kg | 48 | 62 | |||||
| Notes: 1.The control hose length is configured based on the standard lifting height of 3m. 2.The total weight is calculated based on a lifting height of 3m. 3.For details or any special requirements, please contact our sales engineers. | ||||||||
Typical Applications:
*Overhead track systems in assembly lines
*Multi-station material feeding in workshops
*Paint spraying facilities (explosion-proof requirement)
*Chemical and petrochemical plants
*Warehouse goods transfer along track networks
*Mining and underground operations
*Food processing facilities (hygienic, oil-free options available)
*Jib crane and light rail systems integration
